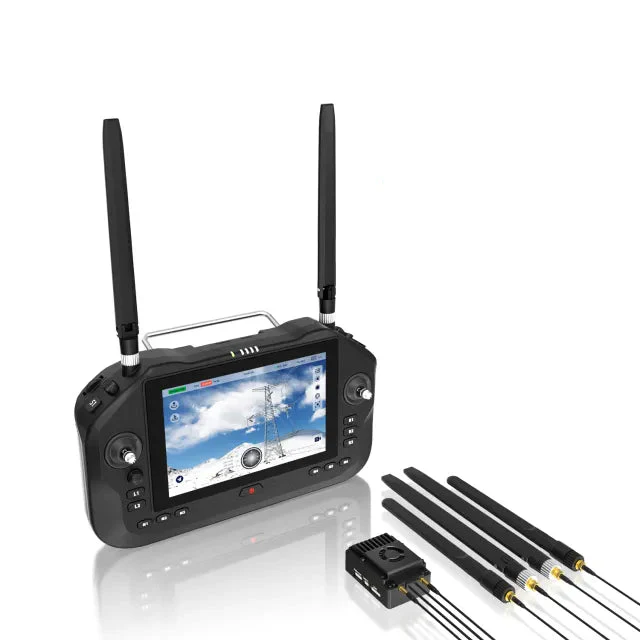

SIYI UniRC 7 Pro Handheld Ground Station
The SIYI UniRC 7 Pro is a high-performance handheld ground station designed for professional UAV, UGV, and USV applications. It features a bright 7-inch 1080p touchscreen, dual-band transmission (2.4 GHz and 5.8 GHz), and supports ultra-long-range digital video and data communication up to 40 km. Powered by Android 13 with 4 GB RAM and 64 GB of internal storage, it offers smooth operation and wide compatibility with various systems. The controller also includes AES encrypted communication, dual internal antennas, sub joystick control, and a quick-release battery system providing up to 11 hours of field use. Fast 30W PD charging ensures minimal downtime between missions.
Take Absolute Control Over Every Mission and Increase Operational Efficiency in The Field With SIYI UniRC 7 Pro Handheld Ground Station.
A New Era of Handheld Ground Stations
The SIYI UniRC 7 Pro Handheld Ground Station combines a display, radio controller, and communication system in one ergonomic unit. It is a practical command center built for field operations where fast setup, stable handling, and full mission control matter most.
Dual-Operator Control for Complex Missions
The SIYI UniRC 7 Pro Handheld Ground Station is designed to support advanced mission workflows where flight control and payload operation can be managed separately. This setup is especially useful for professional tasks such as inspections, surveillance, mapping, and operations with cameras, gimbals, or other mission equipment.
7-inch HD Display with High Brightness
The large 7-inch HD touchscreen provides a clear view of live video, maps, and flight parameters during outdoor missions. Its high brightness improves visibility in strong daylight, while touch control helps the operator react quickly to changing mission conditions.
Precise Sub Joystick for Extra Control
The additional sub joystick expands control options for accessories such as gimbals, cameras, searchlights, and other mission payloads. It allows the operator to manage extra functions comfortably without interrupting primary drone control.
Long Battery Life for Demanding Missions
The efficient power system is designed for long field operations and heavy use. Fast charging, quick battery access, and charging protection help maintain continuous operation during extended professional missions.

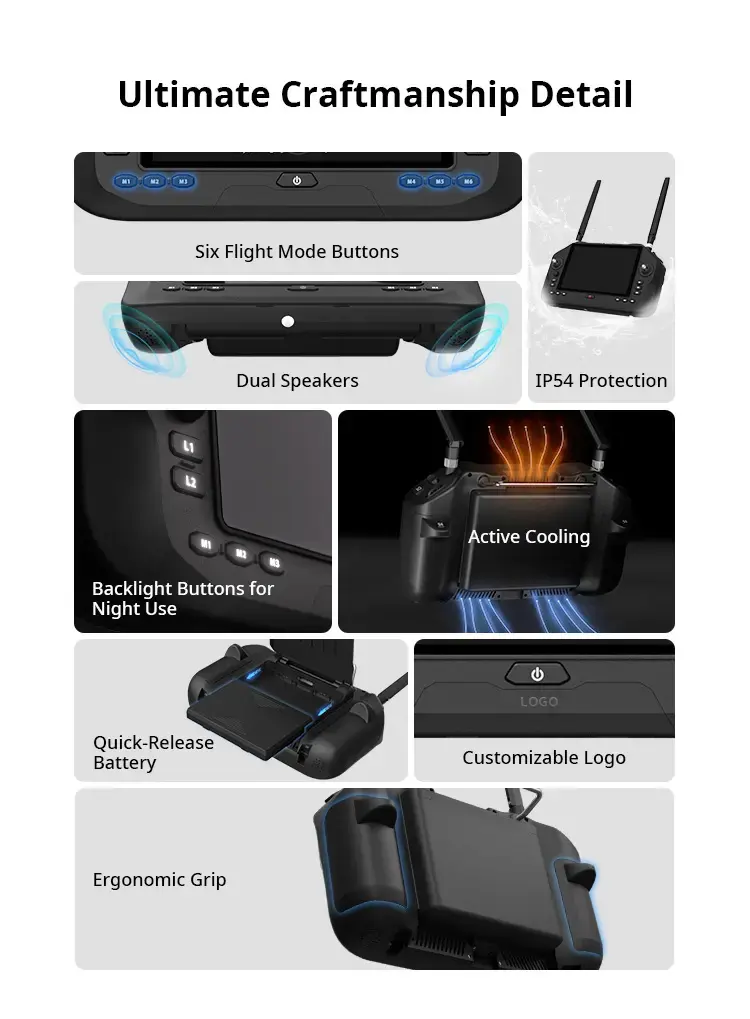

Ergonomic design for field work
The controller body is shaped for confident handling during long operating sessions. The layout of the sticks, screen, and function buttons helps the operator stay focused on the mission instead of fighting with the equipment.

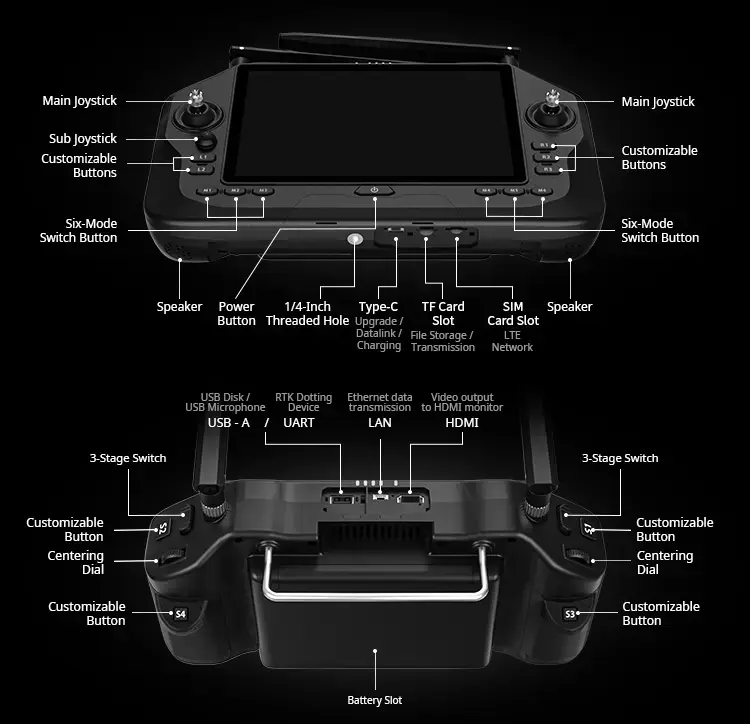

SIYI UniRC 7 Pro Handheld Ground Station Control Layout, Ports, and Interfaces
Expand the System With HDMI Integration, AI Tracking and Imaging
Pair the ground station with a stabilized camera, an intelligent tracking module, or an HDMI converter for external video sources. This selection demonstrates the broader integration potential of UAV, UGV, USV, and robotic platforms without presenting several similar cameras.
SIYI Air Unit Recording HDMI Input Converter
SIYI AI Tracking Module II 10T
Camera SIYI ZR30
Frequently asked questions -
SIYI UniRC 7 Pro Handheld Ground Station
SIYI UniRC 7 Pro Handheld Ground Station is suitable for professional drones, UGVs, USVs, and mobile robots. It can support inspection, mapping, agriculture, surveillance, emergency response, security, marine operations, and industrial automation systems.
SIYI UniRC 7 Pro Handheld Ground Station provides a manufacturer-declared communication range of up to 40 km. This figure assumes a correctly configured system operating in open conditions; actual range depends on antennas, interference, terrain, and local regulations.
SIYI UniRC 7 Pro Handheld Ground Station can use UniGCS software, which supports the open MAVLink ecosystem, SIYI products, and third-party commercial systems. This allows integration with compatible autopilots based on ArduPilot or PX4.
Yes. SIYI UniRC 7 Pro Handheld Ground Station supports one 4K 30 fps video stream or two 1080p 60 fps streams. Its built-in display has a 1920 x 1200 resolution, while the HDMI port can output video to an additional monitor.
Yes. SIYI UniRC 7 Pro Handheld Ground Station features a 1600-nit display with adaptive brightness, keeping video and maps visible outdoors. Its IP54 protection rating further supports field operation.
Yes. SIYI UniRC 7 Pro Handheld Ground Station supports two ground units working with one air unit. One operator can control the platform while the second operates a camera, gimbal, or mission payload using the same or a separate video view.
SIYI UniRC 7 Pro Handheld Ground Station Specifications
Scrreen Resolution | 1920x1200 |
Transmission Frequency | 2.4 & 5 GHz |
LAN Port | Yes |
HDMI Port | Yes |

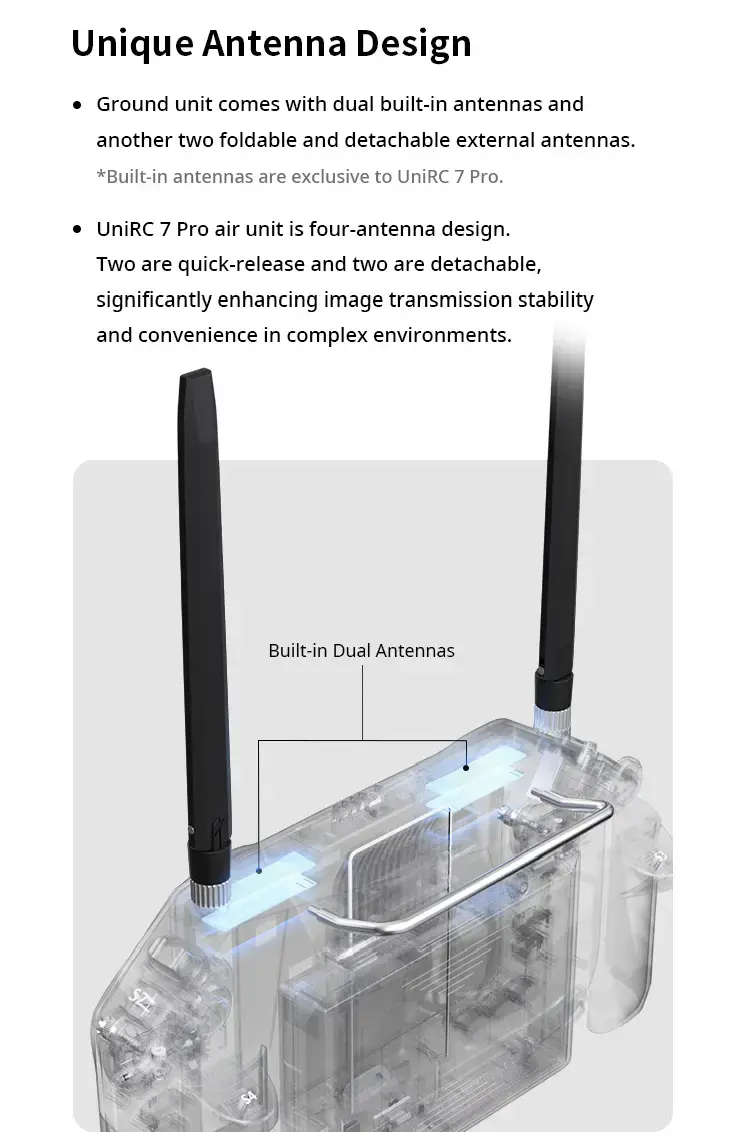

Ground Unit Antennas | 2x External & 2x Internal |
USB-A Port | Functions as UART (for RTK dotting) and as USB for USB Disks / Microphones |
Battery Life | 8 hours |

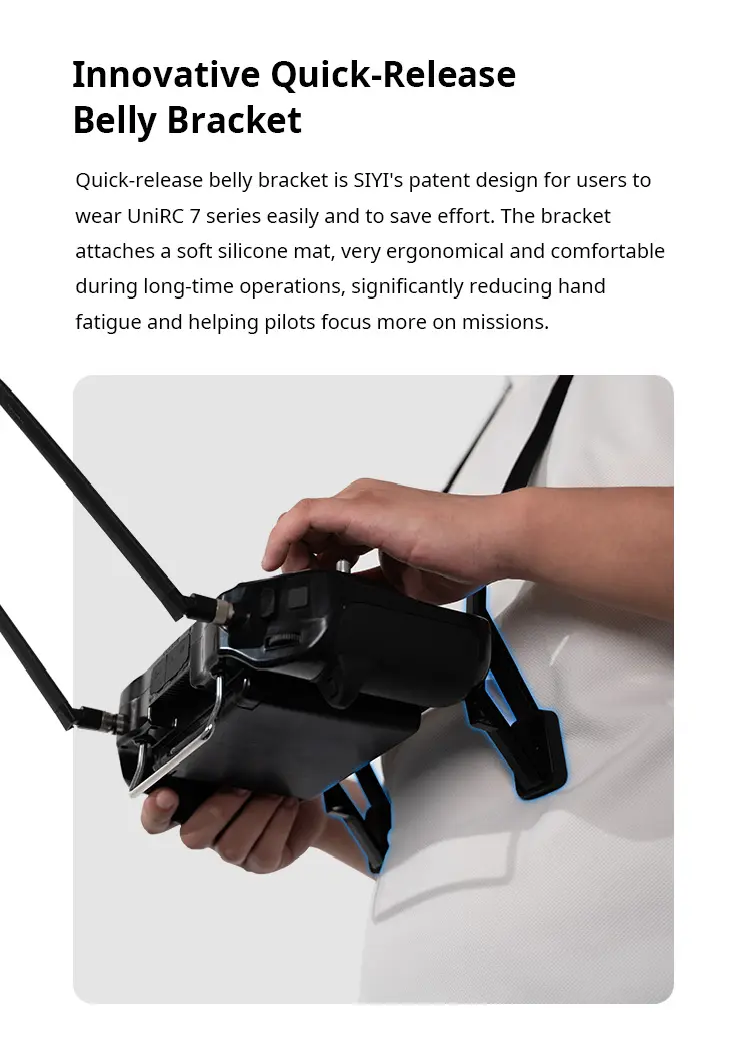

Quick-Release Belly Bracket | Shoulder Strap |
Air Unit Dimensions | 63mm x 40.5mm x 26.5mm |
Air Unit Antennas | 2x Quick-Release MMCX & 2x Detachable IPEX2 |
Air Unit Weight (Excl. Antennas) | Approx: 115g |
SIYI UniRC 7 Pro Handheld Ground Station Package Includes
- 1x SIYI UniRC 7 Pro Handheld Ground Station
- 1x Set of Transmission and Video Antennas
- 1x USB Cable
