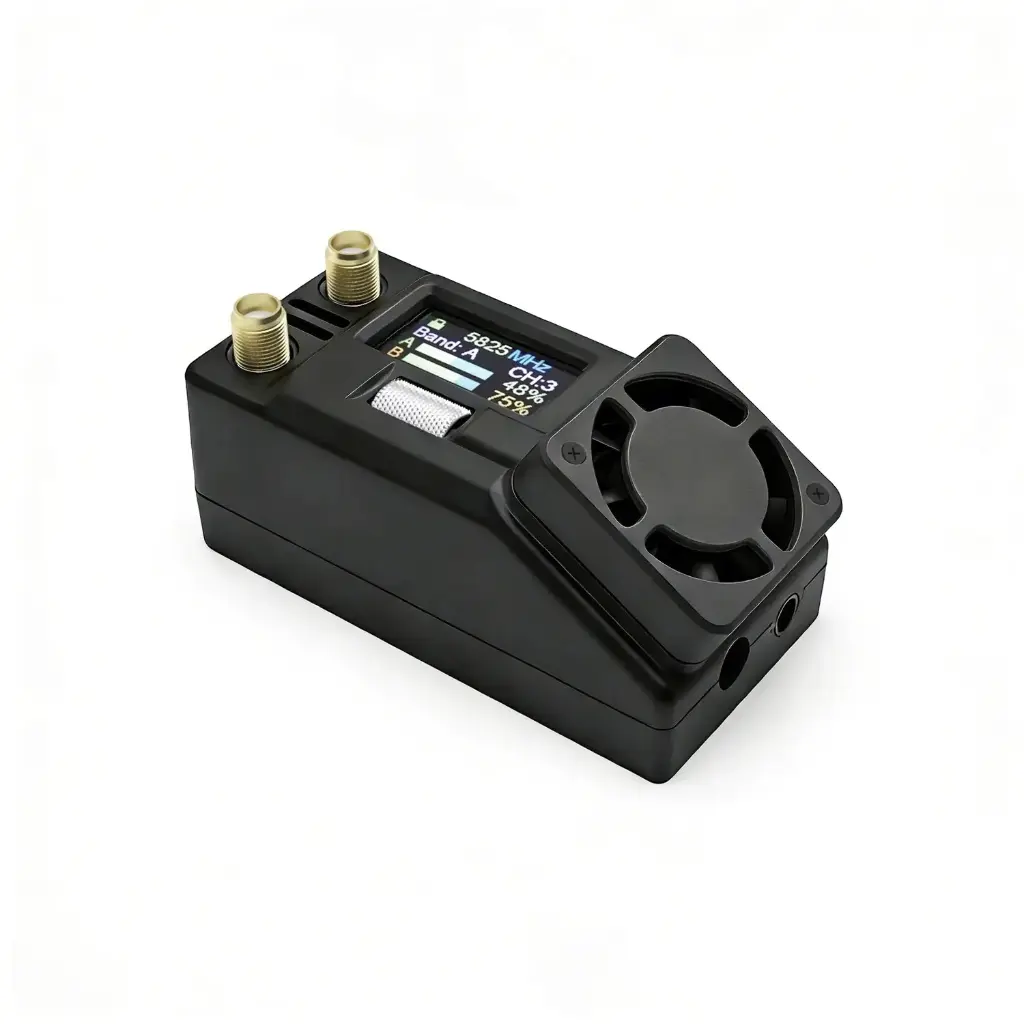

SKYZONE SteadyView X 5.8GHz Receiver Module
Stable FPV Signal Reception with SKYZONE SteadyView X 5.8GHz Receiver Module

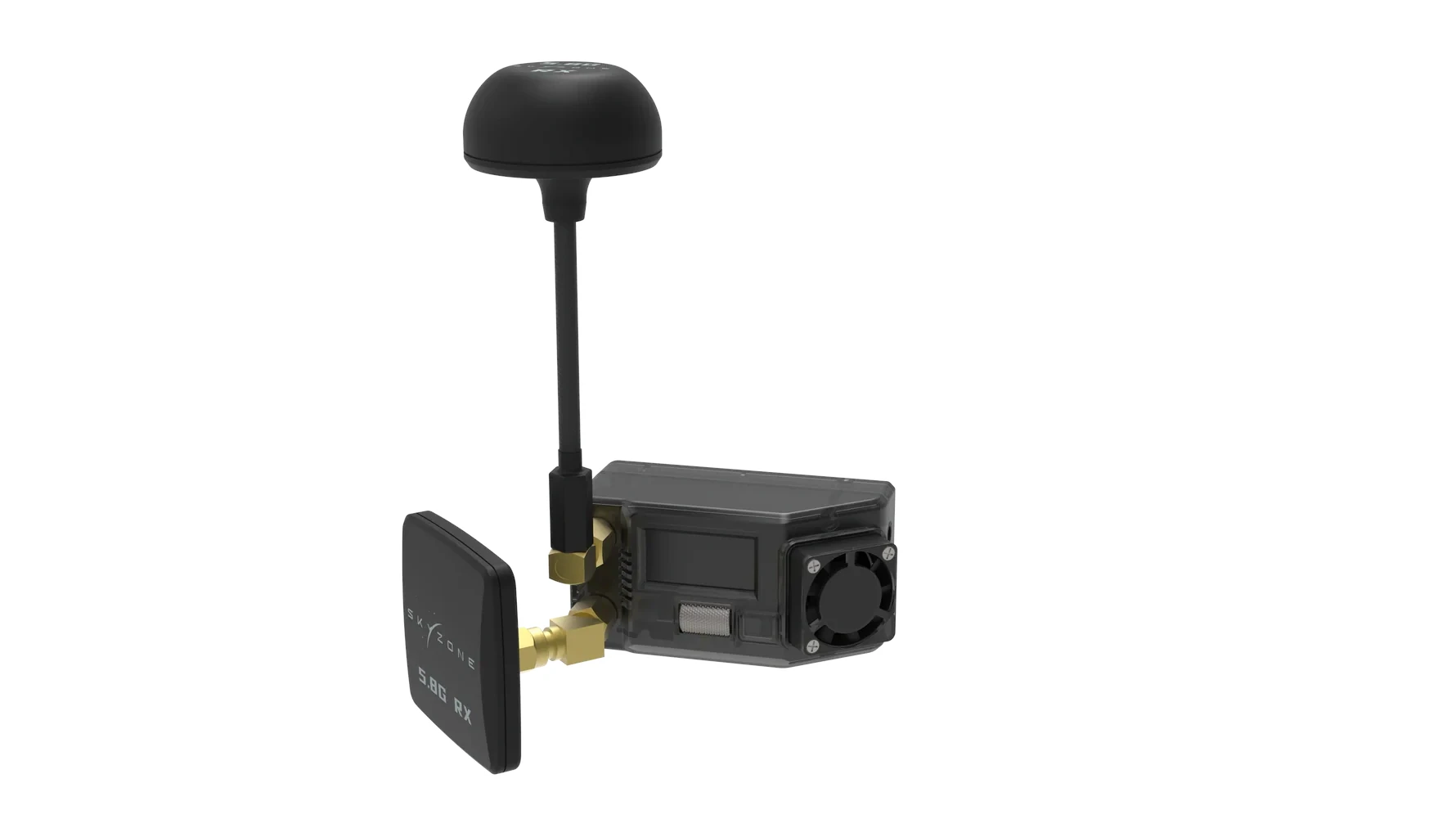

The SKYZONE SteadyView X 5.8GHz Receiver Module is an advanced FPV receiver designed to deliver stable and clear video transmission. Using SteadyView technology, the module merges signals from two antennas into a single, stable image, helping reduce image tearing and rolling in challenging multi-path environments. The receiver features a built-in IPS screen and a convenient shuttle wheel for easy configuration. It also supports a ground station setup, allowing it to work with monitors or FPV goggles equipped with an AV input. In addition, the module includes a built-in ELRS Backpack, enabling synchronization between VTX and VRX using ELRS transmitters and Lua scripts, while supporting diversity reception.
Shuttle Wheel Control
The integrated shuttle wheel control allows quick and convenient navigation through the receiver settings. Its CNC design provides precise control and makes configuration simple and intuitive.
Narrow Band Signal Filter
The SKYZONE SteadyView X 5.8GHz Receiver Module uses a dedicated narrow-band filter to reduce interference and improve signal stability. This helps maintain a clearer FPV image even in environments with heavy radio traffic.
Colorful IPS Screen
The receiver features a 0.96-inch color IPS screen that allows users to easily check settings and operating parameters. The display remains clear and readable even in bright lighting conditions.
Ground Station Kit for Flexible FPV Setup
The SKYZONE SteadyView X 5.8GHz Receiver Module can also be used as part of a ground station thanks to the included Ground Station Kit. This setup allows the receiver to be connected to monitors or FPV goggles equipped with an AV input, creating a convenient station for viewing the drone’s video feed. It is particularly useful for testing equipment, demonstrations, or situations where multiple people want to monitor the live video signal during flight.
Stable Video with SteadyView Technology
SteadyView technology used in the SKYZONE SteadyView X 5.8GHz Receiver Module merges signals from two antennas into a single stable video feed. This helps reduce common analog FPV issues such as image tearing or rolling caused by multi-path interference. Thanks to advanced signal processing, the video remains smoother and clearer, providing a more reliable and comfortable viewing experience during flight.
Frequently Asked Questions - SKYZONE SteadyView X 5.8GHz Receiver Module
The receiver uses advanced signal fusion technology that merges two incoming signals into one stable video stream. This helps reduce image tearing and rolling, especially in environments with signal reflections or interference.
Yes. The module supports diversity reception and multiple MIX modes that combine signals from two receivers to improve video stability and compatibility with different cameras.
Yes. Thanks to the included ground station kit and AV output, the receiver can be connected not only to compatible goggles but also to monitors or other devices with an AV input.
The receiver supports a wide input voltage range from 2S to 6S LiPo batteries and can also be powered or updated via USB-C.
Yes. The T-Motor Velox Victory V3008 Cinematic FPV Drone Motor 1350KV Black uses a standard mounting pattern commonly used in larger FPV drones. It features four mounting holes with a 19×19 mm pattern, making it compatible with most frames designed for 7–8 inch FPV builds.
SKYZONE SteadyView X 5.8GHz Receiver Module Specifications
Frequency | 5.3–6 GHz, 6 Bands × 8 Channels |
Sensitivity | -98 dBm ±1 dBm |
Narrow-Band Filter | Yes |
Antenna Connectors | 2 × Standard SMA-K, 50 Ω |
Mode | Mix1, Mix2, Mix3, Diversity, Single RX |
Video Output | 1.0 Vp-p Typ. / 75 Ω |
Audio Output | No Audio Output |
Voltage | 6.5–26 V |
Consumption | 12 V Input: 240 mA Normal, 180 mA Single RX |
DC IN | Ø 5.5 mm / Pin 2.1 mm |
A/V Output | Ø 3.5 mm |
USB | Type-C, Firmware Update |
Screen | 0.96" Color LCD |
Viewing direction | ALL View |
Dimensions | 65(L) × 32(W) × 32(H) mm |
Weight | 49 g |

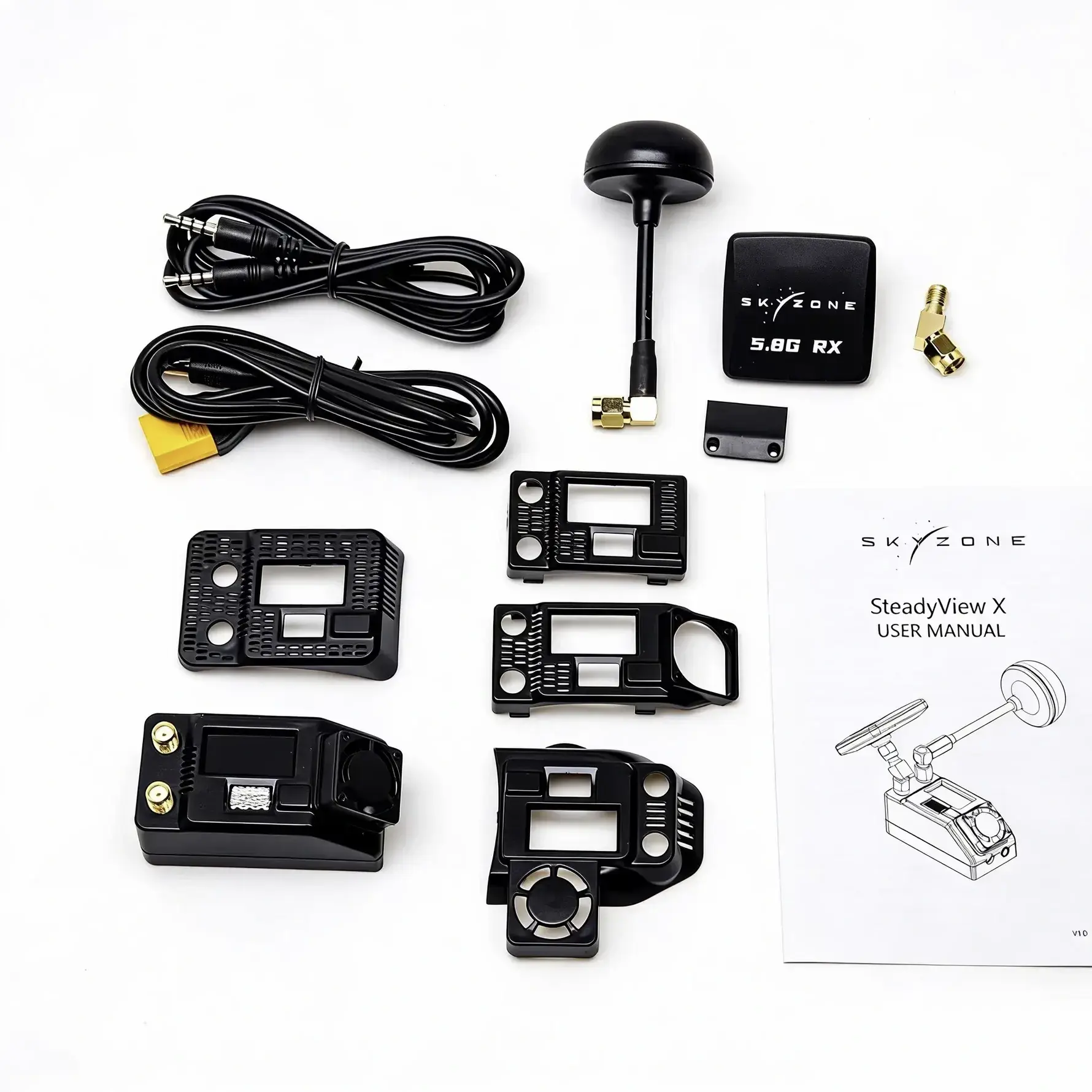

SKYZONE SteadyView X 5.8GHz Receiver Module Package Includes
- 1x SKYZONE SteadyView X 5.8GHz Receiver
- 1x Patch Antenna 5.8G
- 1x Omni Antenna 5.8G
- 1x SKYZONE SKY04X Module Cover
- 1x FATSHARK Module Cover
- 1x XT60-DC Cable 5.5*2.1
- 1x 3.5mm Video Cable 1.2m
- 1x User Manual
