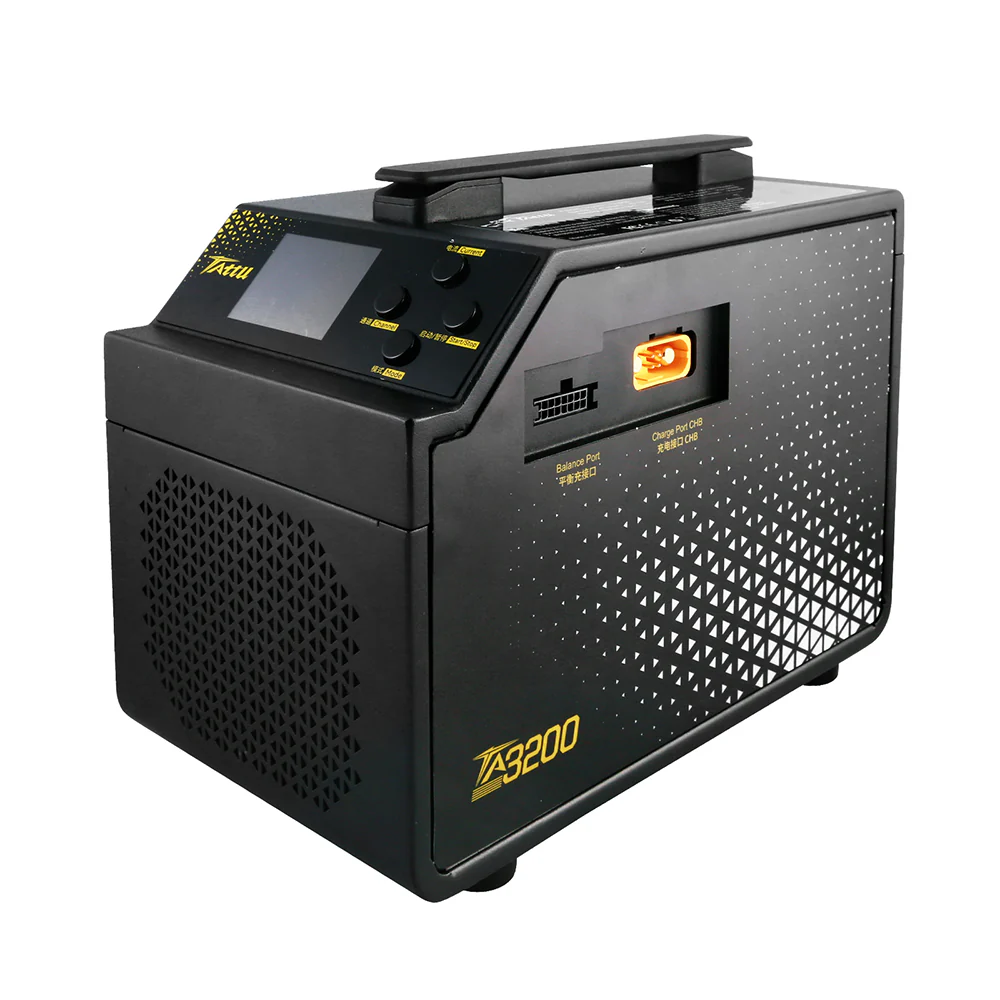

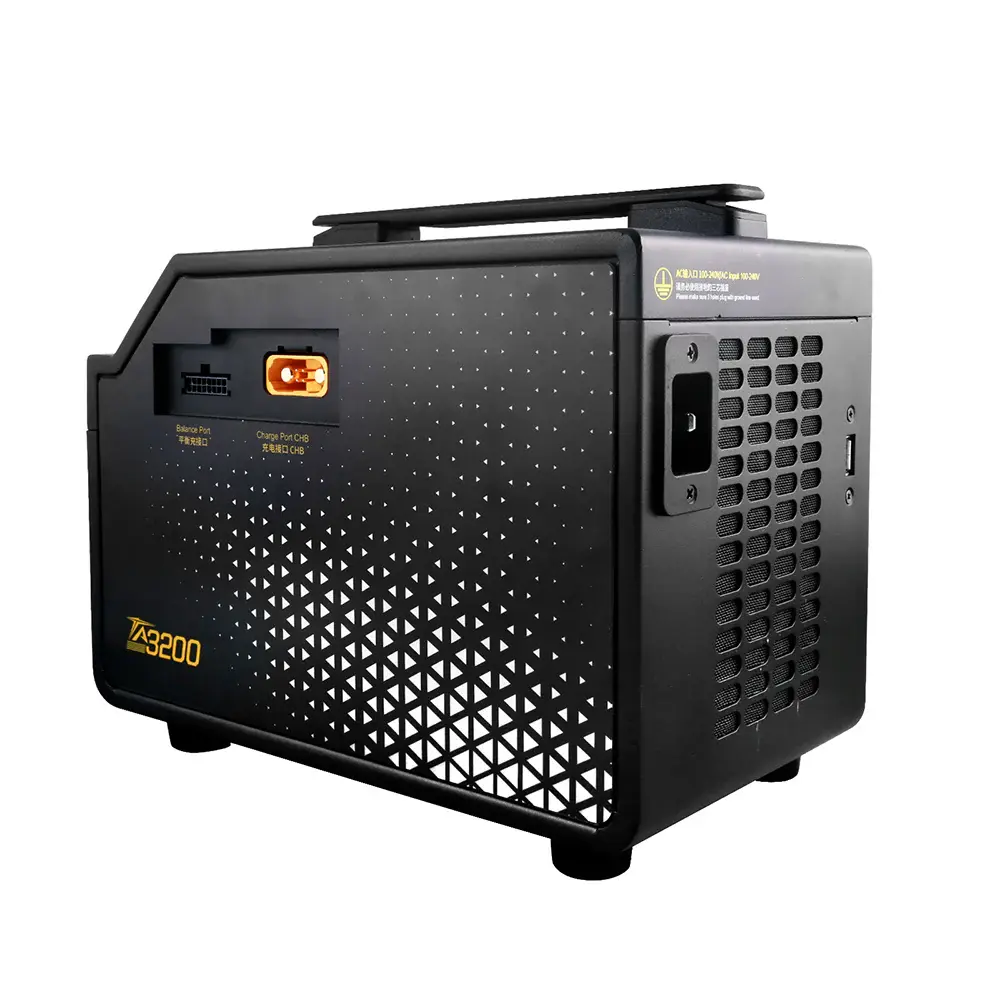

Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery
Intelligent Management for Large Battery Packs – Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery
The charger automatically reads information from compatible Tattu smart batteries, reducing the need for manual parameter configuration. Conventional LiPo packs can also be used after selecting the correct charging current and operating mode. Its display shows state of charge, battery voltage, charging current, process status, and real-time cell-voltage differences.

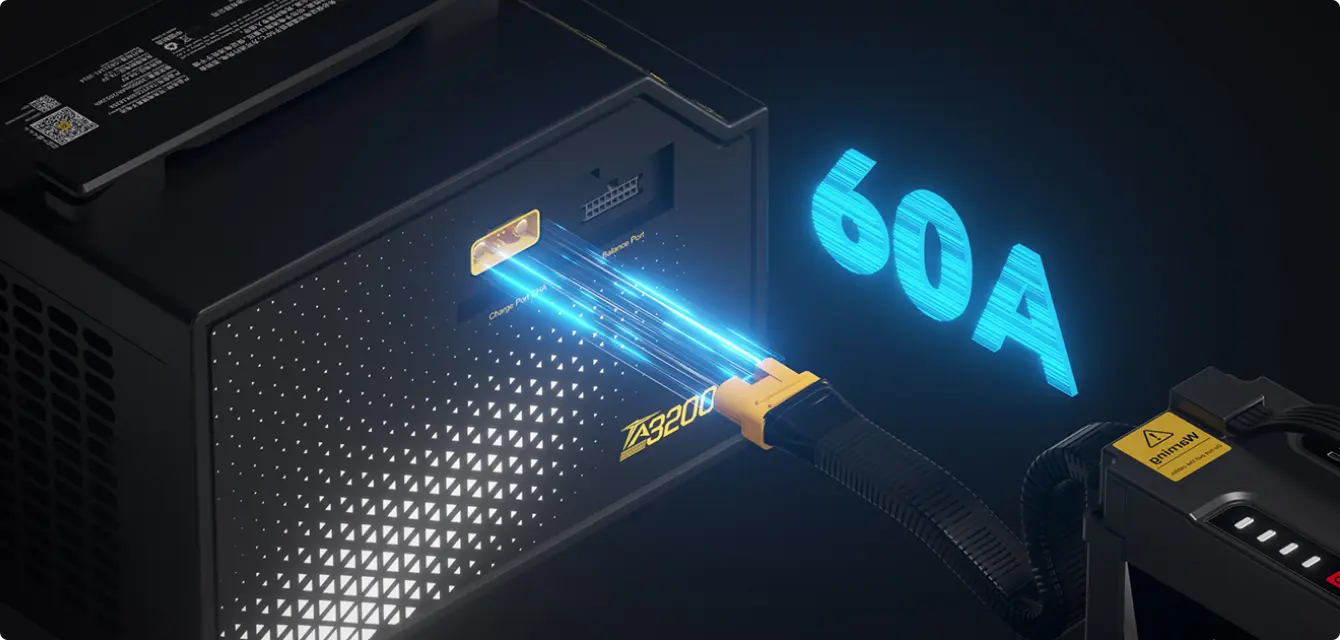

Up to 60 A for Reduced Downtime
A maximum charging current of 60 A and up to 3200 W of power help prepare large batteries used in agricultural, industrial, and high-energy UAV platforms. Full output is available with 220–240 V input; when powered from 100–110 V, the charger is limited to 1200 W and 40 A.

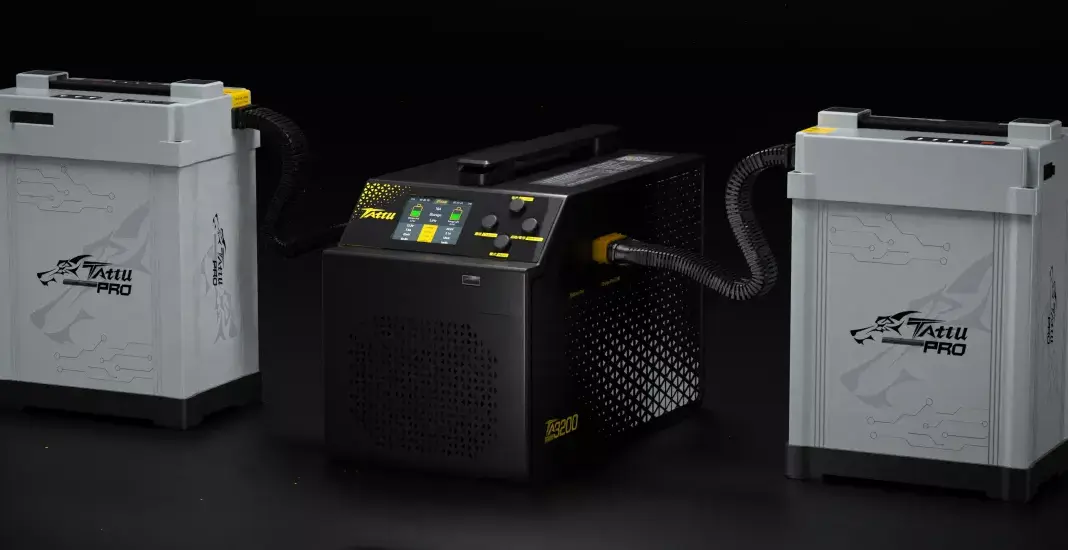

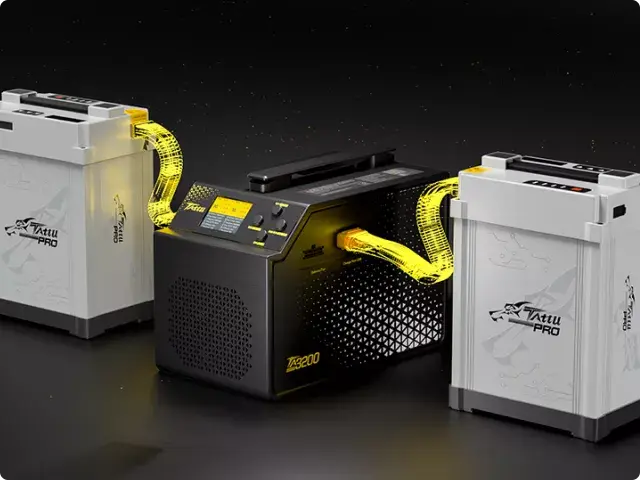

Dual Channels for Simultaneous Charging
Two charging channels allow two compatible batteries to be handled during the same session. This supports aircraft powered by paired battery packs and reduces waiting time when managing a larger inventory of UAV batteries.

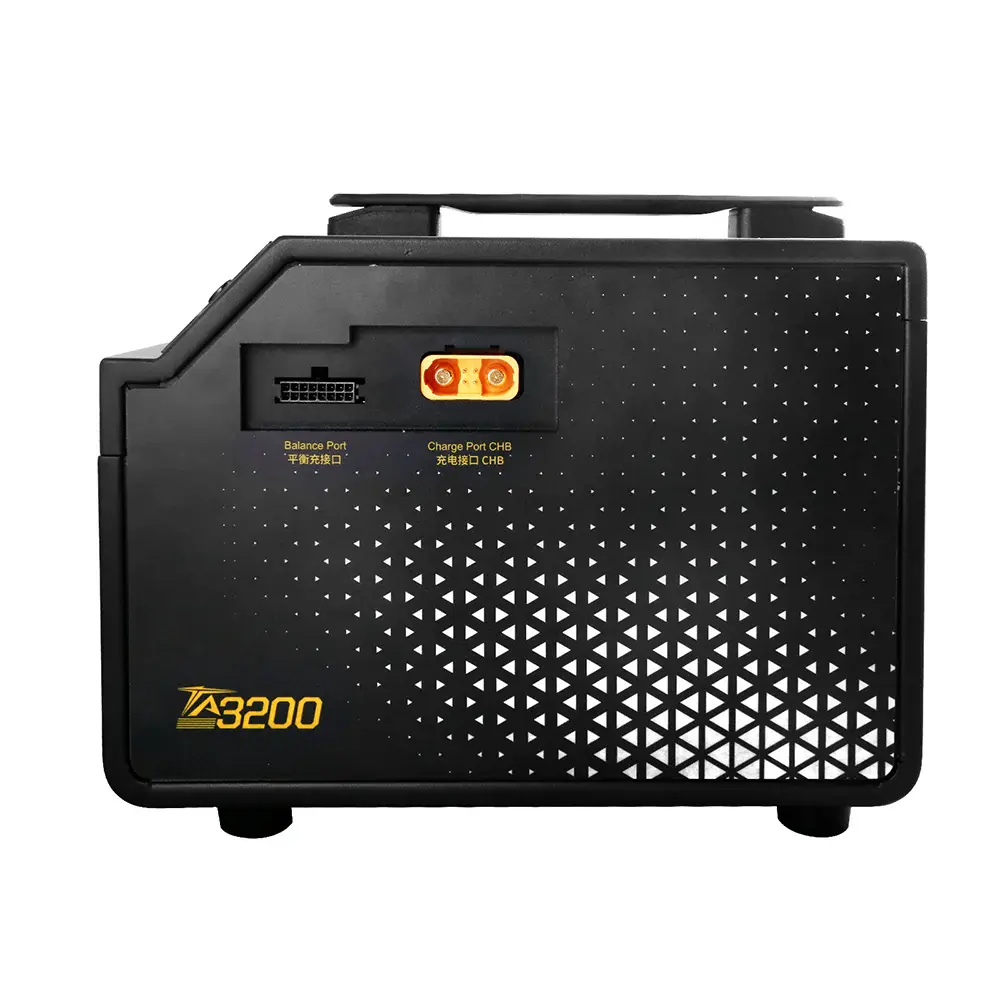

Rugged Construction for Field Operations
The sturdy enclosure protects internal components during transportation and frequent professional use, while the integrated handle makes the charger easier to carry. At approximately 6 kg, it can be moved between a workshop, service vehicle, and UAV operating site.

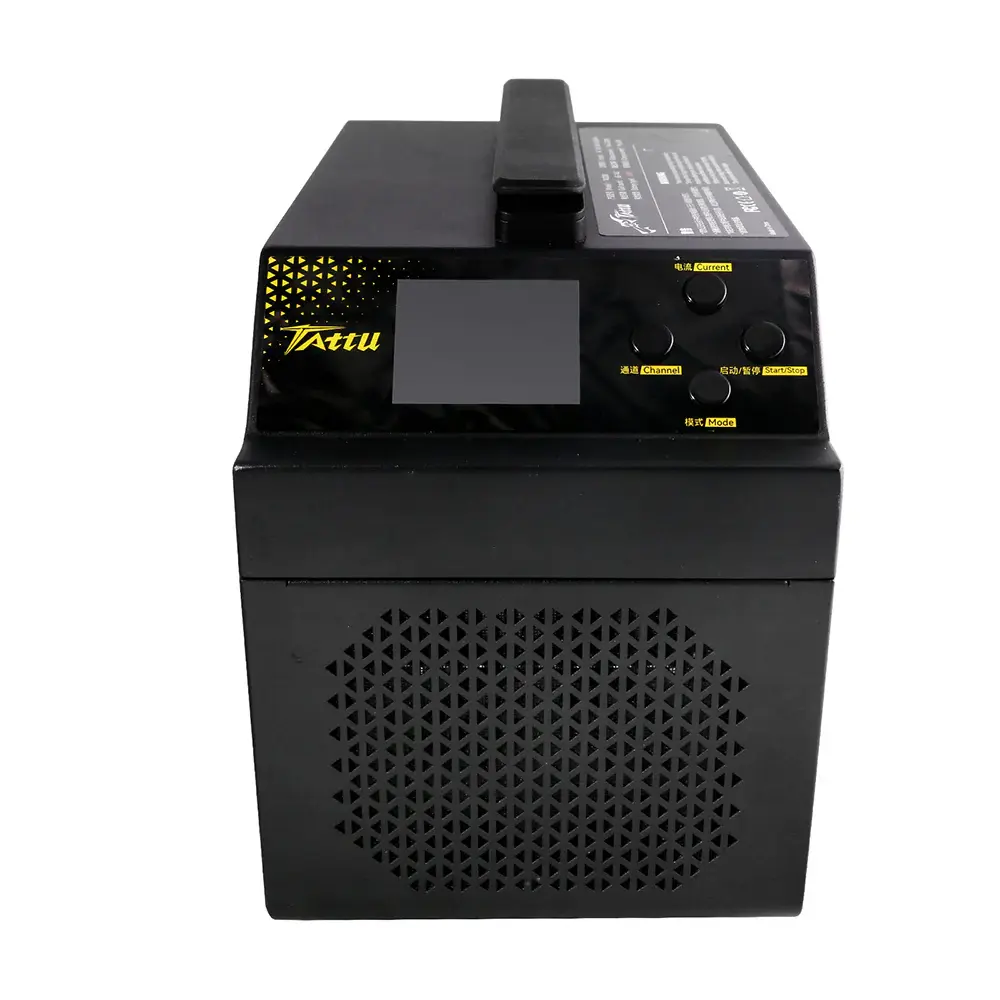

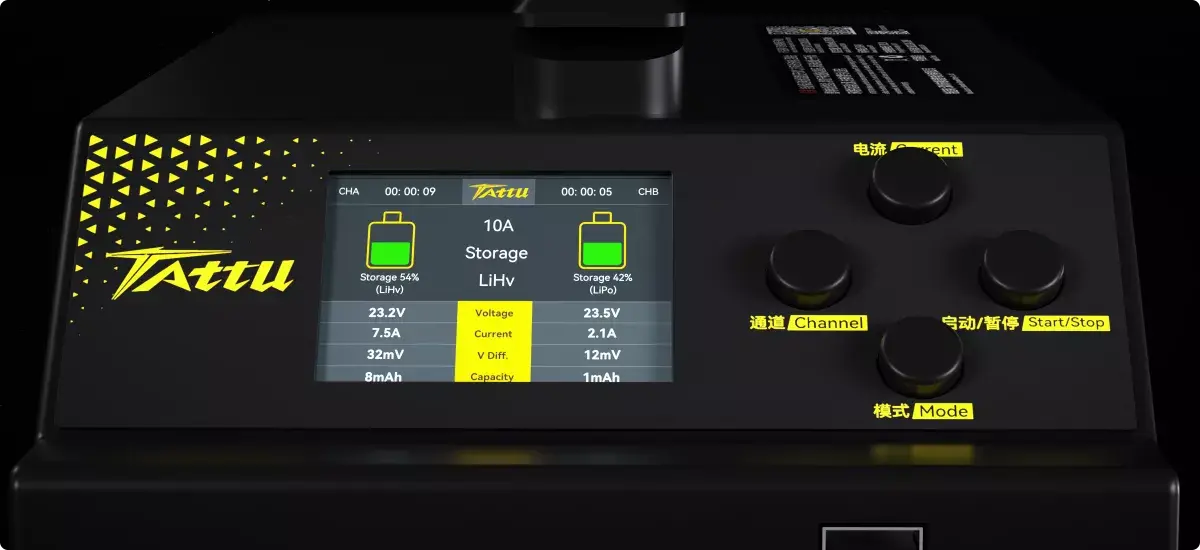

Clear Dual-Channel Monitoring
The control panel provides access to channel selection, operating mode, charging current, and start or stop commands. Its display shows state of charge, battery voltage, current, charging status, and cell-voltage differences for both connected packs.
Automatic Smart Battery Recognition
When a compatible Tattu smart battery is connected, the charger reads its information automatically and simplifies process setup. Conventional non-smart LiPo batteries are also supported but require manual current and mode selection.

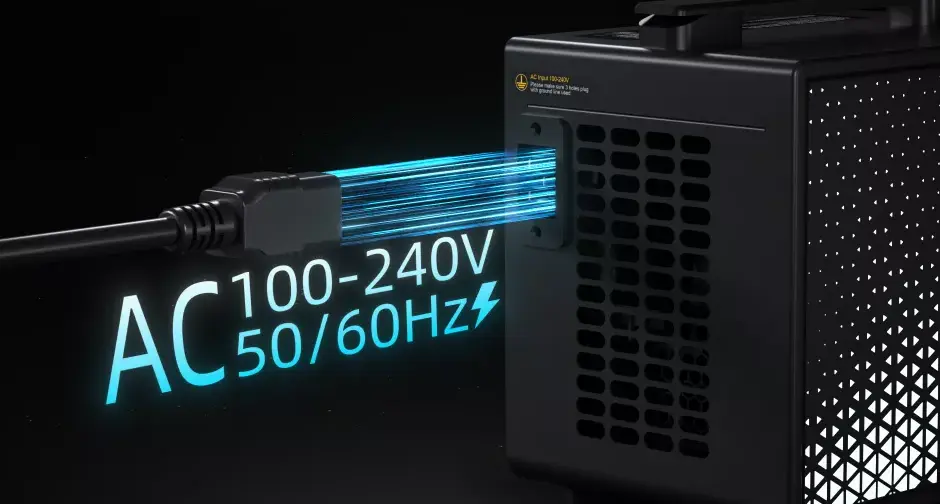

Universal 100–240 V AC Input
The wide input range supports 100–240 V, 50/60 Hz electrical systems. Maximum charging performance depends on the power source: 220–240 V provides up to 3200 W and 60 A, while 100–110 V provides up to 1200 W and 40 A.
Frequently asked questions -
Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery
Yes. It can charge standard 6S–14S LiPo packs used in mobile robots, UGV platforms, field equipment, custom electric mowers, boats, large RC models, airsoft installations and replicas, electric vehicles, and unmanned systems. Dual channels and up to 3200 W make it especially useful wherever large batteries need to be prepared quickly.
Yes. Its AC 100–240 V, 50/60 Hz input allows it to operate from a sufficiently powerful generator or portable power station. This makes it suitable for field-service teams, mobile workshops, RC events, industrial operations, and locations without direct access to the electrical grid.
Yes. Two charging channels can prepare two compatible packs at the same time, reducing turnaround time for machinery, robots, vehicles, boats, large RC models, and other systems powered by paired batteries.
The standard TA3200 version supports 6S–14S LiPo packs charged to 4.2 V per cell and compatible Tattu smart batteries. It can work with large soft packs regardless of whether they power a drone, robot, vehicle, industrial device, or specialist RC platform.
With a 220–240 V power source, it provides up to 3200 W and 60 A, helping reduce downtime between operating cycles. Actual charging time primarily depends on battery capacity and the selected charging current.
Yes. Storage mode prepares the battery for an extended period without use. The charger also provides up to 70 W of discharge power on each channel.
Yes. Its rugged enclosure, carrying handle, and active cooling support use at professional UAV operating sites. It must still be operated in a dry, ventilated area on a stable surface away from rain, heat, and flammable materials.
Recommended Power Stations for Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery
The charger supports AC 100–240 V input, allowing it to operate from a sufficiently powerful portable power station. The right model depends on the required charging speed, off-grid operating time, and how frequently the complete setup will be transported.
WARNING
Operate the charger on a flat, stable, and cool surface while maintaining at least 30 cm between the charger and connected batteries. Keep it away from rain, direct sunlight, heat sources, and flammable materials. Disconnect power immediately if an abnormal condition or warning appears.
Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery Specifications
Model | TA3200 |
Input Voltage | AC 100V - 240V |
Battery Type | LiPo |
Battery Cells | 6S - 14S Soft Pack or Tattu Smart Battery |
Charge Current | AC 110V / Max 40A AC 220V / Max 60A |
Charge Power | AC 110V / Max 1200W AC 220V / Max 3200W |
Discharge Power | Max 70W x2 |
Channel | 2 |
Output Plug | AS150UPB-M |
Operating Temperature | 0°C - 65°C |
Dimension | 276mm x 154mm x 216mm |
Weight | 6000g |
Function | Charge, Storage |

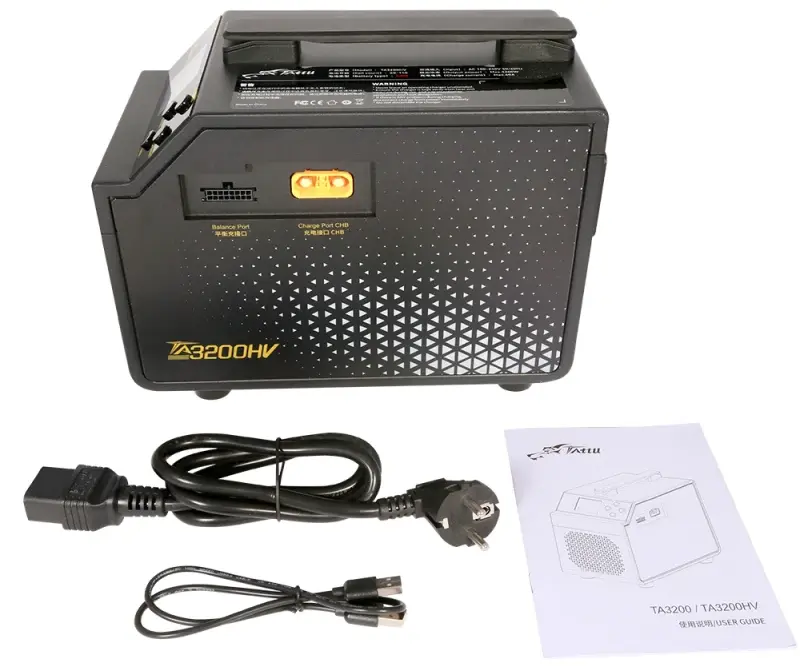

Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery Package Includes
- 1x Tattu TA3200 Dual-Channel Smart Charger for 6S-14S LiPo Battery
- 1x AC Power Cable
- 1x USB Firmware Update Cable
- 1x User Manual
