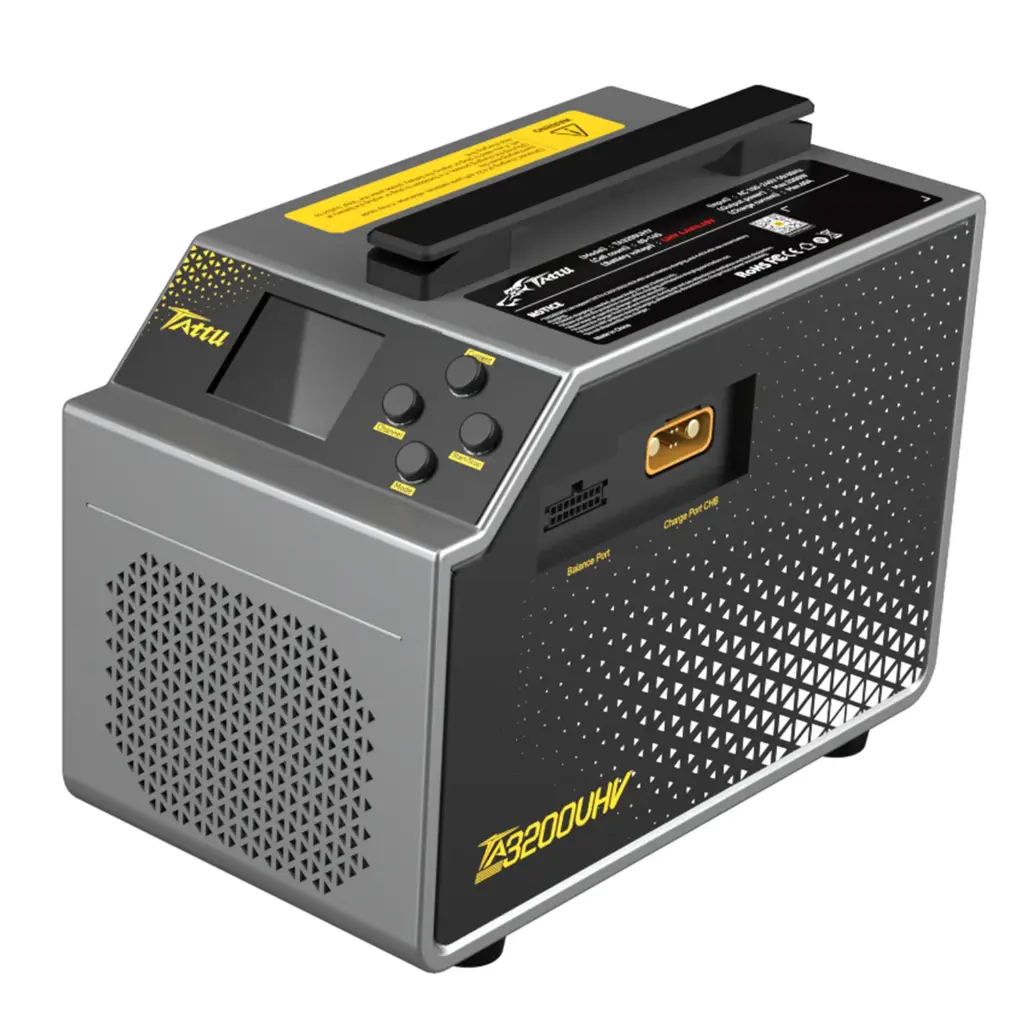

Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery
Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery – High-Power Charging for Large UHV Batteries
Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery is designed for rapid management of large UHV LiPo packs used in professional and industrial power systems. Two channels can charge two compatible batteries simultaneously, while maximum output of 3200 W and 60 A helps reduce downtime. Its rugged enclosure, active cooling, and universal AC input support both workshop and field operation.

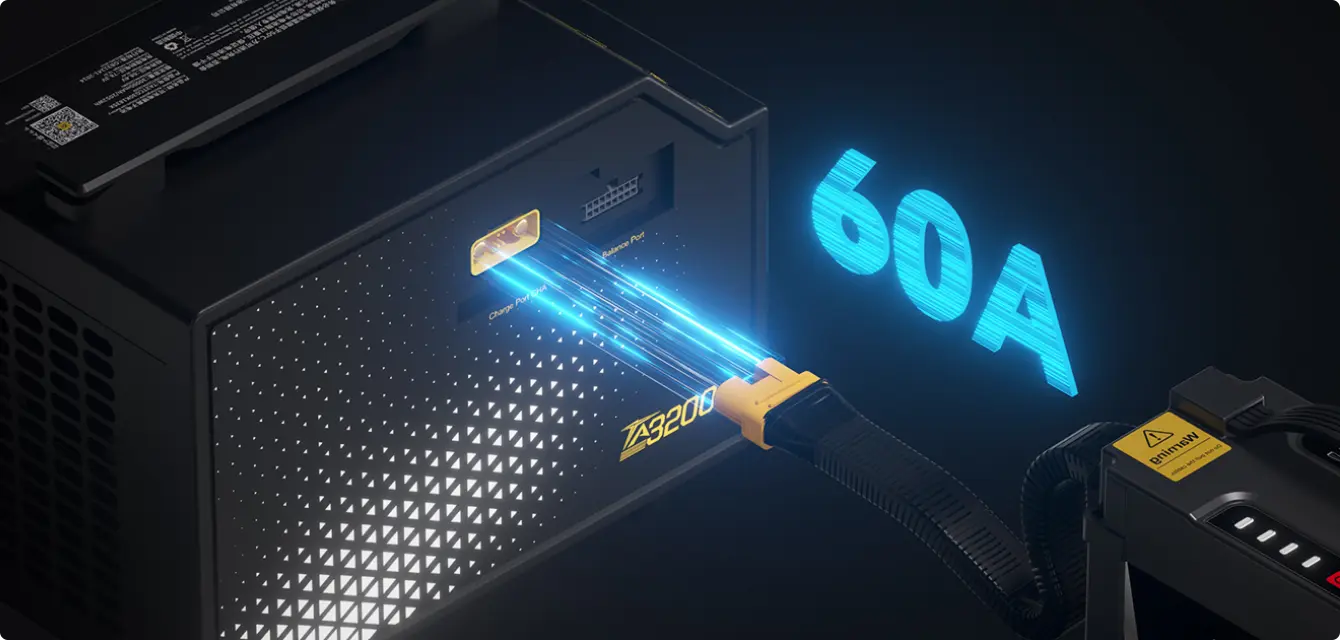

Charging Current up to 60 A
A maximum charging current of 60 A supports rapid preparation of large UHV battery packs. Its high output is well suited to professional power systems where reduced downtime and efficient management of high-capacity batteries are essential.

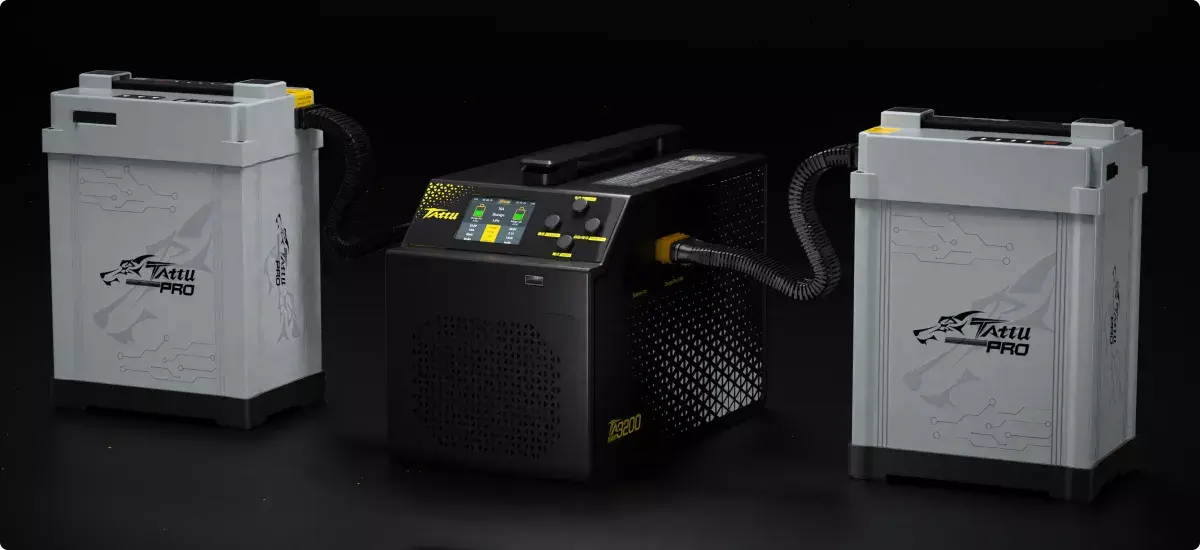

Dual-Channel Battery Charging
Two channels allow two compatible batteries to be charged simultaneously. This reduces preparation time for equipment powered by paired packs and makes it easier to manage a larger battery inventory.

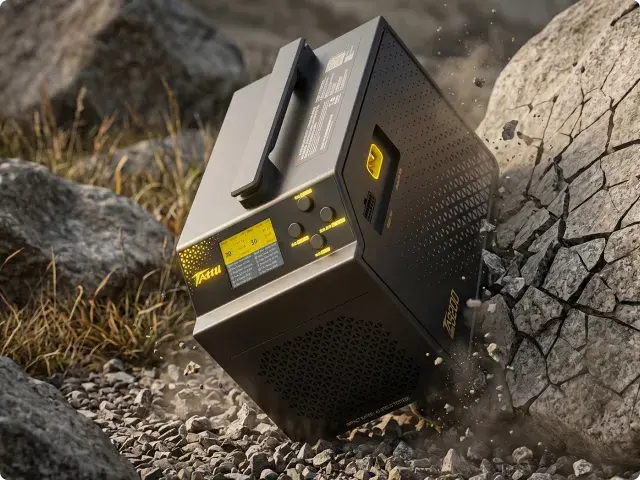

Rugged Field-Ready Design
The sturdy enclosure is designed for frequent transportation and professional operation outside the workshop. An integrated carrying handle makes it easier to move the charger between service stations, technical vehicles, and field locations.

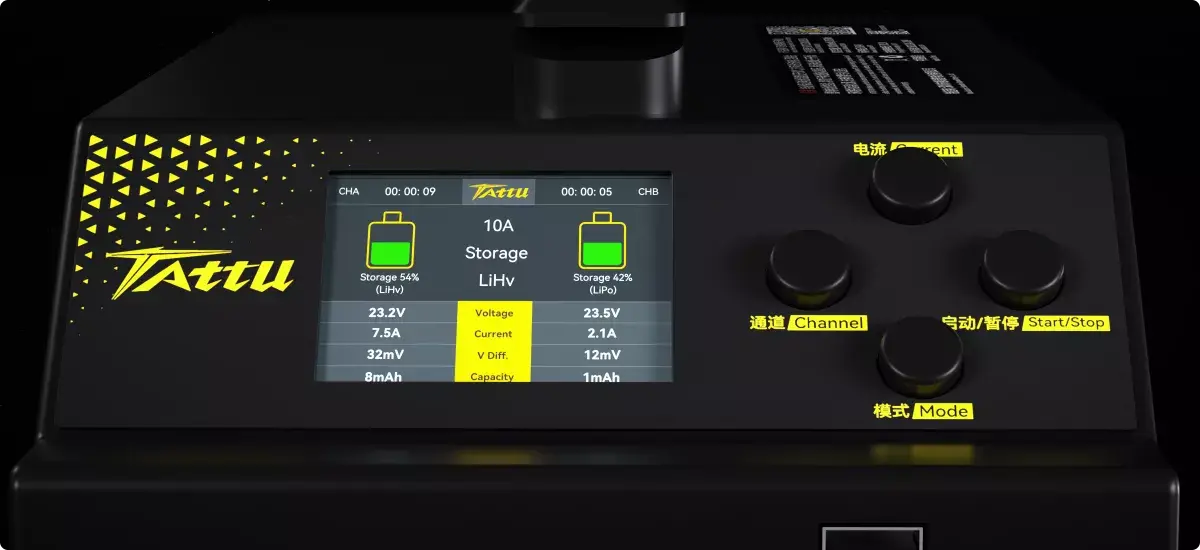

Clear Dual-Channel Monitoring
The display presents key information for two connected batteries, including voltage, current, charge level, and voltage difference. Dedicated controls provide convenient access to channel selection, operating mode, and start or stop commands.

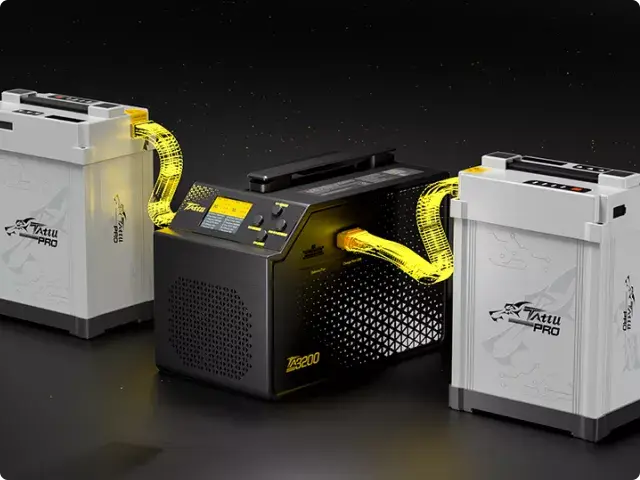

Intelligent Two-Battery Management
The charger can operate with two compatible Tattu Smart batteries at the same time. Automatic battery-data recognition simplifies setup, while real-time information helps the operator monitor the complete charging process.

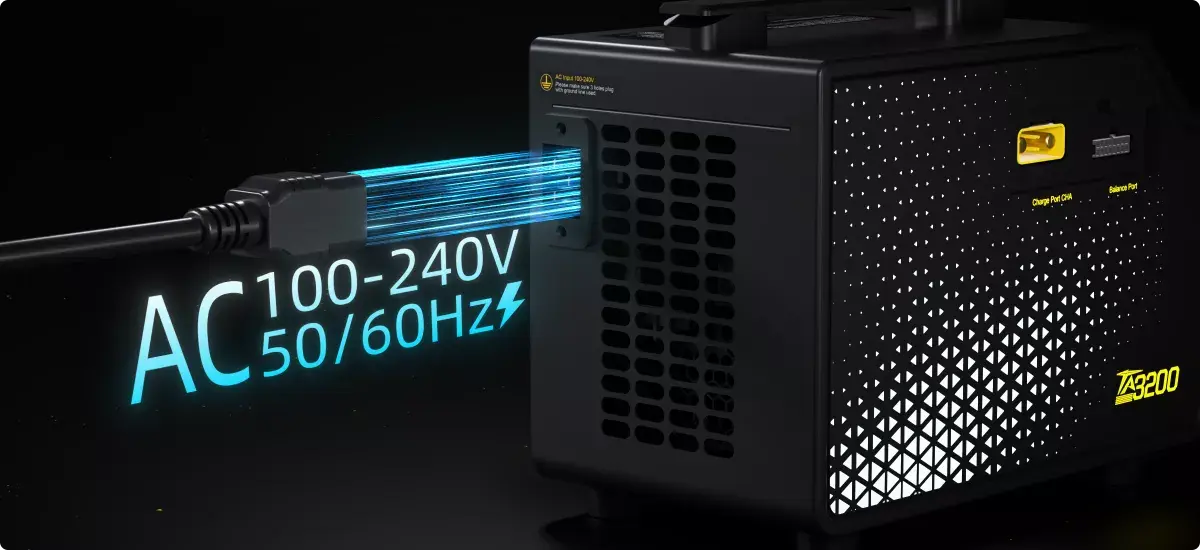

Universal AC 100–240 V Input
The AC 100–240 V, 50/60 Hz input range supports operation across different electrical systems. The charger can also be powered by a sufficiently capable portable power station or generator, making it practical for off-grid and mobile use.
Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery Frequently Asked Questions (FAQ)
It can charge compatible 6S–14S UHV LiPo packs used in unmanned systems, mobile robots, UGV platforms, large RC and airsoft builds, electric boats, prototype vehicles, field machinery, and custom industrial equipment. Its use is determined by the battery type, so it is not limited exclusively to drone applications.
Yes. Up to 3200 W, 60 A, and two channels make it suitable for users who need to prepare large packs rapidly. Potential sectors include robotics, mobile automation, agriculture, electric mobility, field servicing, and professional high-power models.
Yes. Its two channels can charge two compatible packs at the same time, supporting equipment powered by paired batteries and users managing a larger battery inventory.
Yes. Its AC 100–240 V, 50/60 Hz input allows operation from a sufficiently powerful generator or portable power station. This is useful for mobile service teams, RC events, industrial field work, and locations without direct access to the electrical grid.
With AC 220 V input, it provides up to 3200 W and 60 A. With AC 110 V input, maximum output is 1200 W and 40 A. Actual charging time depends on battery capacity and the selected charging current.
It is not the version intended for standard 4.2 V-per-cell LiPo packs. The TA3200UHV supports 4.45 V-per-cell Ultra High Voltage batteries, while standard LiPo packs require the TA3200 model.
Recommended Power Stations for Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery
The charger supports AC 100–240 V input, allowing it to operate from a sufficiently powerful portable power station. The right model depends on the required charging speed, off-grid operating time, and how frequently the complete setup will be transported.
SYD N051 3600W Portable Power Station
SYD N078 1800W Portable Power Station
SYD N069 1200W Portable Power Station
WARNING
Operate the charger on a flat, stable, and cool surface while maintaining at least 30 cm between the charger and connected batteries. Keep it away from rain, direct sunlight, heat sources, and flammable materials. Disconnect power immediately if an abnormal condition or warning appears
Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery Specifications
Model | TA3200UHV |
Input Voltage | AC 100V - 240V |
Battery Type | LiUHV(UHV) |
Battery Cells | 6S - 14S Soft Pack or Tattu Smart Battery |
Charge Current | AC 110V / MAX 40A AC 220V / MAX 60A |
Charge Power | AC 110V / Max 1200W AC 220V / Max 3200W |
Discharge Power | Max 70W x2 |
Channel | 2 |
Output Plug | AS150UPB-M |
Operating Temperature |
0°C - 65°C |
Dimension | 276mm x 154mm x 216mm |
Weight | 6000g |
Function | Charge, Storage |

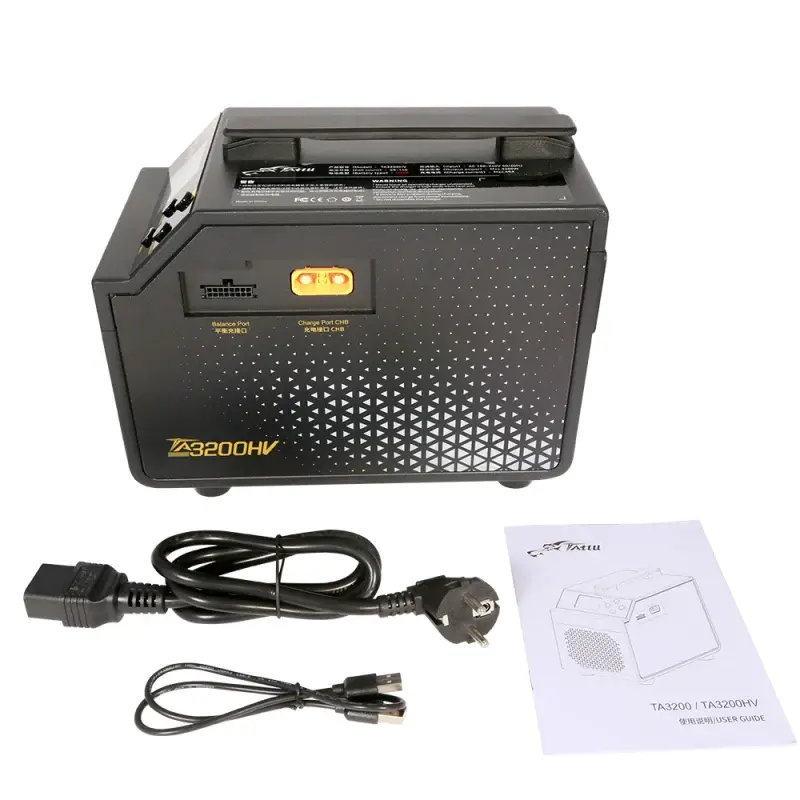

Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery Package Includes
- 1x Tattu TA3200UHV Dual-Channel Smart Charger for 6S-14S Ultra High Voltage Tattu Smart Battery
- 1x AC Power Cable
- 1x USB Firmware Update Cable
- 1x User Manual
