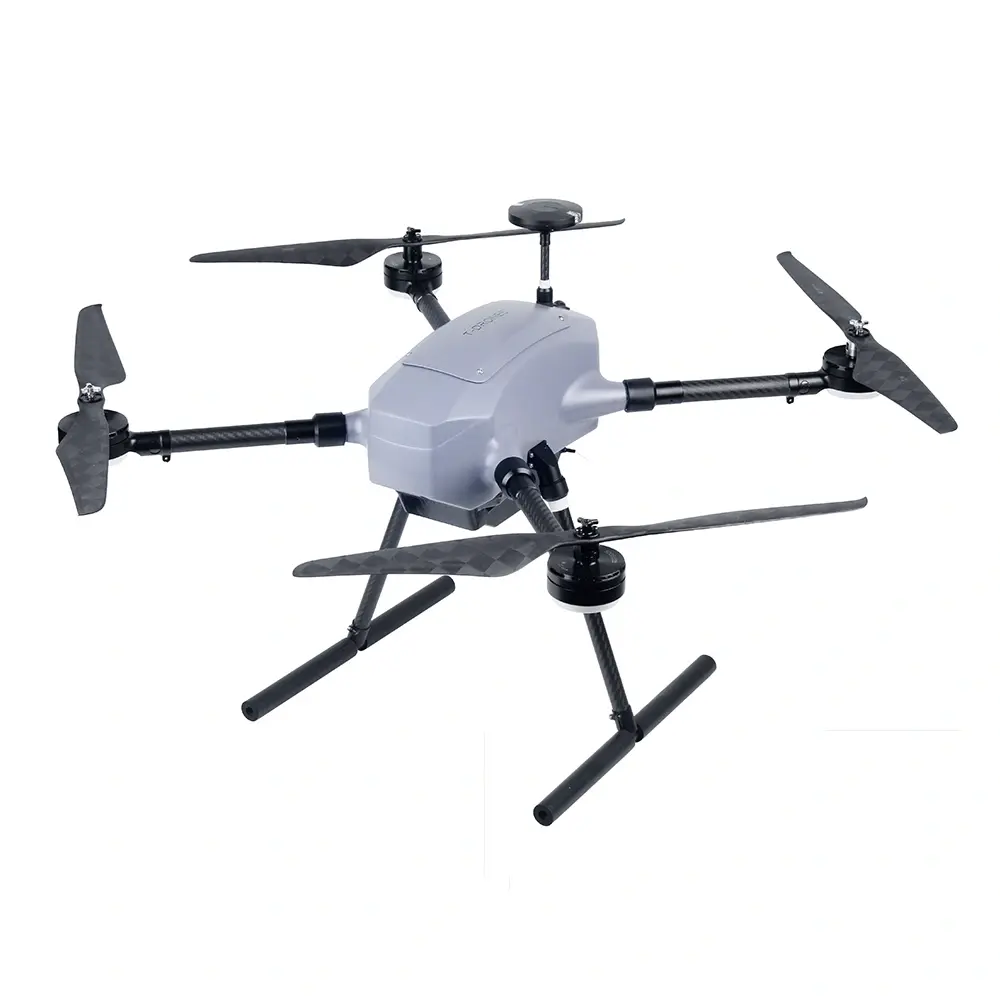

T-DRONES M690 PRO
The M690 PRO is an ultra-light aircraft with long endurance, designed for various missions such as aerial photography, mapping, meteorological monitoring, surveillance, and geo-exploration. It offers customized solutions and can achieve up to 55 minutes of flight time with a 1 kg payload. This extended flight time allows for the completion of multiple missions in a single flight. The M690PRO can be easily adapted to various devices, and its mobility, communication range, and excellent protection make it ideal for operation in diverse environments.
This product is no longer available.
T-DRONES M690 PRO: A Long-endurance and Multi-functional Flight Platform
The M690PRO MR - DIY KIT is a versatile long-endurance flight platform featuring an extended flight time and a modular design for easy customization. It boasts a high payload capacity, making it suitable for various applications such as aerial photography and surveying. With an advanced flight control system, durable construction, and a user-friendly interface, the M690PRO ensures stable operation in challenging conditions. Ideal for both hobbyists and professionals, this drone is perfect for a wide range of industries, offering real-time data transmission for enhanced performance.
M690Pro Overview
- M690Pro could fly up to 55 minutes (1kg payload) for easy mission accomplishment with abundant time.
- User-friendly PMM and flexible mounting methods guarantee its compatibility with various devices.
- Thanks to the long effective communication distance, excellent protection rate, and portable backpack design, you can shuttle in different environments leisurely.
Benefits and Features
- Hollow Design - Made of carbon fiber, Tougher in structure, higher in strength, and lighter in weight.
- Long Flight Time - Up to 55mins under normal conditions (1kg payload).
- Smart Battery - High energy density rate and excellent BMS for a longer and safer flight.
- Custom T-MOTOR Propulsion System - The choice of safety, for long endurance characteristics, the efficiency, reliability, and weight have been optimized to make it highly efficient, stable, and safe.
- Portable Backpack - Only 5.8kg, travels light, operates fast work efficiently.
- Protection - The mission killer, allows you to accomplish tasks in different environments.
Optional Payloads
The M690PRO comes with a flexible connector and multiple optional power supply ports for better compatibility with more devices for different demands.
You may choose from the following equipment: Thermal Camera, Laser Night Vision, Aerial Photography, Winch System, and Cargo Box.
T-DRONES M690 PRO Specification
Wheelbase | 700mm |
Weight of Drone (Without Battery) | 1.69kg |
Weight of Drone (With Battery) | 3.59kg |
Weight of Battery | Standard Smart 6S 22AH battery*1PC : 2.18kg |
Max Take-off Weight | 6kg |
Maximum Ascent Speed | 5m/s |
Maximum Descending Speed | 3m/s |
Maximum Horizontal Flight Speed | 15m/s |
GPS Hover Accuracy | Vertical:±0.2m; Horizontal:±0.1m |
Hover Time | 1kg≥55mins; 2kg≥40mins |
Protection | IP54 |
Maximum Tolerable Wind Speed | 14m/s |
Working Temperature | -15℃~50℃ |
Propulsion System | T-MOTOR |
Recommended Control System | PIXHAWK |
Dimensions (Unfolded) | 550*550*445mm (Without Props) |
Dimensions Folded | 283*278*175mm (With Landing Gear,Without Props) |
Packing Size | 420*370*280mm (Normal); 510*420*340mm (With Package) |
Shipping Weight | 6.6kg (With Packaging) |
T-DRONES M690 PRO Package Includes
- T-DRONES M690 PRO a Part Assembled State
- 4x Motors installed
- 4x ESCs installed
- PDB installed
- Propellers
- Retractable Legs
- Carry Case
