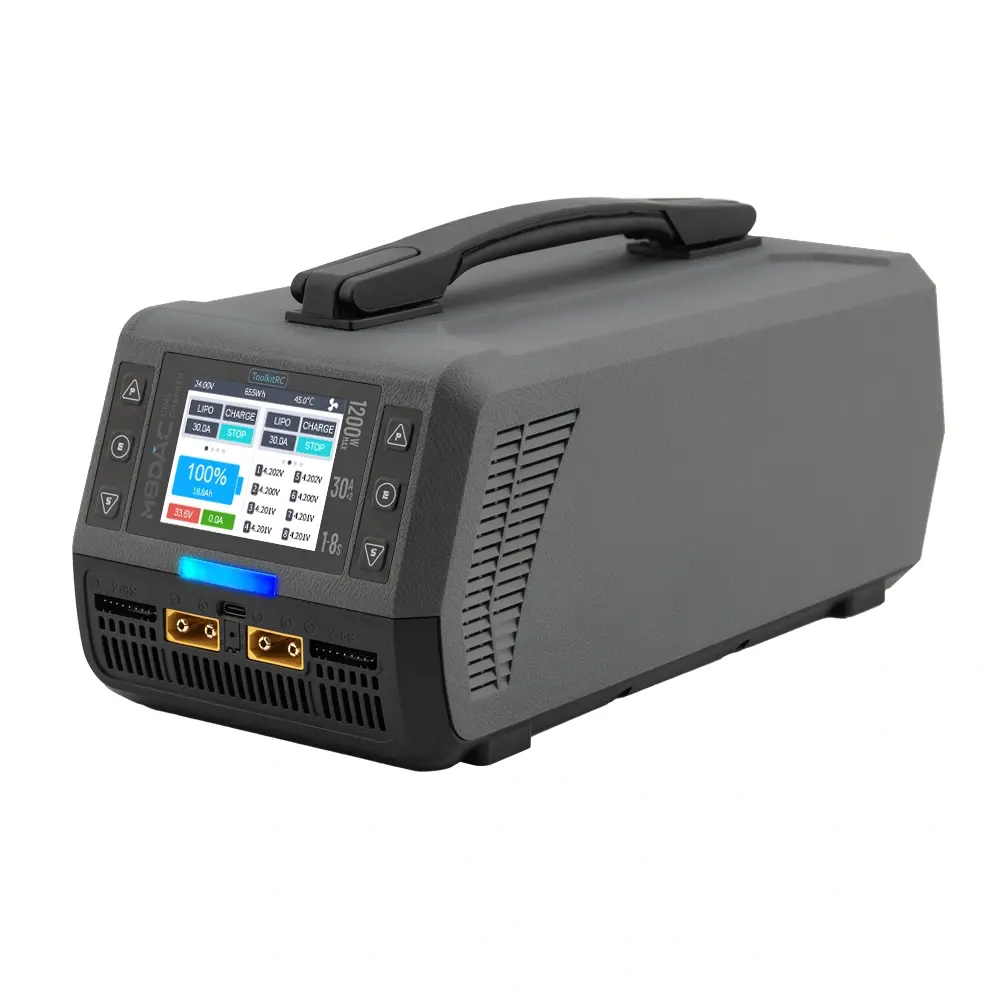

ToolkitRC M8DAC Charger
ToolkitRC M8DAC Charger – 1200W Dual-Channel Charger for 1–8S LiPo and LiHV Batteries
The ToolkitRC M8DAC Charger is a high-performance, dual-channel AC charger designed for demanding RC users and professionals. With an impressive total output of up to 1200W, it allows you to charge, discharge, and balance 1–8S LiPo, LiHV and other battery types quickly and safely. Thanks to its two independent channels, you can handle multiple battery packs at the same time, saving time and improving efficiency. The built-in AC power supply, clear color display, intelligent power distribution, and advanced safety protections make the M8DAC a reliable all-in-one solution for workshops, race tracks, and hobby benches.
ToolkitRC M8DAC Charger Features
- Powerful dual output, with smart power distribution.
- The all-new UI with smart 2.8″ IPS LCD Display, Simple yet Comprehensive.
- 65W Super Flash Charger, keep you fully charged at any time.
- Extremely compact size, with carrying handle.
- Dynamic light strip, real-time indication of charging status.
- Automated fan speed, Advanced automated cooling according to real-time heat demand.
- Comprehensive security protection: Short Circuit Protection / Voltage Protection / Reverse Polarity Safeguard / Current Protection / Capacity Protection / Temperature Protection / Time-Out Protection / Cut-Off Protection / V0 Flame-Retardant.
- Multi-language user interface: 100-240V wide voltage input, adaptable to global voltage standards.
Frequently asked questions - ToolkitRC M8DAC Charger
It supports 1–8S LiPo and LiHV battery packs. It is suitable for batteries used in RC cars and trucks, FPV drones, airplanes, helicopters, boats, airsoft replicas, mobile robots, and other electric projects powered by compatible packs.
Yes. Two independent channels provide up to 600 W and 30 A each, allowing two packs to be prepared at the same time. In synchronous mode, both channels combine their output to deliver up to 1200 W and 50 A to one large battery.
No. Its built-in AC power supply connects directly to a 100–240 V mains source. This makes it convenient for workshops, garages, mobile service stations, RC tracks, and field charging locations with access to a suitable AC source.
Yes. Dual channels, automatic power distribution, and continuous operation simplify the management of larger battery collections. After removing a fully charged pack, the charger can begin working with the next battery using the previous settings.
Yes. Charge, discharge, and Storage modes are available for LiPo and LiHV batteries. Storage mode helps prepare packs for periods between seasons, competitions, or field operations.
Yes. Its built-in USB-C output provides up to 65 W and supports popular fast-charging protocols. It can power compatible mobile devices while also serving as the main charger for RC battery packs.
Recommended Power Stations for ToolkitRC M8DAC Charger
SYD N051 3600W Portable Power Station
SYD N078 1800W Portable Power Station
SYD N069 1200W Portable Power Station
ToolkitRC M8DAC Charger Specifications
Model | ToolkitRC M8DAC |
LCD |
IPS 2.8″ LCD 320px x 240px
|
Input Voltage | AC 100-240V / Max 1300W |
Battery Type
| LiPo LiHV / 1-8S |
Charging Power
| 1.0A - 30.0A / 600W x2 ASYNC 1.0A - 50.0A / 1200W SYNC
|
Discharging Power | 1.0A - 5.0A / 50W x2 ASYNC 1.0A - 10.0A / 100W SYNC |
Balance Current | 2000mA / 4.2V |
Type-C Output | 5-20V / 65W PD/QC/PPS/AFC/SCP |
Internal Resistance | 1mΩ - 9.9Ω / 1-8S |
Operating | 3 Buttons |
Output Connector |
2x XT90 male port 1x Type C |
Product Dimension | 280mm x 138mm x 142mm |
Packing Dimension | 320mm x 168mm x 197mm |
Product Weight | 2350g |
Packaging Weight | 3000g |
ToolkitRC M8DAC Charger Package Includes
- 1x ToolkitRC M8DAC Charger
- 1x AC Input Cable
- 1x USB Cable
- 1x Signal Cable
- 1x Quick Manual
- 1x Screen Protector
