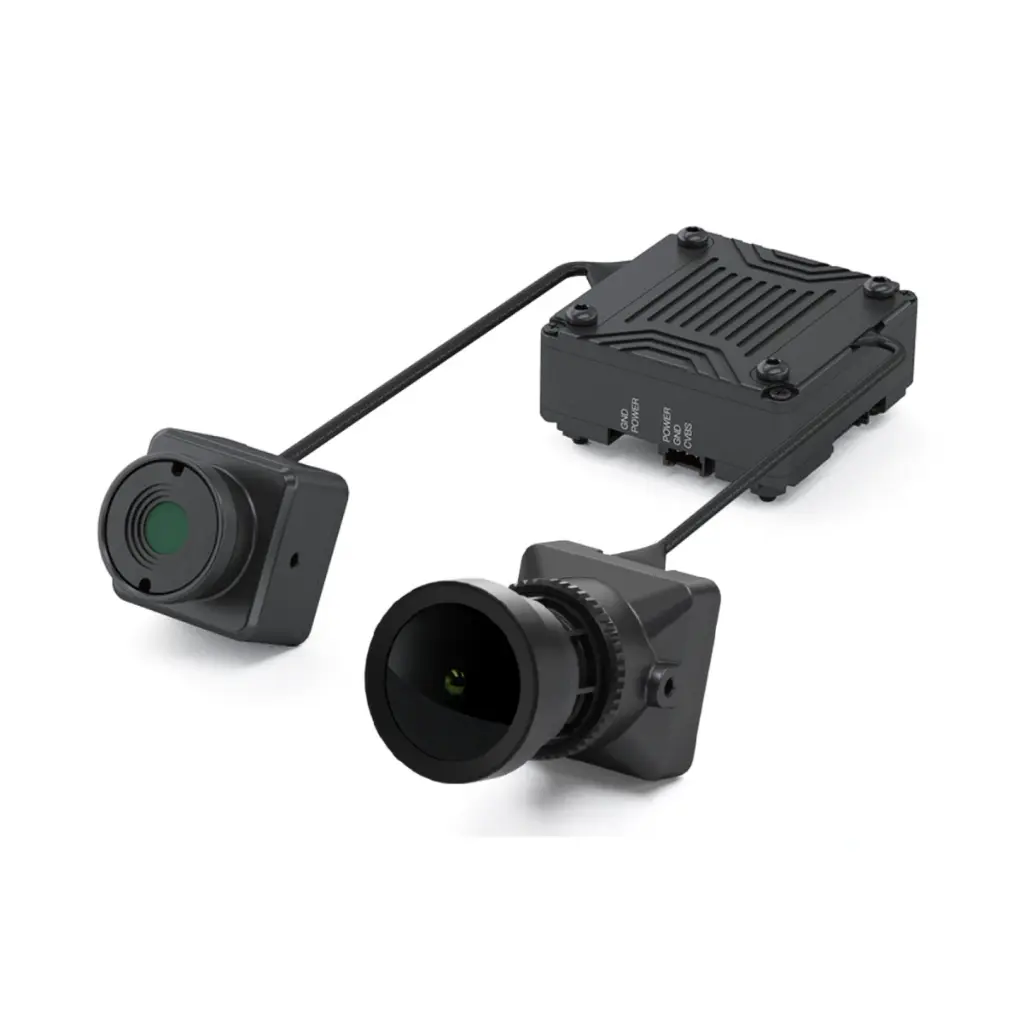

Caddx TR1-220SL Dual Thermovision Camera

The Caddx TR1-220SL Dual Thermovision Camera turns your FPV drone into a true all-conditions machine, combining an AI unit with two cameras: a thermal VOx 256×192 (“white hot”) and a 0-lux night vision sensor (1500 TVL, 120° FOV), all delivering a reliable analog signal for real-time performance with minimal latency. You can easily switch between the cameras via the included GPIO cable, giving you instant access to the view you need. Detect heat, see in complete darkness, and fly with confidence—perfect for search and rescue, security, and demanding inspections where every second counts.

1,097.56 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Discover the Unseen in Total Darkness with Double the Power with Caddx TR1-220SL Dual Thermovision Camera

The Caddx TR1-220SL Dual Thermal Camera is an innovative solution for the most demanding drone pilots and professionals. By combining the ultra-sensitive Infra analog camera with the Eclipse thermal sensor, the Caddx TR1-220SL Dual Thermal Camera system guarantees a double benefit: a clear black-and-white image thanks to the F1.0 lens and precise thermal mapping. The integrated AI Box in the Caddx TR1-220SL Dual Thermal Camera set intelligently manages thermal image processing. This gives users of the Caddx TR1-220SL Dual Thermal Camera model an unparalleled situational advantage in rescue missions and night operations.

Key Features of Caddx TR1-220SL Dual Thermovision Camera

Dual vision

The Caddx TR1-220SL Dual Thermal Camera combines night imaging with thermal imaging, allowing for simultaneous observation of the surroundings and heat detection.

0 Lux technology

The Caddx TR1-220SL Dual Thermal Camera allows you to see in total darkness thanks to the use of the Infra module with a bright F1.0 lens.

High-class thermal imaging

The Caddx TR1-220SL Dual Thermal Camera set utilizes a vanadium oxide sensor with a resolution of 256x192 pixels, guaranteeing a precise thermal image.

Intelligent AI Box module

The Caddx TR1-220SL Dual Thermal Camera utilizes the AI Box module, ensuring smooth and reliable processing of camera data.

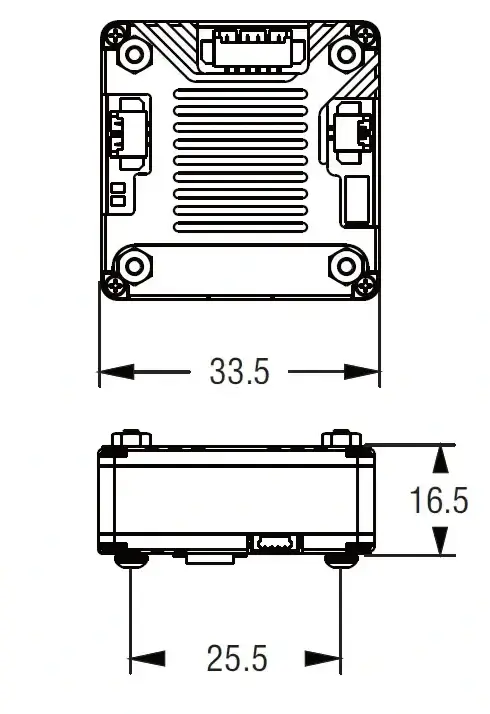

Dimension of Caddx TR1-220SL Dual Thermovision Camera

tr1-220sl-kamera-termowizyjna-caddx-tr1-220sl-dual

AI Box

Camera 1 (Infra)

Camera 2 (Thermovision)

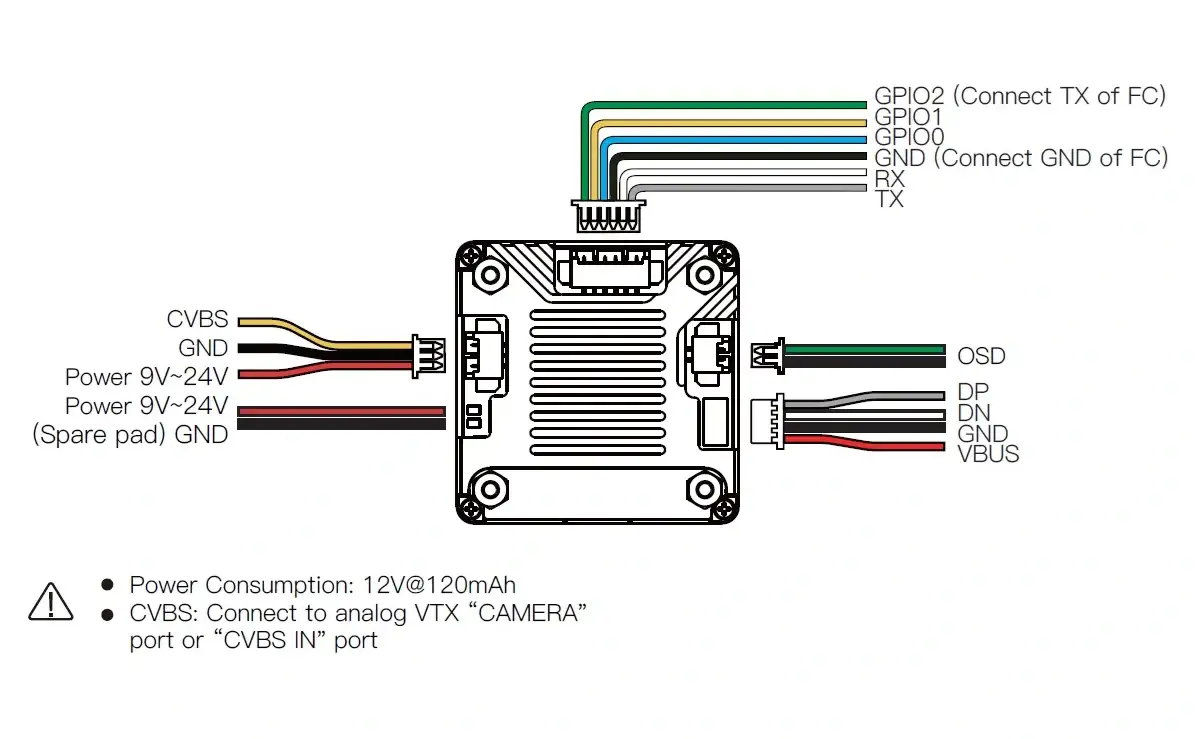

Caddx TR1-220SL Dual Thermovision Camera Wiring Diagram

Caddx TR1-220SL Dual Thermovision Camera Specifications

Output	PAL
Input voltage	9-24V
Working Temperature	-10°C ~ 50°C
Interface	Analog (CVBS)
Average Latency	20ms
Image Quality	Al lmage Enhancement
AI box size	33.5x33.5x16.5mm
Weight	55g

Camera 1 (Infra)

lmage Sensor	Black & White Sensor
Horizontal Resolution	1500 TVL
FOV	120°
Min. lllumination	0 Lux
WDR	Super WDR
Lens	M16/F1.0/2.8mm
Frame Rate	50/60fps
Power Consumption	<1.5W
Camera size	20x20.5x34.5 mm

Camera 2 (Thermovision)

Sensor	Uncooled Vanadium Oxide Detector
Resolution	256x192px
Lens	F1.0/4mm
FOV	50° (H) x 37.2° (V) x 62.3° (D)
IFOV	3.43
Refresh rate	50fps
Power Consumption	<1.5W
Camera size	19.5x19.5x20mm

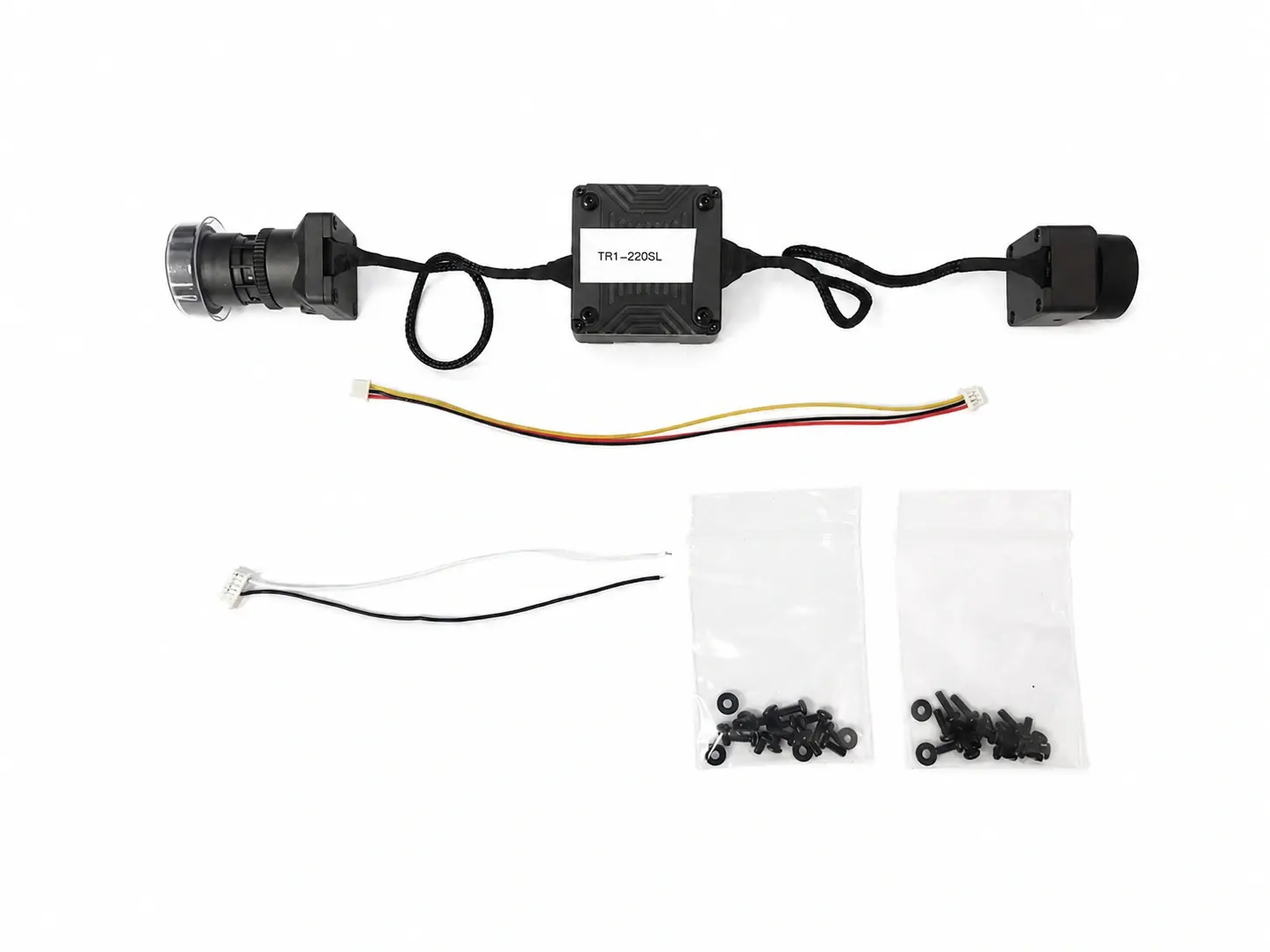

Caddx TR1-220SL Dual Thermovision Camera Package Includes

1x Caddx TR1-220SL Dual Thermovision Camera
1x 3pin Silicon Cable
1x GPIO Connection Cable
2x Screw Set
