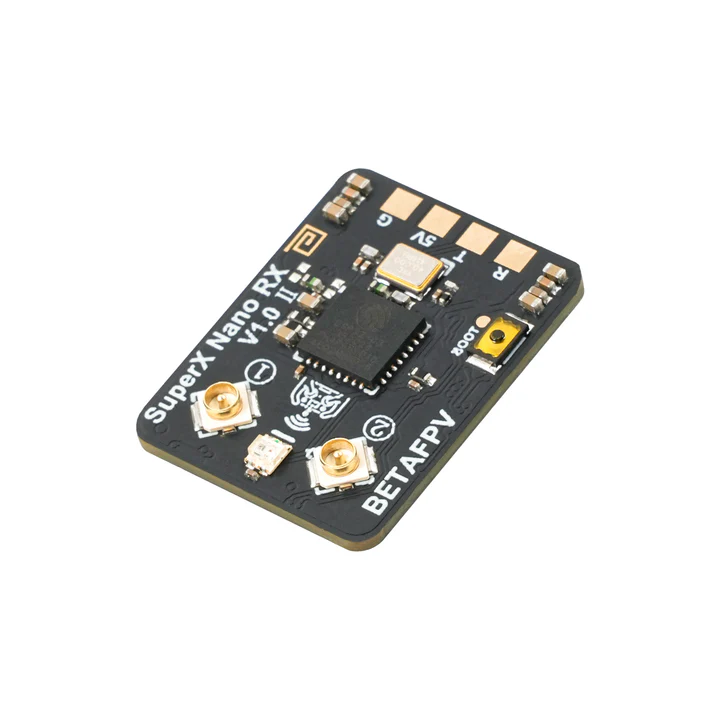

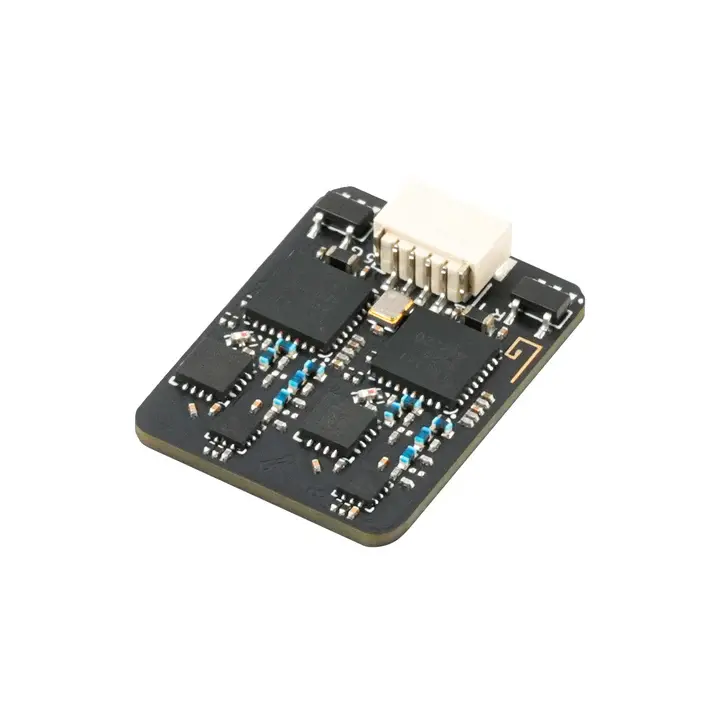

BetaFPV SuperX ELRS Gemini Xross Receiver Nano 2.4G+868M

https://www.bzbuas.com/web/image/product.template/3307/image_1920?unique=605b012

The BetaFPV SuperX ELRS Gemini Xross Receiver Nano 2.4G+868M brings next-level confidence to your FPV setup with dual-band ExpressLRS Gemini Xross technology, combining 2.4GHz and 868MHz for ultra-reliable, redundant signal performance. A built-in TCXO ensures stable, precise operation in all conditions, while the compact Nano design gives maximum performance in minimal size. Rock-solid link, longer range, zero stress—this is the receiver you choose when signal loss is not an option. signal is not an option.
104.88 zł 104.88 PLN VAT Excluded
104.88 zł VAT Excluded

This combination does not exist.

Contact Us

Terms and Conditions

BetaFPV SuperX ELRS Gemini Xross Receiver Nano 2.4G+868M –

Dual-band Freedom, Scaled for Performance.

A compact dual-band ELRS receiver with Gemini Xross technology for reliable long-range control. ExpressLRS Gemini revolutionizes RC control by leveraging true diversity hardware to simultaneously transmit across 2.4GHz and 868MHz frequencies. Unlike conventional systems, Gemini utilizes dual independent transmit/receive chains, delivering superior link quality (LQ) that thrives in challenging environments like race courses or urban areas.

Key features of BetaFPV SuperX ELRS Gemini Xross Receiver Nano 2.4G+868M

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever
Dual-band 2.4G+868M

Optimized for the 868MHz band to deliver outstanding range, penetration, and signal reliability. Perfect for long-range flights and challenging RF environments.

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever
LoRa & FSK

LoRa delivers exceptional range and interference resistance, while ultra-fast 1000Hz FSK provides extremely low latency and instant control response. Perfect for both competitive racing and long-range missions.

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever

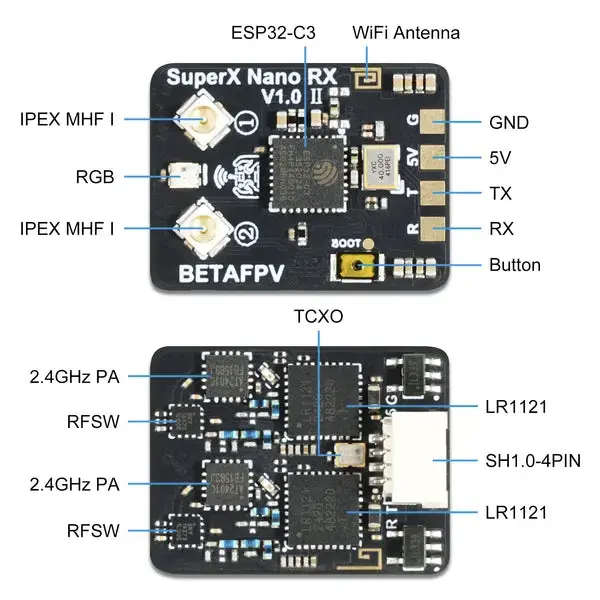

ESP32-C3+LR1121

Powered by the high-performance ESP32-C3 and advanced Semtech LR1121 RF chipset for stable connectivity, fast processing, and reliable telemetry performance. Built for demanding FPV pilots.

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever
ExpressLRS Gemini

ExpressLRS Gemini technology uses simultaneous dual-band transmission for enhanced link reliability and signal protection. Maintain a solid connection even in challenging RF conditions.

Configuration

The SuperX ELRS Gemini Xross Receiver currently supports CRSF/SBUS/SUMD protocols. The following takes CRSF protocol as an example to introduce its connection and pin configuration with Betaflight firmware flight controller.


Wiring diagram:

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever


JST SH connector pin configuration:

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever

BetaFPV SuperX ELRS Gemini Xross Receiver Nano 2.4G+868M Specifications

MCU

ESP32-C3

Telemetry Power

20dBm

Input Voltage

5V

Protocols

CRSF, SBUS, SUMD, DJI RS2 Pro, MAVLink

RF Chip

Dual LR1121

Reception Mode

Diversity/Gemini

Frequency Band

868M+2.4G

Antenna Connector

U.FL x2

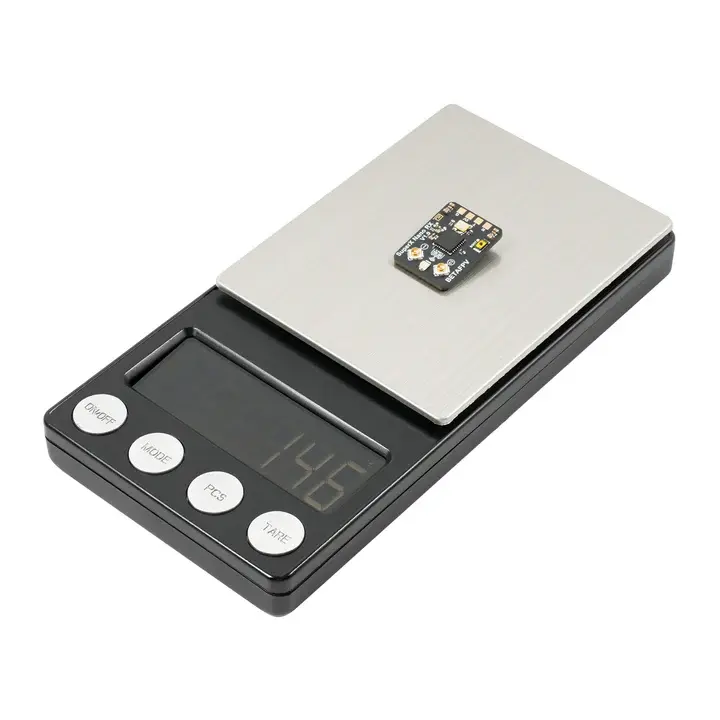

Weight

1.45g

Dimensions

16.3 x 21.4mm

LUA Name

BFPV SuperX Nan

Recommended

5'' + drones (freestyle, photography, long-range)

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever

Package BetaFPV SuperX ELRS Gemini Xross Receiver Nano 2.4G+868M include

  • 1x SuperX Nano Receiver

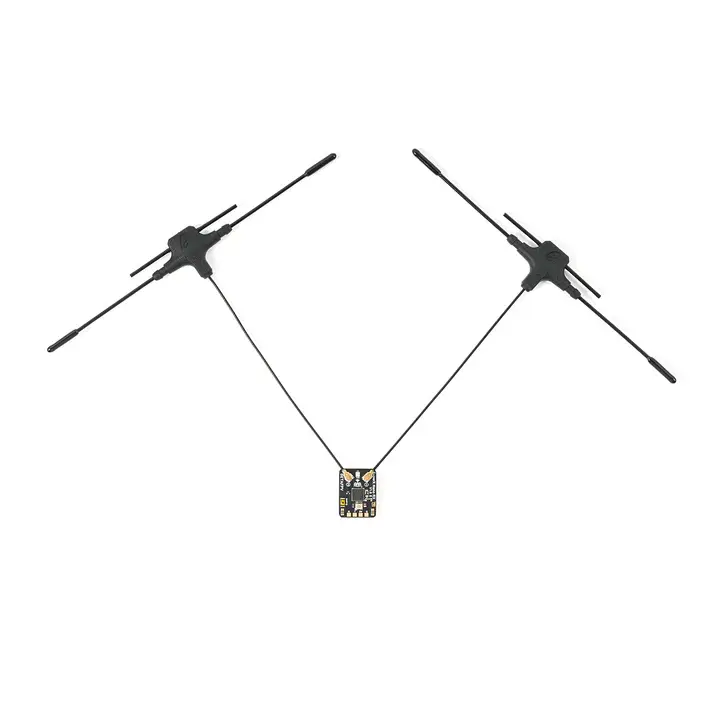

  • 2x Dual-band T Antenna
  • 1x SH1.0 Connector (Double Ended)
  • 2x Heat Shrink Tubing
  • 1x User Manual

BetaFPV_SuperX_ELRS_Gemini_Xross_Nano_2.4G+868M_Reciever
