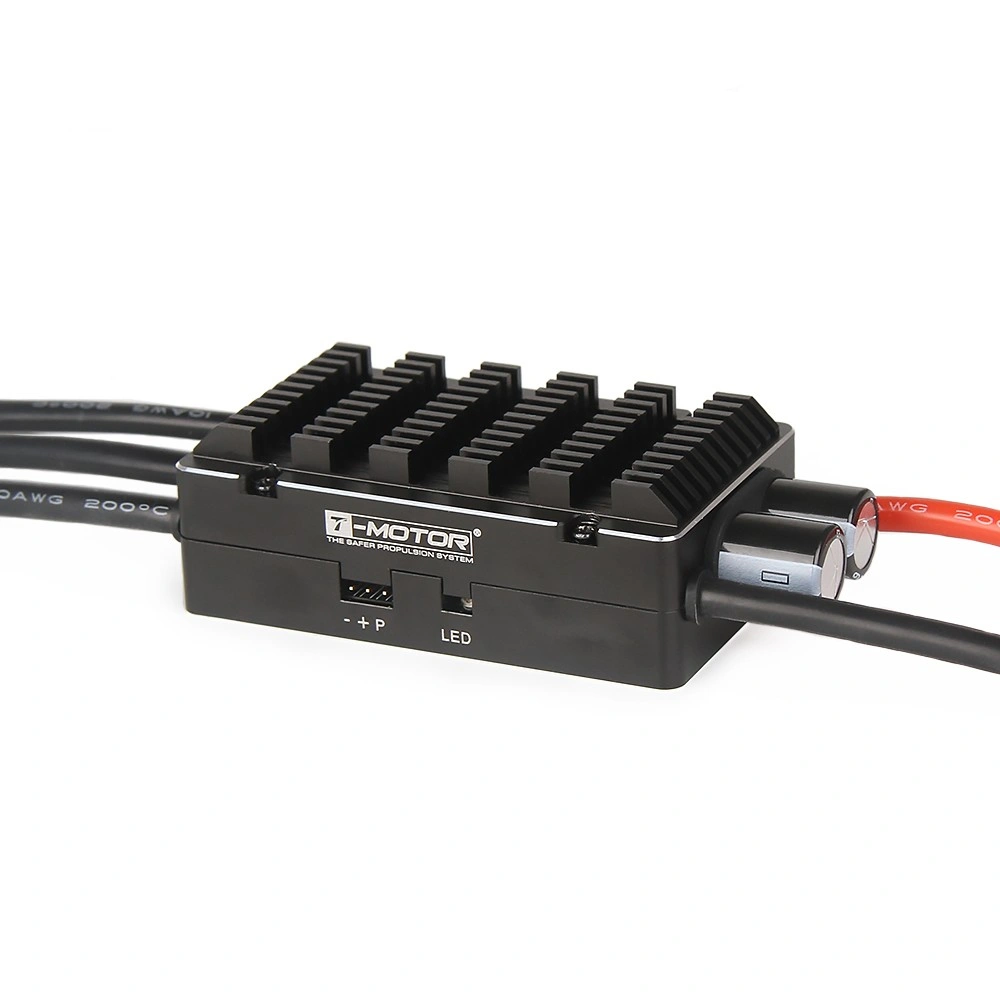

T-Motor AT115A 6-14S VTOL Fixed Wing ESC
The T-Motor AT115A 6-14S VTOL Fixed Wing ESC is a high-performance electronic speed controller designed for VTOL and fixed-wing aircraft. It supports 6–14S LiPo batteries and delivers up to 115A continuous current. With an integrated BEC and multiple safety features, it’s ideal for large, demanding aerial platforms.
Power and Safety with the T-Motor AT115A 6-14S VTOL Fixed Wing ESC
The T-Motor AT115A 6-14S VTOL Fixed Wing ESC is a high-performance electronic speed controller (ESC) specifically designed for VTOL and fixed-wing aircraft. It features a dedicated fixed-wing core algorithm and optimized software structure, ensuring efficient and precise motor control with exceptionally fast throttle response. Built with high-quality imported components and an ingenious PCB layout, it offers stability, durability, and reliable performance.
Precision in Every Flight
Experience the next level of VTOL and fixed-wing performance. The T-Motor AT115A 6-14S VTOL Fixed Wing ESC combines ultra-fast throttle response with industrial-grade reliability to redefine your flight standards.
Begin by upgrading your power system and exceed your mission expectations.
T-Motor AT115A 6-14S VTOL Fixed Wing ESC Key Features Include
Wide Voltage Support.
Compatible with 6-14S LiPo batteries, making it ideal for demanding professional and industrial UAV platforms.Powerful BEC Output.
An integrated, high-efficiency switching BEC (UBEC) module provides adjustable voltage (5.2V / 6V / 7.4V) and current up to 10A (25A peak), capable of driving multiple servos simultaneously.Comprehensive Safety Protections.
Multiple software safeguards including abnormal voltage protection, ESC thermal protection, battery low-voltage cutoff, and throttle signal loss protection.Fast Response.
Hardware filtering and synchronous continuous current technology ensure faster and more reliable motor management.Programmable Parameters.
Offers wide parameter settings and simple setup methods (including LED programming card support) to meet various environmental needs.
Fly with Confidence with T-Motor AT115A 6-14S VTOL Fixed Wing ESC
Start-up Protection
ESC cuts power if the motor fails to start within 2 seconds, preventing hardware damage during ignition.
Temperature Protection
At 110°C, the ESC scales back power by 40% to manage heat while maintaining flight stability.
Signal Loss Protection
Gradual power reduction during signal drops ensures safety and gives you a window to recover control.
Overload Protection
Instant power cut-off or auto-restart when sudden load spikes (like motor blockage) occur.
Trouble Shooting T-Motor AT115A 6-14S VTOL Fixed Wing ESC
Possible Reason: The connection between battery pack and ESC is not correct.
Action: Check the power connection. Replace the connector.
Possible Reason: The battery pack and Input voltage is abnormal, too high or too low.
Action: Check the voltage of battery pack.
Possible Reason: Throttle signal is irregular.
Action: Check the receiver and transmitter. Check the cable of throttle channel.
Possible Reason: The throttle stick is not in the bottom (lowest) position.
Action: Move the throttle stick to bottom position. Reset the throttle range.
Possible Reason: Direction of the throttle channel is reversed, so the ESC has entered the program mode.
Action: Set the direction of throttle channel correctly.
Possible Reason: Errors in the sequence of the connection between the output line and the motor line.
Action: Align (swap) any two of the three output lines.

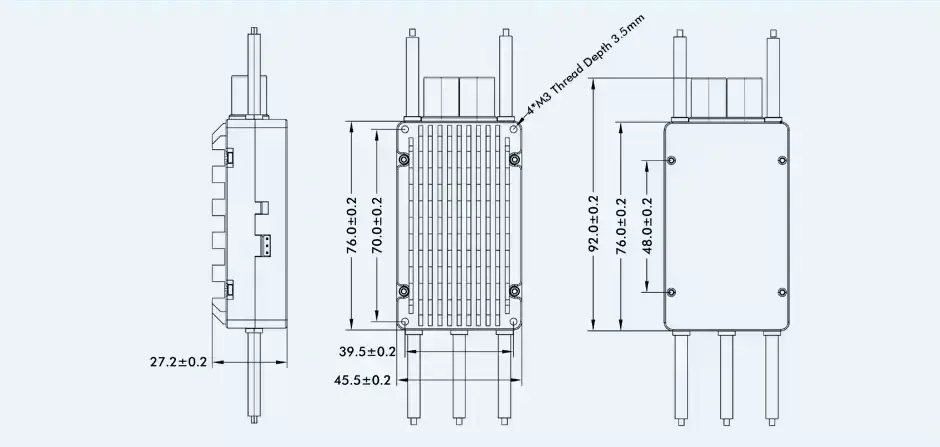

T-Motor AT115A 6-14S VTOL Fixed Wing ESC Diagram
T-Motor AT115A 6-14S VTOL Fixed Wing ESC Specifications
Cont Current | 115A |
Burst Current (≤10s) | 120A |
BEC Mode | Switch |
BEC Output | 5.2V / 6V / 7.4V,10A / 25A |
Battery Cell | 6 - 14S (LiPo), 18 - 42 cells (NiMH) |
Weight | 182 g (Incl. Cable) |
Dimension | 27.3 × 46 × 92 mm (H × W × L) |
IMPORTANT!
Because different transmitter has different throttle range, please calibrate throttle range before flying (Throttle range should be reset whenever a new transmitter is being used).
T-Motor AT115A 6-14S VTOL Fixed Wing ESC Package Includes
- 1x T-Motor AT115A 6-14S VTOL Fixed Wing ESC
- 1x Hardware Kit
