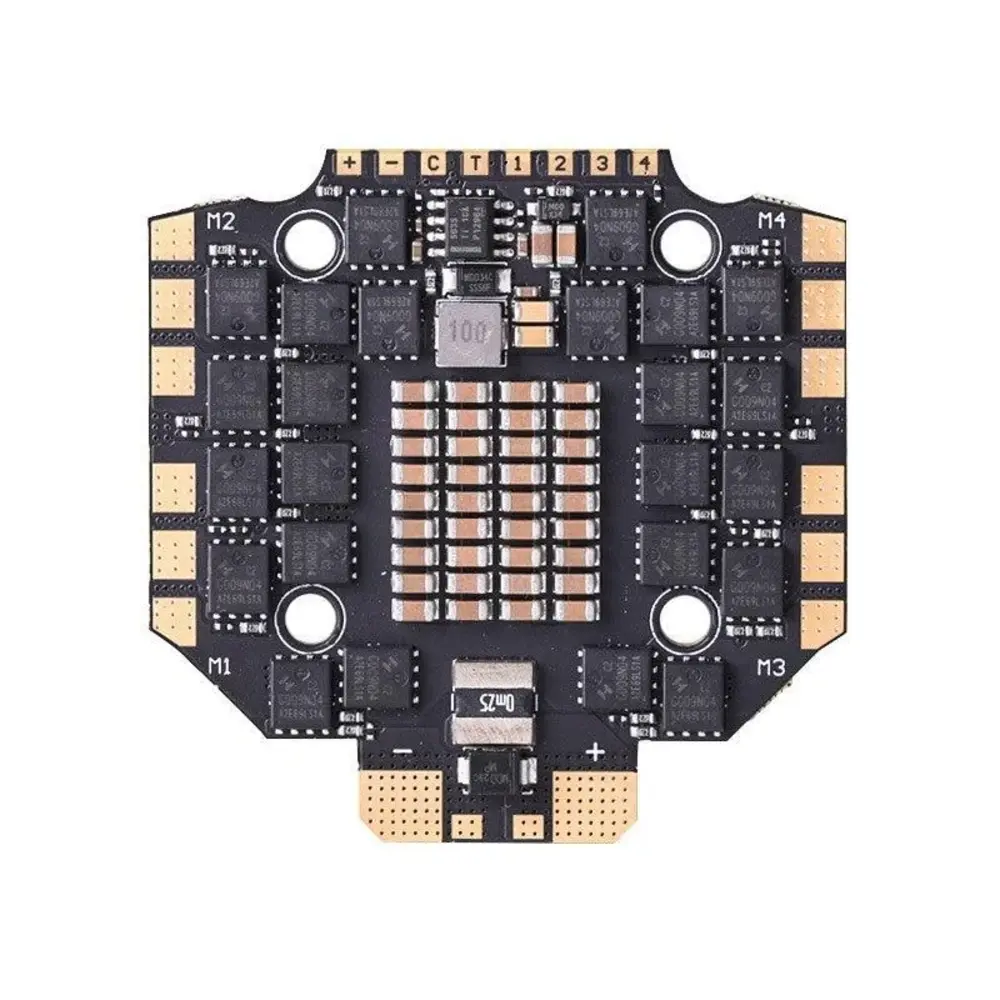

T-Motor Cine 80A 4IN1 8S Electronic Speed Controller
The T-Motor Cine 80A 4IN1 8S Electronic Speed Controller is made for pilots who lift heavy cameras and fly big props. It gives your build a large current reserve on high-voltage packs, so the motors get what they ask for, from a gentle cinematic pass to a hard punch-out. Open AM32 firmware, protected electronics and a signal plug that stays put let you focus on the shot instead of the wiring.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller — Power for Heavy Cinelifters
The T-Motor Cine 80A 4IN1 8S Electronic Speed Controller is a 4-in-1 ESC for 4-8S LiPo packs that delivers 80A of continuous current to each of the four motors and up to 90A for 10 seconds. It runs on an STM32G071 microcontroller and comes pre-flashed with AM32, an open-source 32-bit firmware. Two groups of MOSFETs connected in parallel reduce heat generation, dual TVS diodes at the output stage protect the circuit, and a locking socket keeps the 8-pin signal plug from falling out. The board measures 52.5x52.5mm, weighs 29.4g and mounts on a 30.5x30.5mm pattern with Ø4mm holes. T-Motor designed it for heavy-lift cinematic rigs, 7-11 inch long-range platforms and 8S freestyle builds, and recommends pairing it with VELOX V3115 and V3120 motors. The kit includes an XT60H cable, a 50V 1000µF capacitor, dampers and an 8-pin cable set.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Key Features
Power for Big Props
Each of the four channels handles 80A continuous and up to 90A for 10 seconds. That is a large current reserve for heavy builds on big propellers.
Up to 8S
Works with LiPo packs from 4S to 8S. One ESC covers both 6S builds and high-voltage 8S setups.
Open Firmware
It comes pre-flashed with AM32, an open-source 32-bit firmware. You can adjust its settings, such as the startup tones, to suit your build.
Less Heat
Two groups of MOSFETs connected in parallel share the load. According to T-Motor, this reduces heat generation and improves stability.
Circuit Protection
Dual TVS diodes at the output stage protect the circuit. This adds a layer of safety for the electronics in an expensive build.
A Plug That Stays Put
The 8-pin signal plug sits in a locking socket. It will not work its way out of the connector during flight.

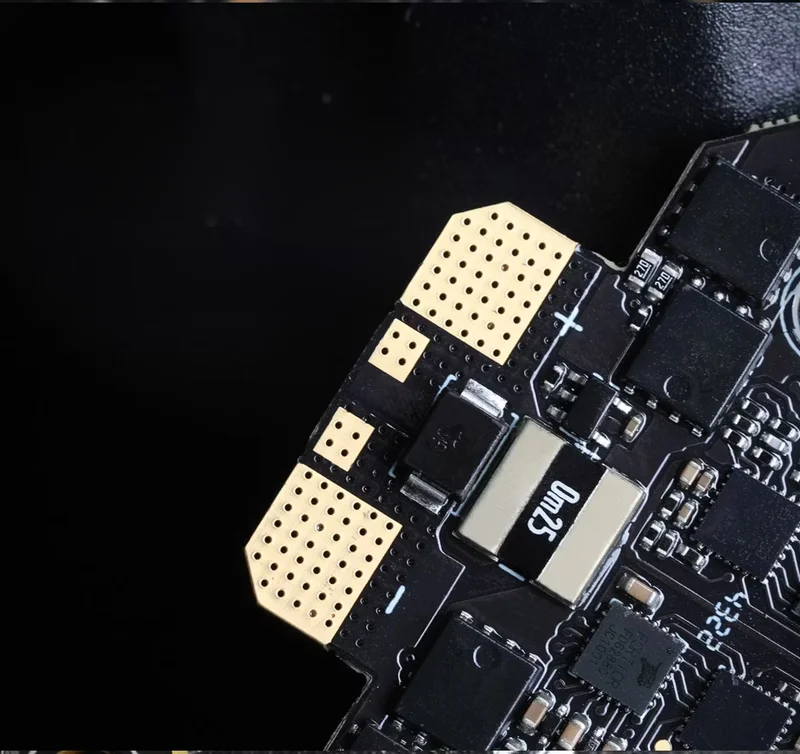

Dual TVS Protection
Two TVS diodes work at the output stage of the ESC. According to T-Motor, they protect the circuit and improve its operating stability.
STM32G071 Microcontroller
The ESC is controlled by a 32-bit STM32G071 microcontroller from the STM32 G0 family, which runs the pre-flashed AM32 firmware.

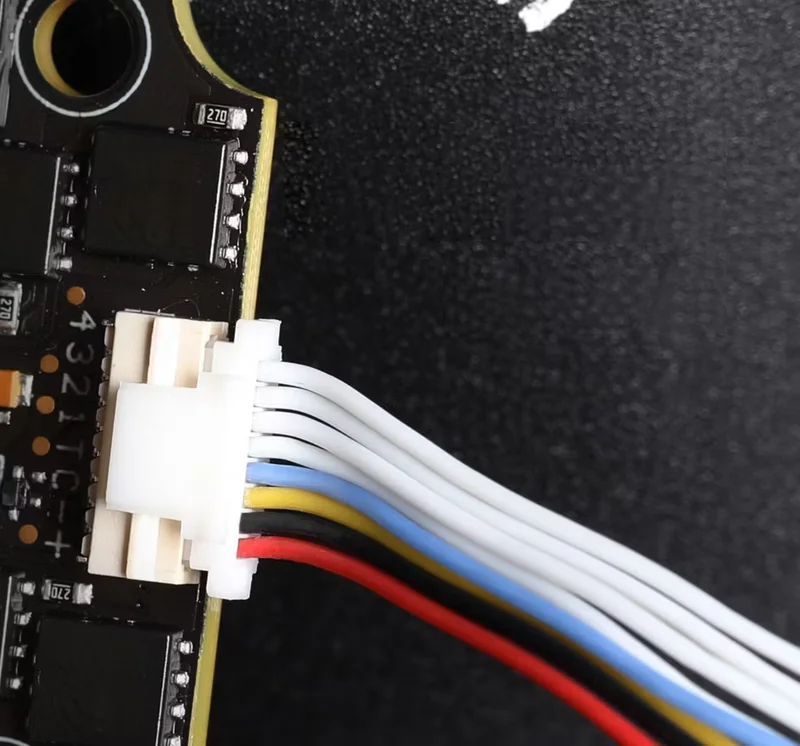

Locking Signal Socket
The 8-pin cable plugs into a socket that locks it in place and prevents the connector from falling off.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Suitable Applications
T-Motor designed this ESC for:
- Heavy-lift cinematic rigs (cinelifters)
- 7-11 inch long-range platforms
- 8S freestyle builds
Recommended Motors
T-Motor recommends pairing this ESC with VELOX motors:
- VELOX V3120 (500KV, 700KV)
- VELOX V3115 (400KV, 640KV, 900KV)
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Specification
MCU | STM32G071 |
Firmware | AM32 |
Input Voltage | 4-8S LiPo |
Continuous Current | 80A x4 |
Burst Current | 90A x4 (10s) |
Protection | Dual TVS diodes at the output stage |
Signal Connector | 8-pin, locking socket |
Dimensions | 52.5x52.5mm |
Mounting Pattern | 30.5x30.5mm, Ø4mm |
Weight | 29.4g |
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Package Includes
- 1x T-Motor Cine 80A 4IN1 8S Electronic Speed Controller
- 1x XT60H Male Cable, 12AWG
- 1x 50V 1000µF Capacitor
- 1x Set of Dampers
- 1x 8-Pin Cable Set
