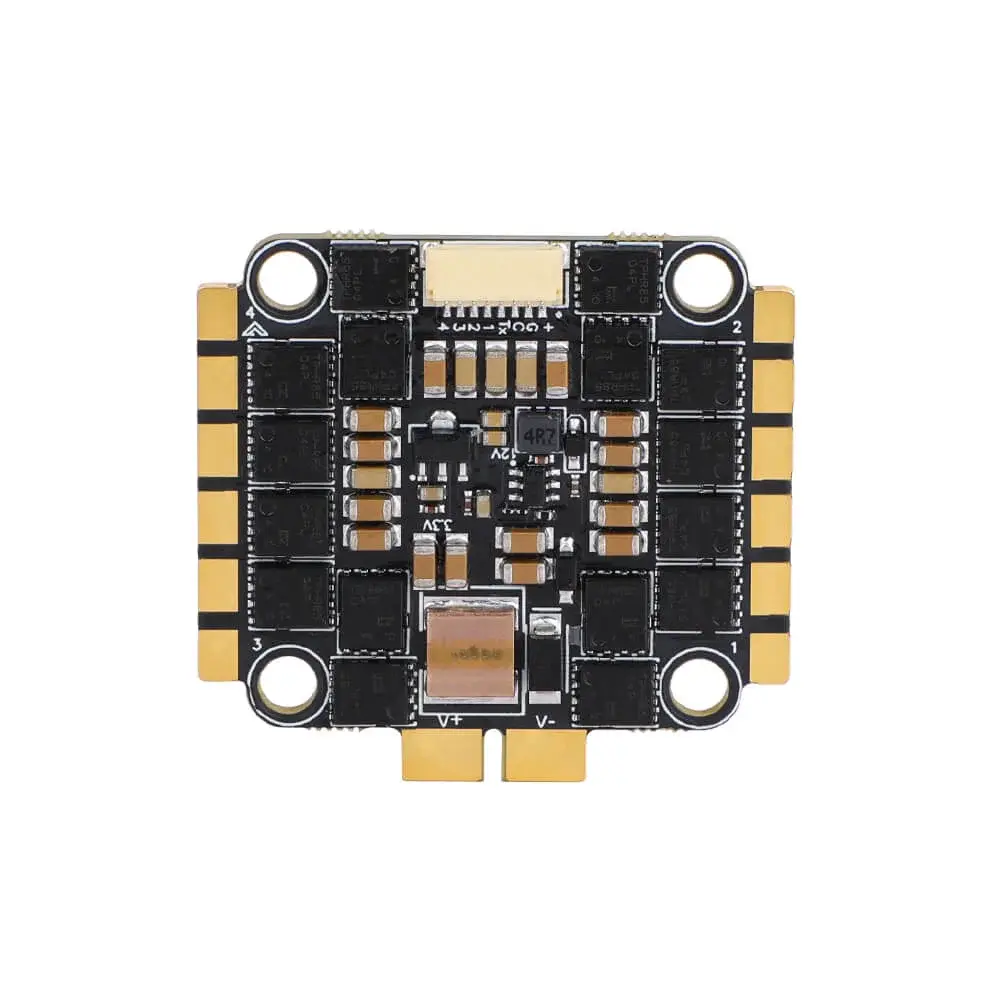

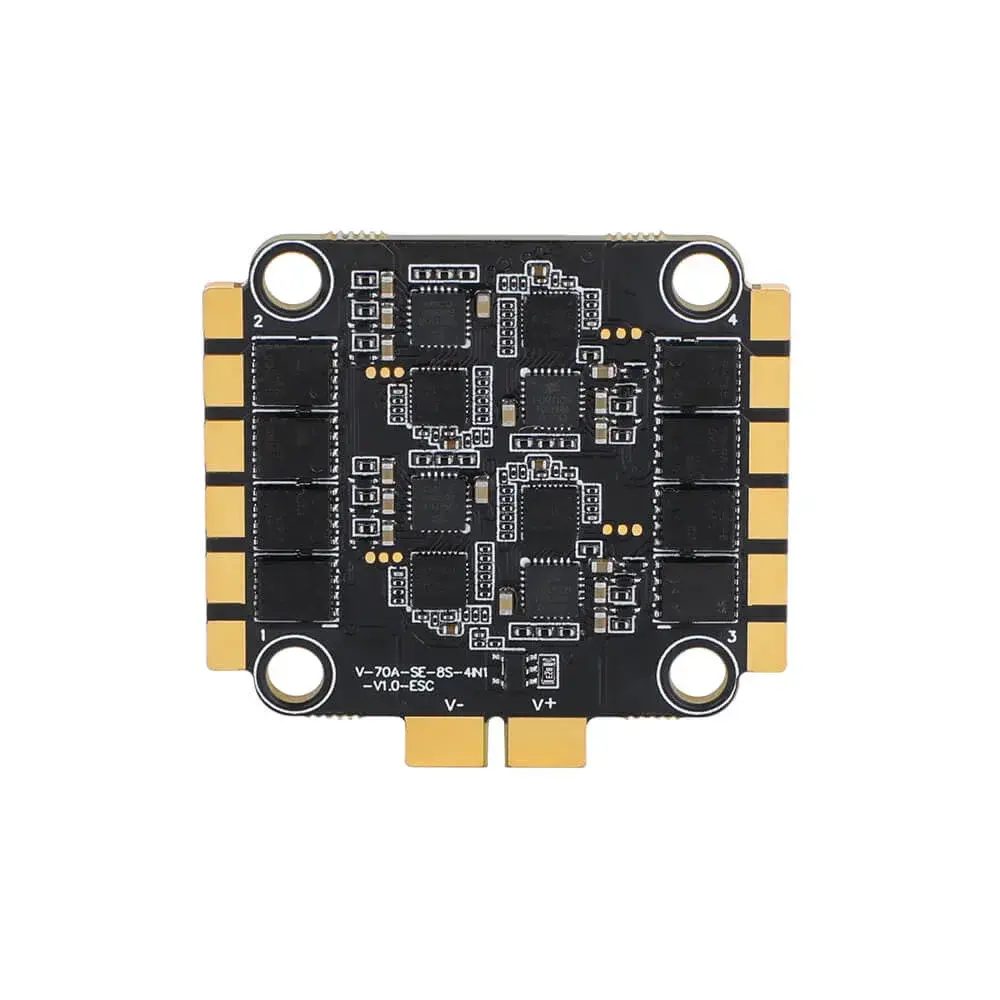

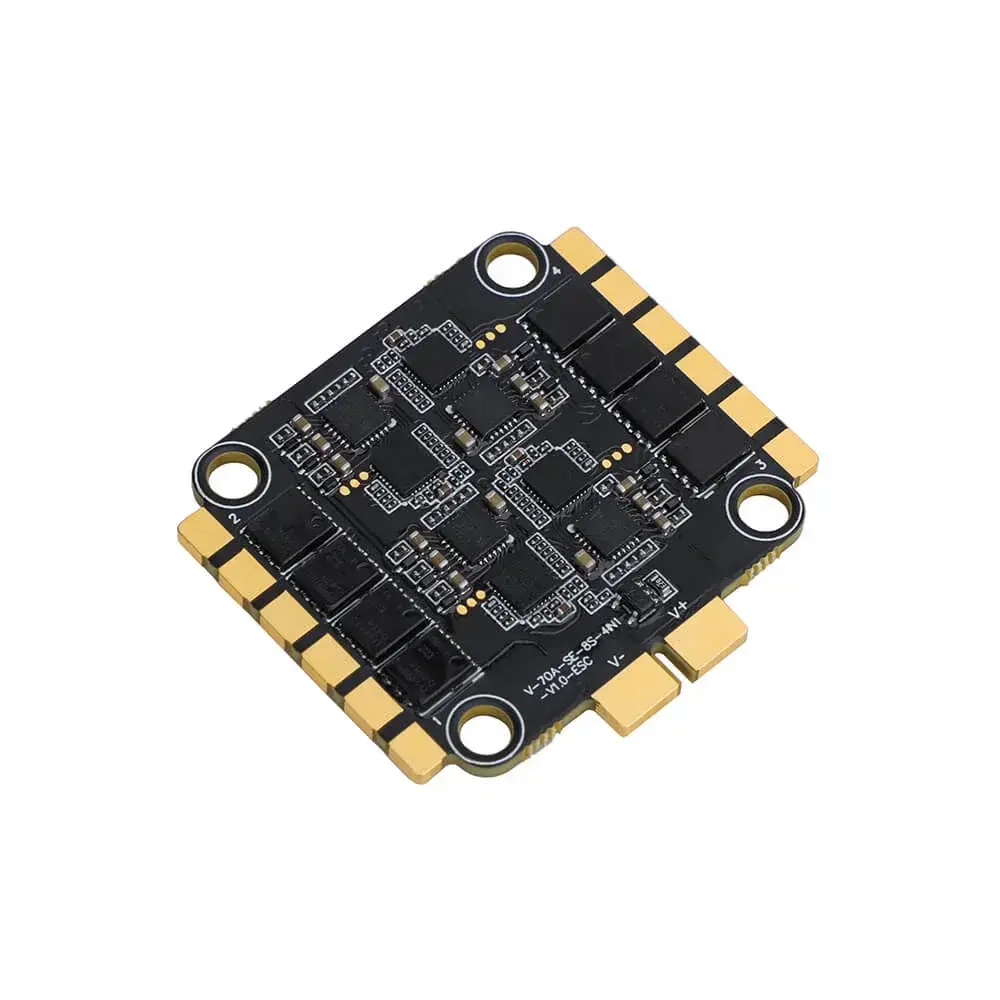

T-Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller
Massive performance and heavy-duty 8S power overhead for pros – Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller
The Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller is a cutting-edge hardware component engineered specifically for FPV pilots building custom commercial rigs. Implementing next-gen 32-bit AM32 firmware allows this ESC to unlock pristine motor responsiveness and exceptional torque management. With its stable support for up to 8S voltage and a robust 70A continuous current rating, this 4-in-1 controller provides immense power overhead needed when carrying heavy cinema cameras. Investing in the Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller guarantees maximum safety for your aircraft.
Key features of Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller
- 8S Voltage Capability – Seamless compatibility with up to 8S LiPo batteries, perfectly tailored for heavy cinematic payloads.
- Advanced AM32 Firmware – Next-gen 32-bit AM32 bootloader offers unparalleled motor control, higher efficiency, and a simplified configuration process.
- 70A Continuous Current – High current headroom ensures stable energy delivery to powerful motors without any thermal throttling risks.
- Integrated 4-in-1 Form Factor – Clean and compact layout that saves vital space within your frame while drastically reducing clutter.

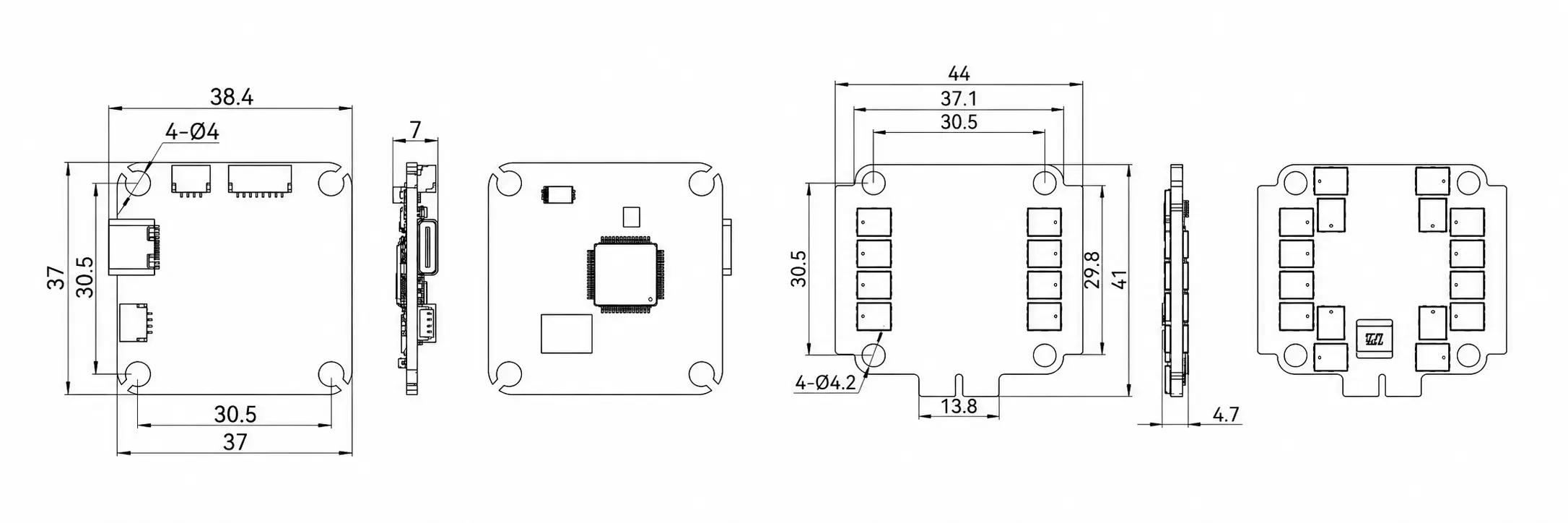

T-Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller Dimensions

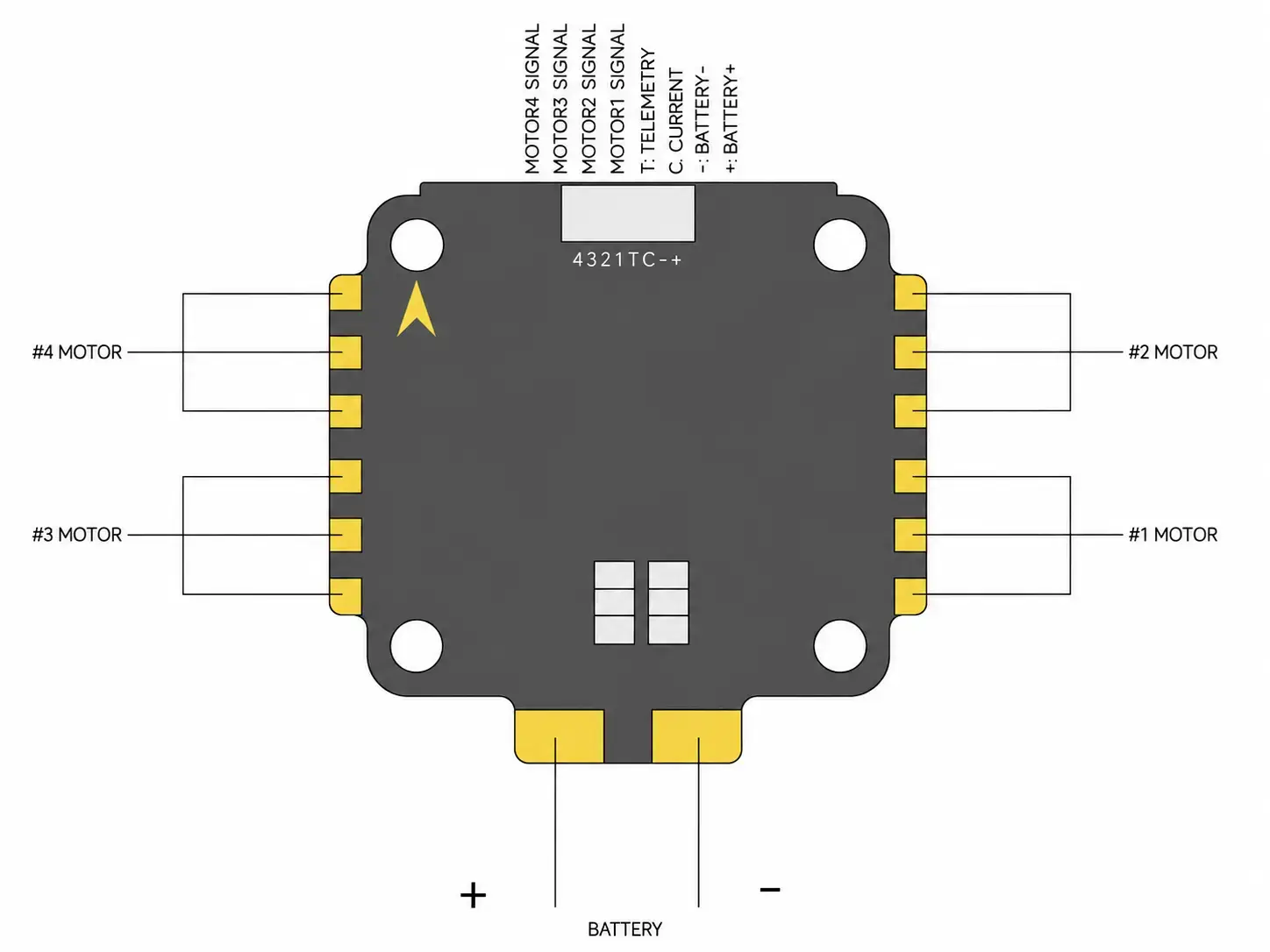

T-Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller Definition Figure

T-Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller Specifications
Continuous Current | 70A |
Peak Current | 75A |
Input Voltage | 4S - 8S LiPo |
ESC Firmware | AM32 |
ESC MCU | AT32F421 |
Power Layer Design | Optimized Multi-Layer PCB |
Blackbox Memory | 128MB |
USB Interface | USB Type-C |
Mounting Pattern | 30.5mm x 30.5mm |
Dimensions | 44.4mm x 41mm x 6mm |
Weight | 12.3g |
T-Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller Package Includes
- 1x T-Motor Velox V70A SE 8S AM32 4IN1 Electronic Speed Controller
- 1x Plug-in FC–ESC Cable
- 1x Mounting Hardware Set
- 1x User Installation Guide
