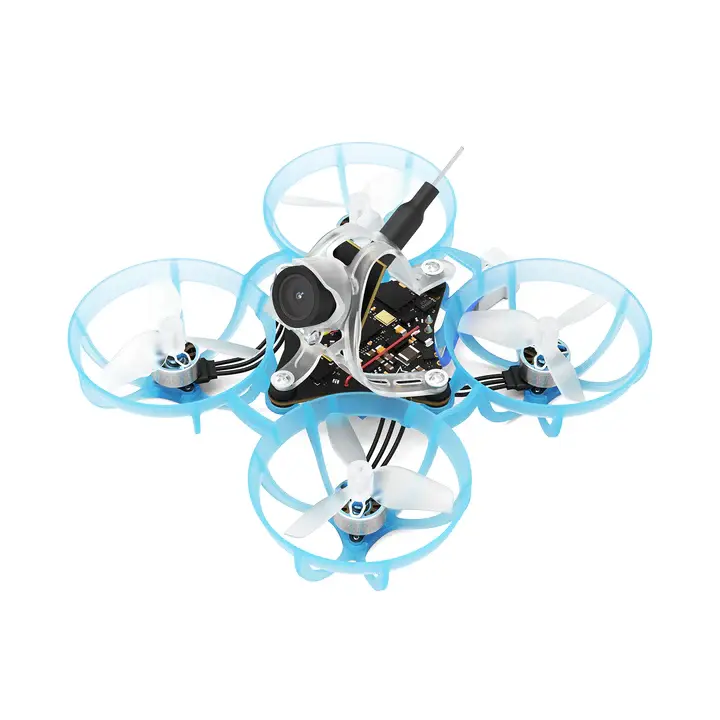

Air65 Brushless Whoop Quadcopter

Air65 Brushless Whoop Quadcopter - Light as a Feather, Fast as Lightning!

Defying gravity and embarking on an unforgettable journey with Air65! Prepare for an explosive, now upgraded and more impressive than the Meteor Series. Weighing a mere 17.3g yet boasts next-level performance. Equipped with Air Canopy, Air65 Brushless Whoop Frame, Air Brushless Flight Controller (5IN1), the Air65 is designed to push the limits of agility and speed. The optional LAVA 1S 260/300mAh Battery enhances the ultra-lightweight feature. With the upgraded 0702SE II Brushless Motor, it offers two propulsion system versions: Racing and Freestyle. Whether you crave high-speed agility or smooth, fluent flight, Air65 fulfills every pilot's desires. It reigns as the Ultralight King and Reaction Giant!

Experience a New Level of Lightweight Racing and Freestyle Version

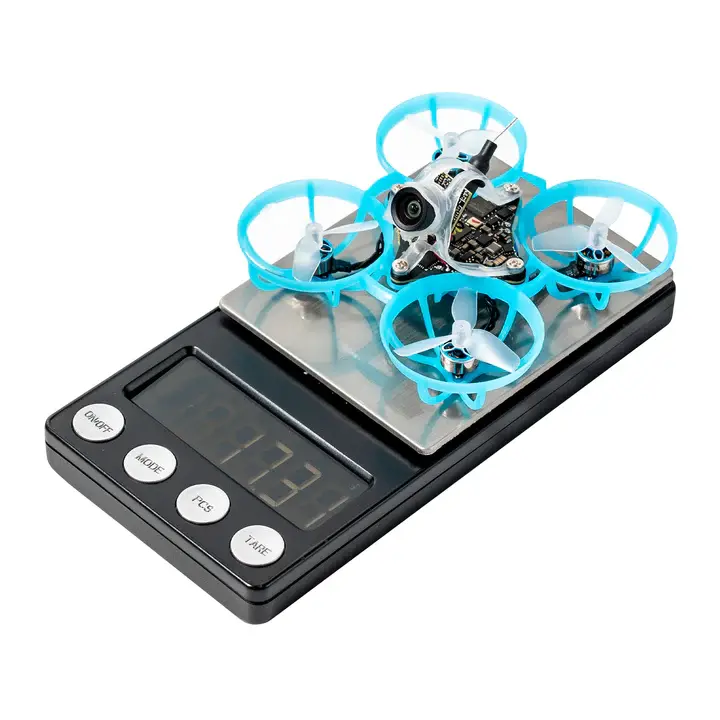

Weighing in at just 17.3g, it offers an exhilarating and agile flying experience.

• Air Brushless Flight Controller (5IN1), the first 1S FC that features the G473 processor which has superior computing power, and is equipped with ICM42688P gyroscope. This all-in-one solution seamlessly integrates FC, ESC, OSD, Serial ELRS 2.4G RX and Onboard 5.8G 25mw~400mw VTX, while weighing just 3.6g.
• Racing/Freestyle Version Propulsion Systems have been upgraded to the 0702SE II motor, delivering a significant boost in performance. Specifically designed for the lightweight 65mm whoop, these systems provide an exhilarating flight experience tailored to meet the demands of every pilot.
• Discover the Air65, accompanied by the Z-Folding LAVA battery, enabling the ultimate lightweight flight experience. Take to the skies with unparalleled agility and weightlessness.

• Express your unique style with various part options. From 65mm frames to canopies and propellers, offering pilots a diverse selection of captivating colors. Combine with BETAFPV stickers to effortlessly give your drone a personalized look.

Air65 Brushless Whoop Quadcopter Specification

• Item: Air65 Brushless Whoop Quadcopter
• Weight: 17.3g
• Wheelbase: 65mm
• Frame: Air65
• Canopy: Air Canopy
• FC & ESC: Air Brushless Flight Controller (5IN1 Version)
• VTX: Onboard 5.8G 25mw~400mw VTX
• Camera: C03 Camera
• Motor: 0702SE II|27000KV (Racing Version), 0702SE II|23000KV (Freestyle Version)
• Propeller:  GF 1219S 3B (racing version), HQ 31mm Ultralight (freestyle version)
• Battery Connector: BT2.0 U Cable Pigtail
• Recommend Battery: LAVA 1S 260/300mAh
• Flight Time (4.35V-3.3V): 4min (LAVA 260mAh)

• RX Version: Onboard ELRS 2.4G

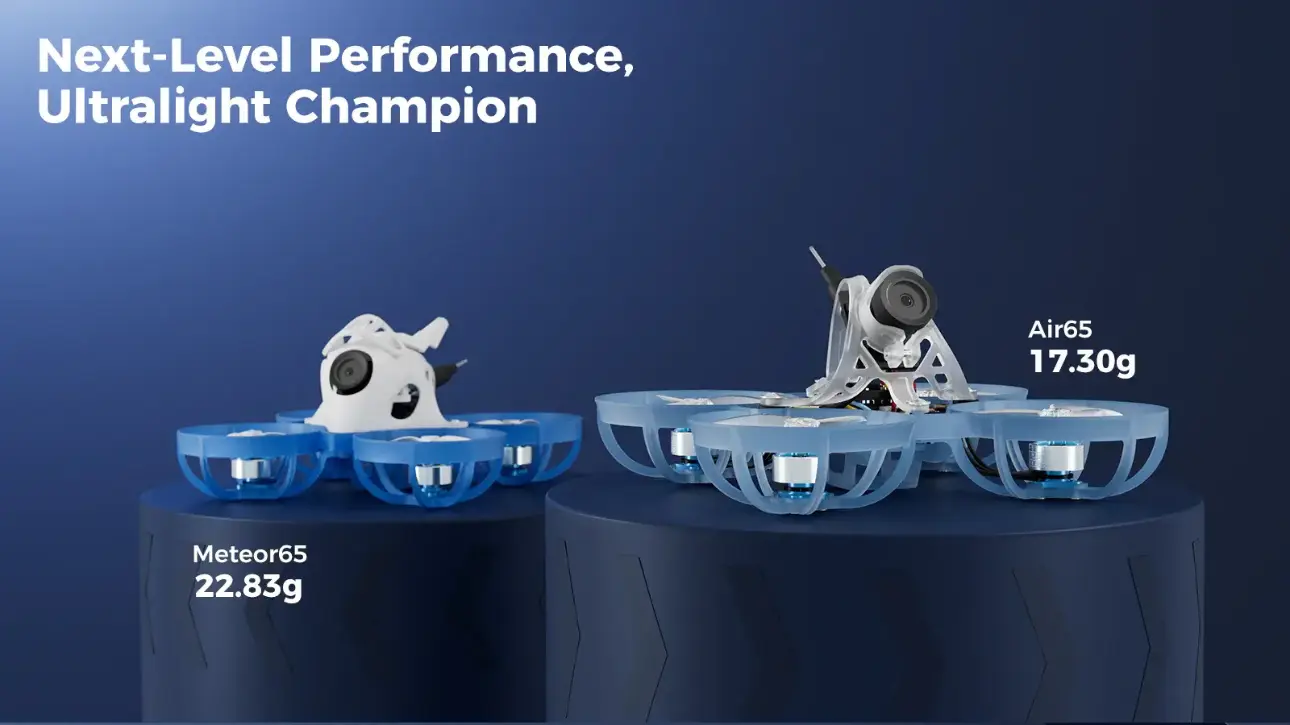

Air65 VS Meteor65

Flight Controller & ESC

The Air65 is now equipped with the Air Brushless Flight Controller (5IN1), featuring the advanced G473 processor, which provides superior computing power and lightning-fast response times—a significant upgrade over the F411 used in the Meteor65. Weighing just 3.6g, it integrates FC, ESC, OSD, VTX, and RX into a compact design, simplifying setup and maintenance while striking the perfect balance between performance and lightness. Powered by the industry-leading ICM42688P gyroscope and a custom micro-sized OSD chip, the Air65 delivers smoother, more responsive control. With multiple UART ports for flexible function expansion, the Air65 is designed for seamless integration into both racing and freestyle FPV, offering unmatched precision and fingertip control.

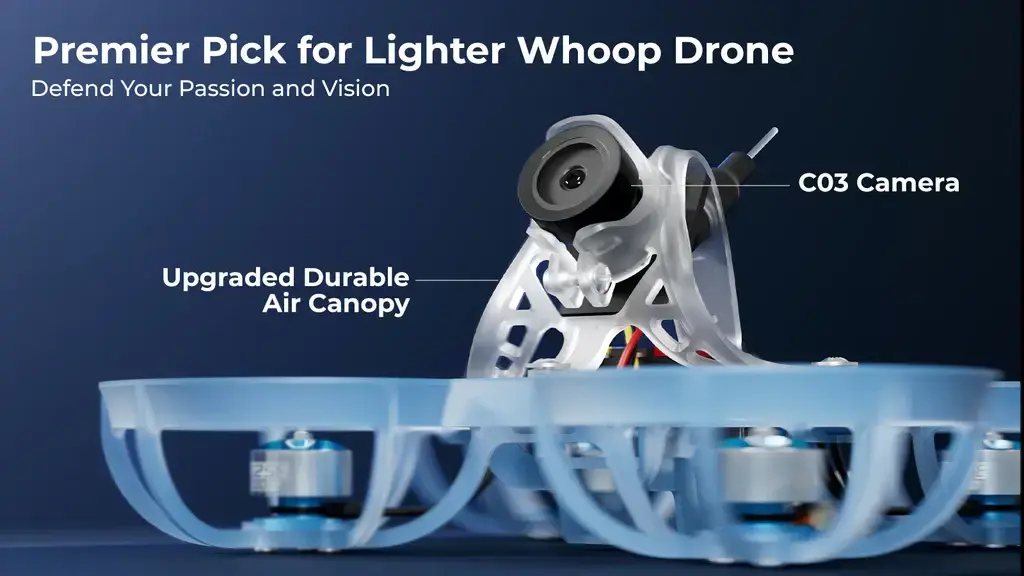

Upgraded Air Canopy

Experience high-quality, clear, and sharper images with the lightweight C03 FPV Micro Camera, weighing just 1.45g. We've redesigned the Air Canopy structure to be more flexible, impact-resistant, and durable. The improved bending effect enhances flexibility, reduces the chances of breakage, and greatly enhances explosion resistance for easier installation. Effortlessly accommodates an assortment of Micro and Nano Analog cameras. Supporting angle adjustment from 25° to 50°. With it, Air65 can chase the limit of freestyle and racing victory worry less.

Propulsion System

Powered by the upgraded 0702SE II Brushless Motors, Air65 takes propulsion and performance to new heights. Whether it's the Racing or Freestyle Version, the Air65 is designed to maintain exceptional agility and precision, perfectly suited to conquer racing tracks or freestyle flights with ease.

The Racing Version now boasts a 12.7% thrust-to-weight ratio boost, reaching 5.82:1 with 0702SE II|27000KV Motors for explosive speed. The Freestyle Version sees a 13% improvement to 5.26:1 with 0702SE II|23000KV Motors, offering fluid control and precise movements. Paired with lightweight GF 1219S 3B and HQ 31mm 3B props, it excels in both speed and maneuverability.

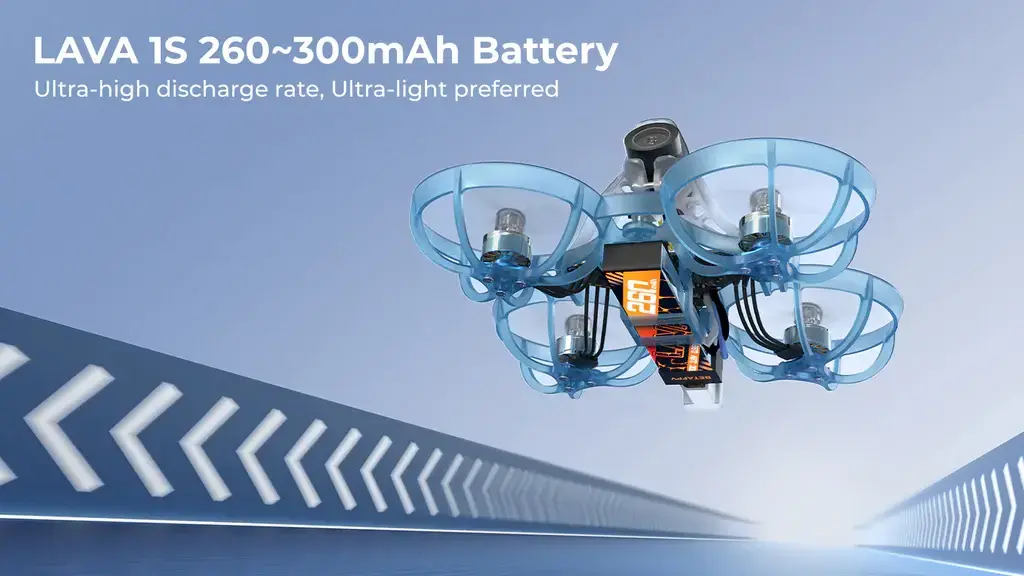

Powerfull Energy Source

The Ultralight LAVA 1S 260/300mAh Battery is a compact premier for Air65. With more concentrated center gravity, it offers crisper response, greater acceleration, and enhanced maneuverability. Featuring the groundbreaking Z-Folding Process, this LiHV battery exceeds conventional capacity and discharge thresholds. And equipped with the BT2.0 U Cable Pigtail, saying goodbye to folding cables, for easy plugging and an extended lifespan. Lighter weight by reducing pigtail length. Achieve the ultimate lightweight choice for drone racing or freestyle.

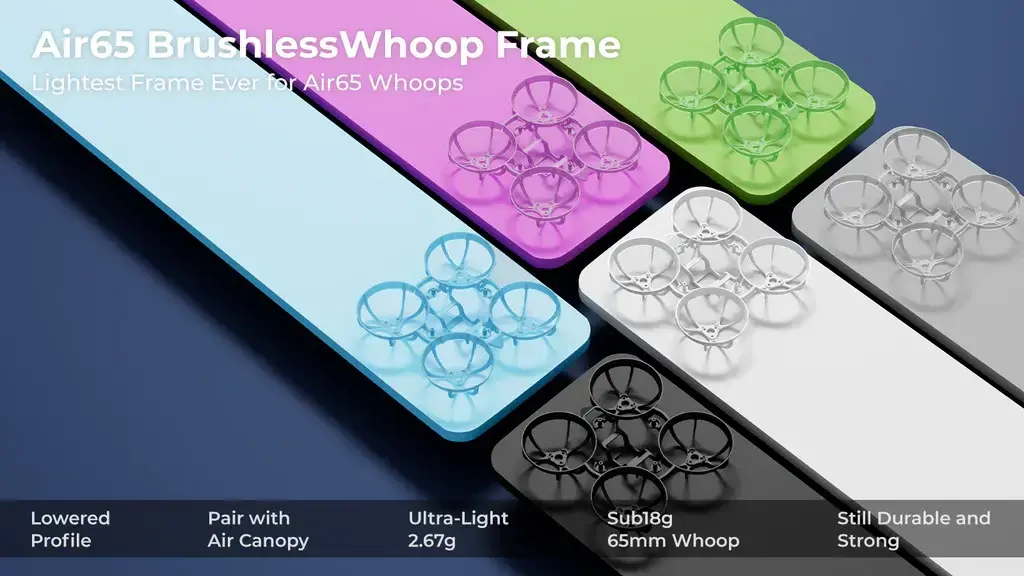

Air65 Frame

To enhance the flying experience, DIY enthusiasts have diligently worked on reducing the weight of the 65mm whoop drones, especially frames for an ultra-light structure. We upgraded the Meteor65 Micro Frame to the Air65 Frame, which achieves a remarkable weight lighter from 3.64g to 2.67g. It maintains exceptional strength and durability while introducing a new motor fixed slot, and optimizing a low-profile design. Having 6 color choices, it indisputably emerges as the top topgallant choice for pilots seeking an unparalleled ultra-light Sub18g 65mm 1S Whoop drone and personality.

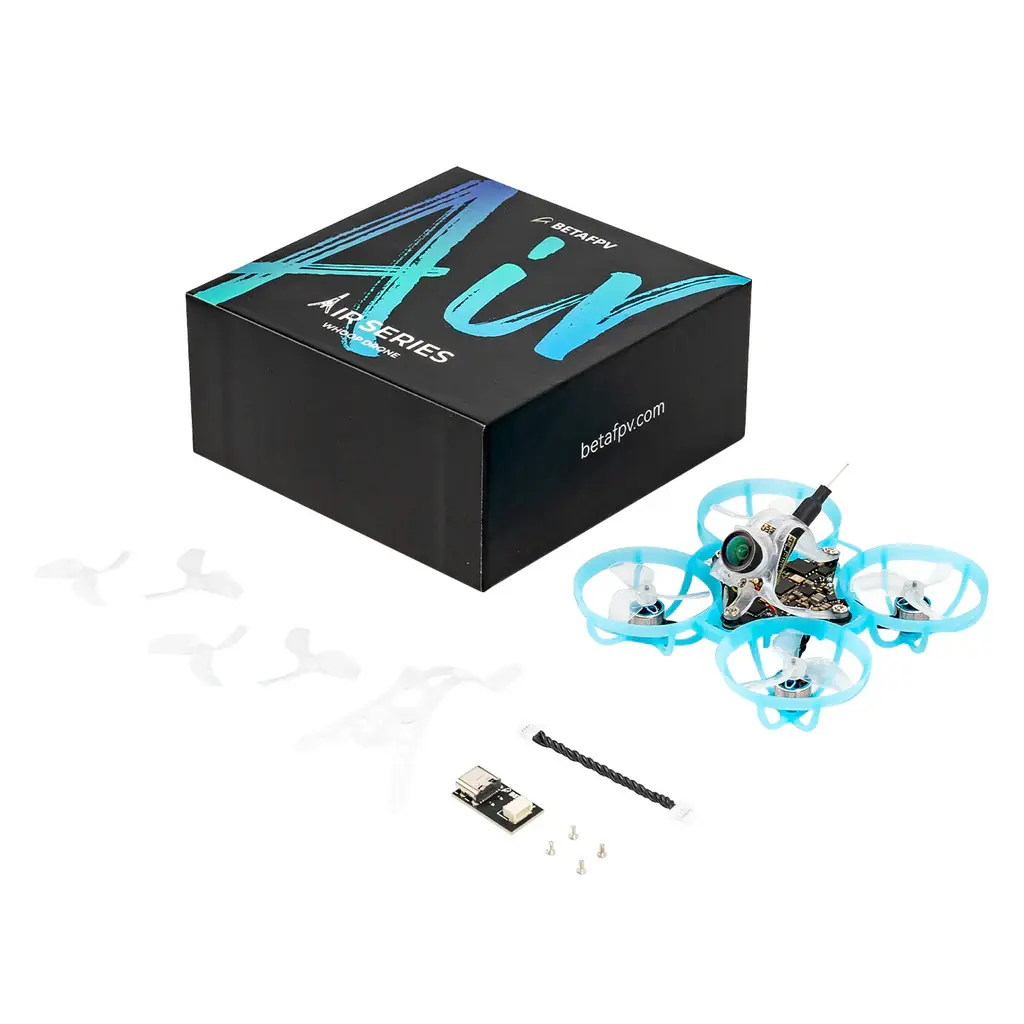

Air65 Brushless Whoop Quadcopter Package Detail

• 1 * Air65 Brushless Whoop Quadcopter (Freestyle or Racing)
• 1 * Air Canopy
• 4 * GF 1219S 3B Props (Racing Version) / HQ 31mm Ultralight 3B Props (Freestyle Version)
• 1 * Pack of Screws
• 1 * 4Pin Adapter Cable

• 1 * USB Type-C Adapter Board
