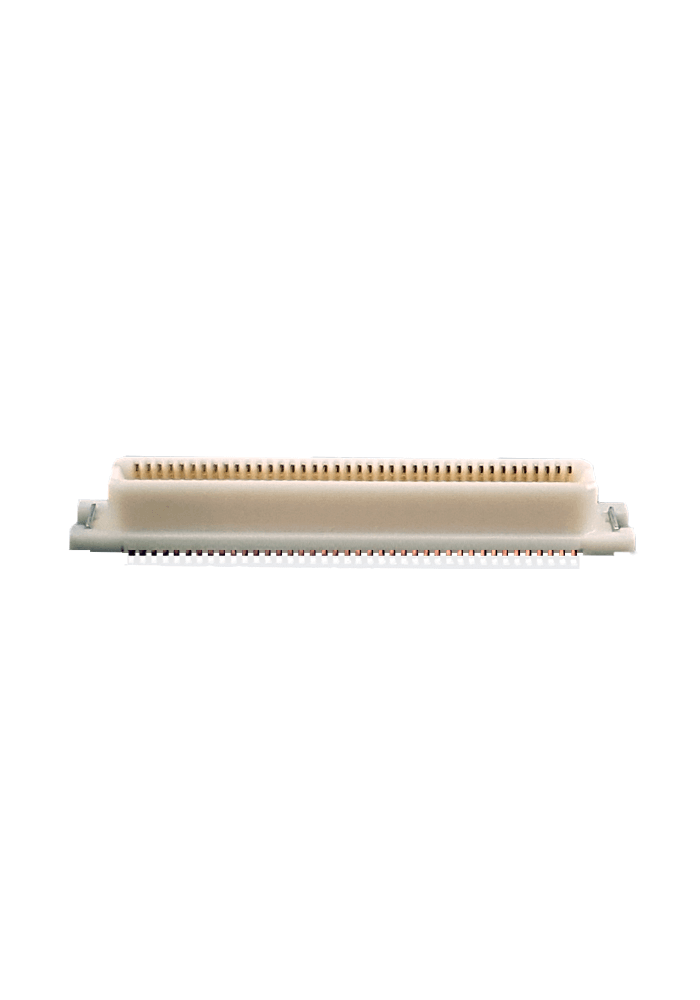

DF17 Connector
The DF17 Connector is a compact 80-pin interface used in the Cube (Pixhawk 2.1) autopilot system. It connects the flight controller to the carrier board and enables communication with sensors, GNSS, power modules, and other peripherals. Developers now have full flexibility to create hardware tailored to their specific drone or robotics applications by mounting this connector on custom-designed carrier boards.
Design Custom Carrier Boards for The Cube Orange+ Using 80-Pin DF17 Connector
Fits The Cube Flight Controllers.
80 pin connector DF17 matched to the Pixhawk Cube. Thanks to the correct height of the connector, you can easily use The Cube in your projects. The socket is designed as a BOX structure and has increased resistance to improper use .
Frequently Asked Questions About the DF17 Connector
The DF17 Connector fits any carrier board designed for The Cube family — Cube Black, Cube Orange/Orange+, Cube Purple, Cube Yellow, and Cube Blue — since they all use the same standardized 80-pin DF17 interface.
80 positions, at a 0.5mm pitch — the same layout as the connector built into every Cube autopilot, so it lines up automatically.
No — it's a surface-mount (SMD) connector meant for reflow soldering onto a custom PCB, not a hand-solderable through-hole part. Plan your carrier board design and assembly process accordingly.
DF17 Connector Specification
Manufacturer | Hirose Electric |
Series | DF17 |
Pin count | 80 positions |
Pitch | 0.5mm |
Stacking height | 4mm |
Mounting type | SMD (surface mount) |
Compatibility | The Cube Black, Orange/Orange+, Purple, Yellow, Blue |
DF17 Connector Package Includes
- 1x DF17 Connector (80-pin, for mounting on a custom carrier board)
