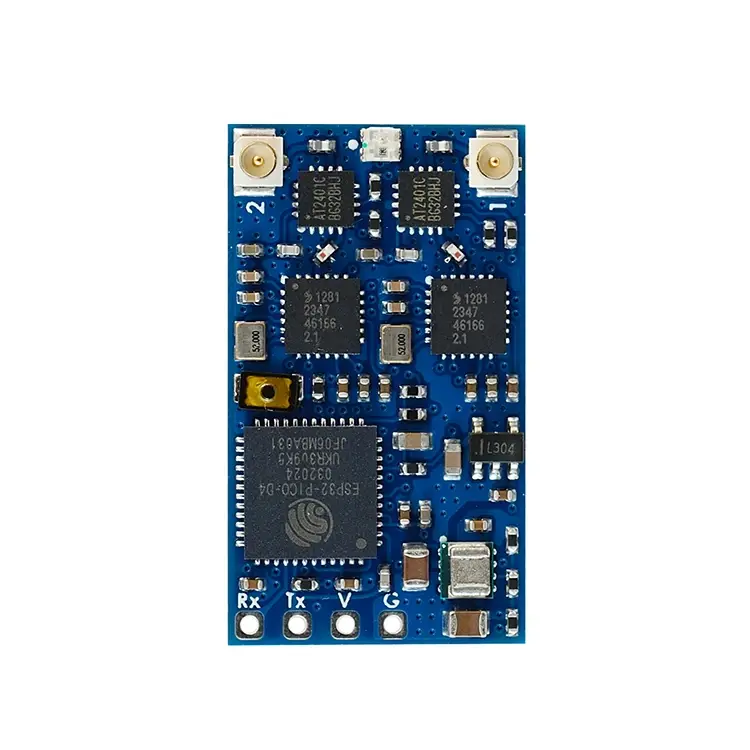

Matek R24-TD ExpressLRS 2.4G True Diversity Receiver

https://www.bzbuas.com/web/image/product.template/1349/image_1920?unique=d409030

The Matek R24-TD is a 2.4 GHz ExpressLRS receiver with true diversity — it uses two independent RF receiver chains and dual antennas to ensure the best possible signal is always selected. Ideal for FPV and RC applications, it features a built-in LNA (Low Noise Amplifier) for improved reception and a PA (Power Amplifier) for strong telemetry transmission. Compact, reliable, and preloaded with ELRS firmware — perfect for demanding long-range or interference-heavy setups.

97.56 zł 97.56 PLN VAT Excluded
97.56 zł VAT Excluded
Price on request

    This combination does not exist.

    Reliable range and signal stability in any situation with ELRS 2.4G True Diversity Receiver, R24-TD

    The ELRS 2.4G True Diversity Receiver, R24-TD is an advanced device for demanding pilots. Based on the ExpressLRS 2.4GHz system and True Diversity technology, it provides double security and interference resistance, even in the most challenging radio conditions. The high telemetry power of 100mW guarantees a constant real-time view of flight parameters on your radio transmitter. This compact hardware can be easily mounted in most drone frames, giving you unmatched quality and a massive control link range.

    Key features of the ELRS 2.4G True Diversity Receiver, R24-TD​

    • True Diversity Technology: The Matek R24-TD True Diversity ExpressLRS 2.4GHz receiver utilizes two independent radio paths maximizing link quality and stability.
    • High Telemetry Power: Offers a return power of 20dBm (100mW), allowing for reliable telemetry readouts over long distances.
    • Wide Input Voltage Range: Support for 4V to 13V DC ensures easy integration with various power systems in the drone.
    • Wireless Updates (WiFi): The receiver features a built-in WiFi mode, enabling convenient firmware flashing and management via a web browser.
    • Visual LED Status: The built-in RGB LED clearly indicates the current operating mode (e.g., rainbow effect at startup, orange blinking in binding mode).

    RGB LED status information in ELRS 2.4G True Diversity Receiver, R24-TD

    Rainbow fade effect

    Green heartbeat

    Slow blink 500ms on/off

    Red flashing 100ms on/off

    Orange Double blink then pause

    Orange Triple blink then pause

    Solid single color Connected to a transmitter

    RGB LED doesn’t light up

    Starting Up

    Web update mode enabled

    Waiting for connection from transmitter

    Radio chip not detected

    Binding mode enabled

    Connected to transmitter but mismatched model-match configuration

    color indicates packet rate

    Boot mode

    Useful information about the ELRS 2.4G True Diversity Receiver, R24-TD

    Firmwares

    • Receiver Target:  Generic ESP32 True Diversity PA 2.4Ghz RX /or RadioMaster RP4-TD /or HappyModel EP Dual
    • Any of variants based on Target “Generic ESP32 True Diversity PA 2.4Ghz RX” can be flashed.
    • Receiver has ExpressLRS 3.3.2 preloaded with binding phrase “123456”,  the Receiver will never enter binding mode if using the traditional binding procedure.
    • You need to reflash it with your binding phrase OR connect it to your PC/phone via WiFi and set your binding phrase in WebUI.

    ​Flashing via Wifi

    • Power on receiver. RGB LED Rainbow fade effect at first, then Slow blink 500ms on/off.  after 20s,  Green blink indicating it’s on Wifi Hotspot Mode.
    • Wifi SSID “ExpressLRS RX”,  Password “expresslrs”

    Flashing via UART

    1. Wire the receiver into the USB-TTL adapter, with TX on receiver connected to the Rx on the USB-TTL, and RX on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to 5V and GND of the Receiver.
    2. Press the boot button while powering on the receiver, then release – the RGB LED will not turn on.
    3. In Configurator,  Select the target Generic ESP32 True Diversity PA 2.4Ghz RX, or RadioMaster RP4-TD, or HappyModel EP Dual  and  “UART” for Flashing Method,  set your bind phrase and Firmware Options , Check “erase before flash” and “Force FLash “.
    4. Use Web-flasher

    Useful link for ELRS 2.4G True Diversity Receiver, R24-TD

    ELRS 2.4G True Diversity Receiver, R24-TD Specifications

    Firmware

    ExpressLRS Firmware

    Hardware

    ESP32-PICO-D4, SX1281

    PA/LNA

    AT2401C

    RF Frequency

    2.4GHz ISM

    Telemetry power

    20dbm (100mW)

    Diversity Type

    True Diversity

    Receiver protocol

    CRSF

    Antenna connector

    IPEX MHF-1

    Power supply

    4-13V DC @ “V” Pad

    Power dissipation

    100mA~170mA@5V IN

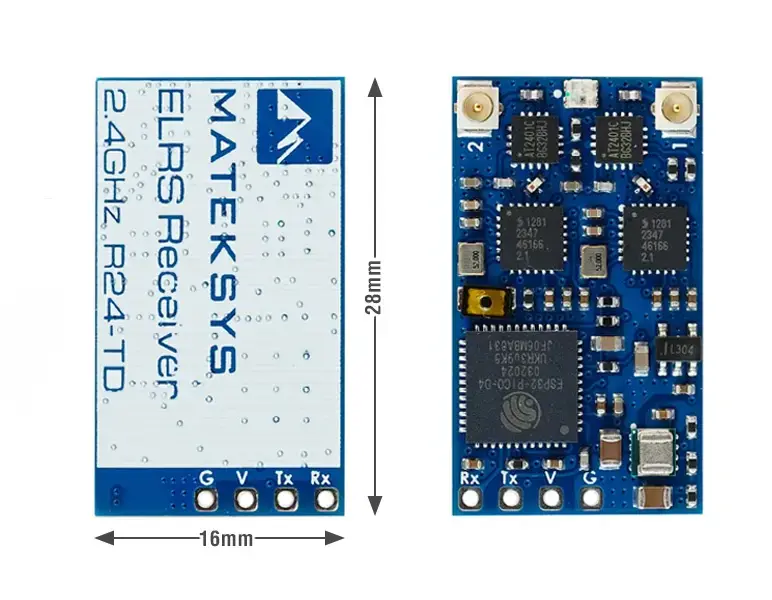

    PCB size

    28mm x 16mm

    Weight

    4g (w/ antenna)

    ELRS 2.4G True Diversity Receiver, R24-TD Package Includes

    • 1x ELRS-R24-TD

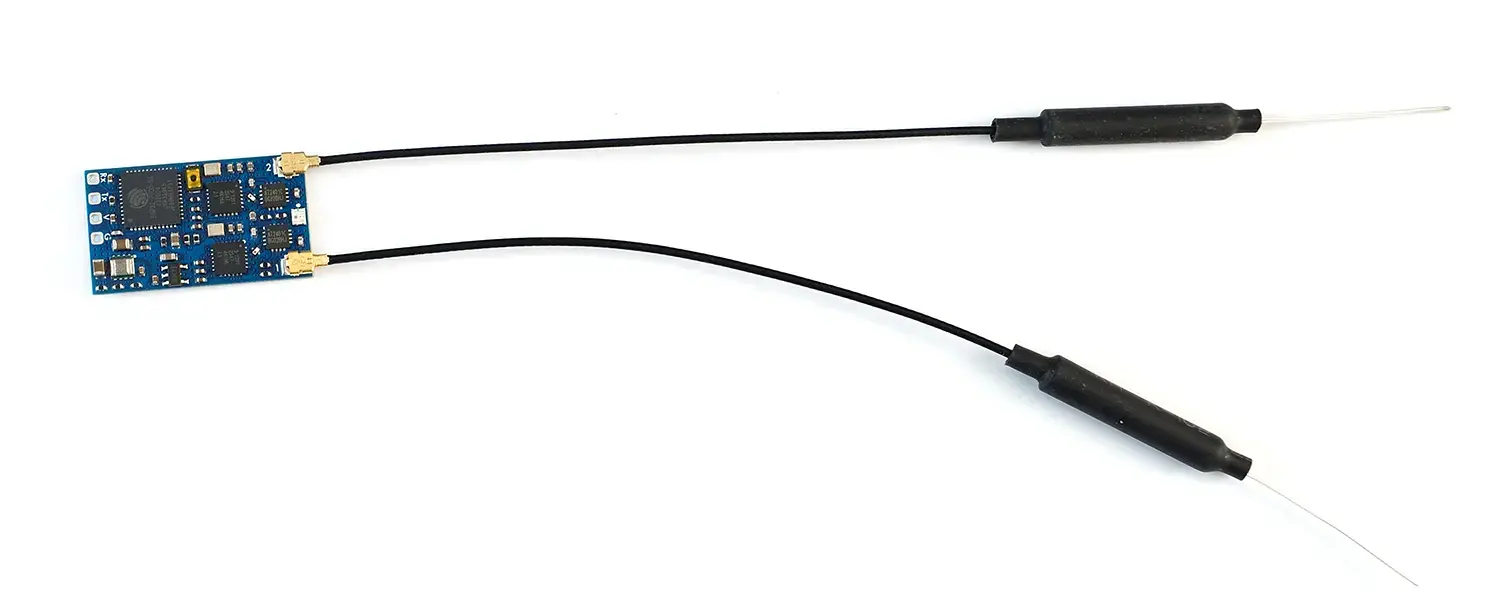

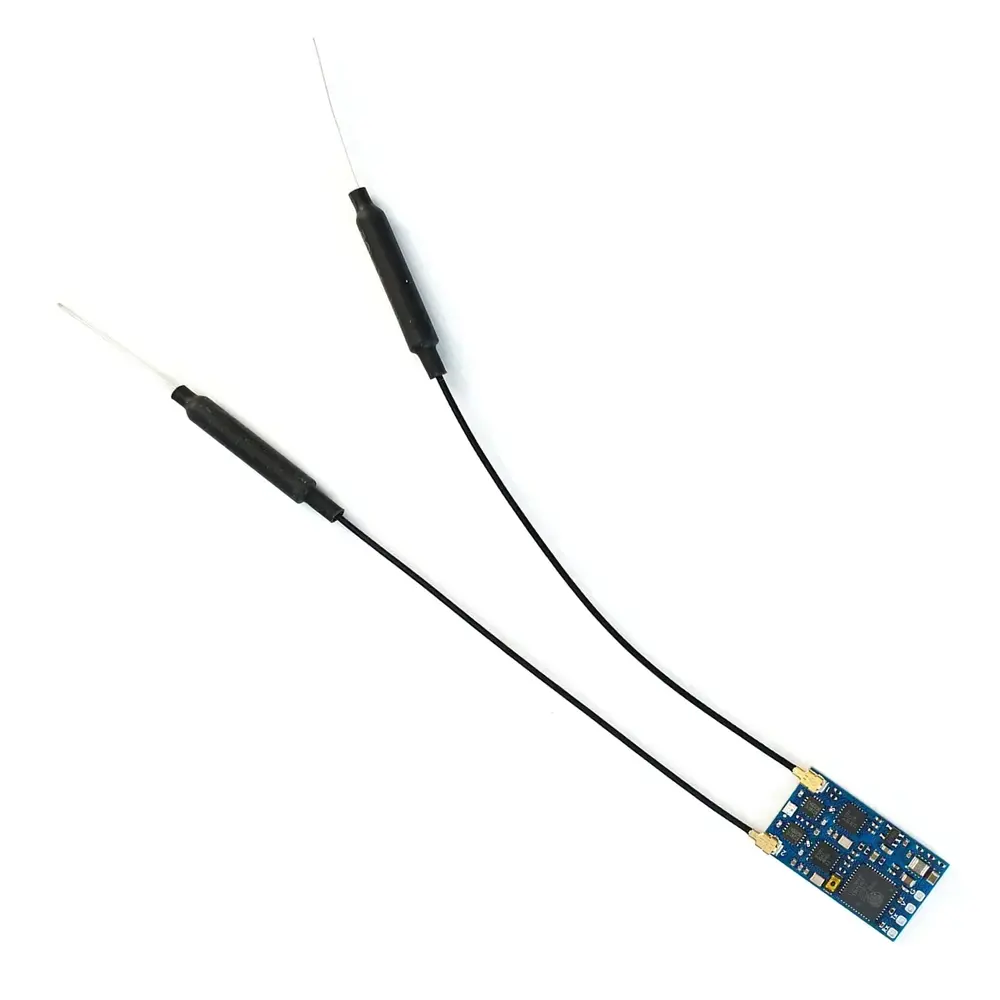

    • 2x IPEX MHF1 Antennas. 15cm
