Pioneer 3200mm VTOL KIT
Pioneer 3200mm VTOL KIT – Professional Fixed-Wing VTOL Platform for Heavy Sensors and Long Missions
Pioneer gives integrators the freedom to build the aircraft around the mission. It takes off and lands vertically, then transitions into efficient fixed-wing flight supported by a 100 dm² wing area. Payload capacity up to 5 kg provides room for LiDAR systems, mapping cameras, observation payloads, or custom equipment. The KIT is intended for teams that want to select and configure their own propulsion, autopilot, communication system, power architecture, and mission payload.
One Platform, Built for Real Missions
From large-area mapping to inspection and observation tasks, the Pioneer 3200mm VTOL KIT can be configured around the mission you actually need to perform. Vertical takeoff and landing make it practical in locations without a runway, while efficient fixed-wing flight helps cover wide areas and longer distances. It is a platform for users who want to build a UAV system around a specific application instead of being limited to a single closed configuration.
Photogrammetry and Surveying – for mapping flights, orthophotos, terrain models, and documentation of large project areas.
Infrastructure Inspection – for monitoring power lines, solar farms, pipelines, roads, industrial facilities, and other distributed assets.
Agriculture and Environmental Monitoring – for surveying crops, forests, reservoirs, and changes across wide operational areas.
Observation and Reconnaissance – for extended area monitoring, patrol-type missions, and operations over hard-to-reach locations.
Research and Custom UAV Projects – for teams building a platform around their own autopilot, communication system, sensors, and mission equipment.

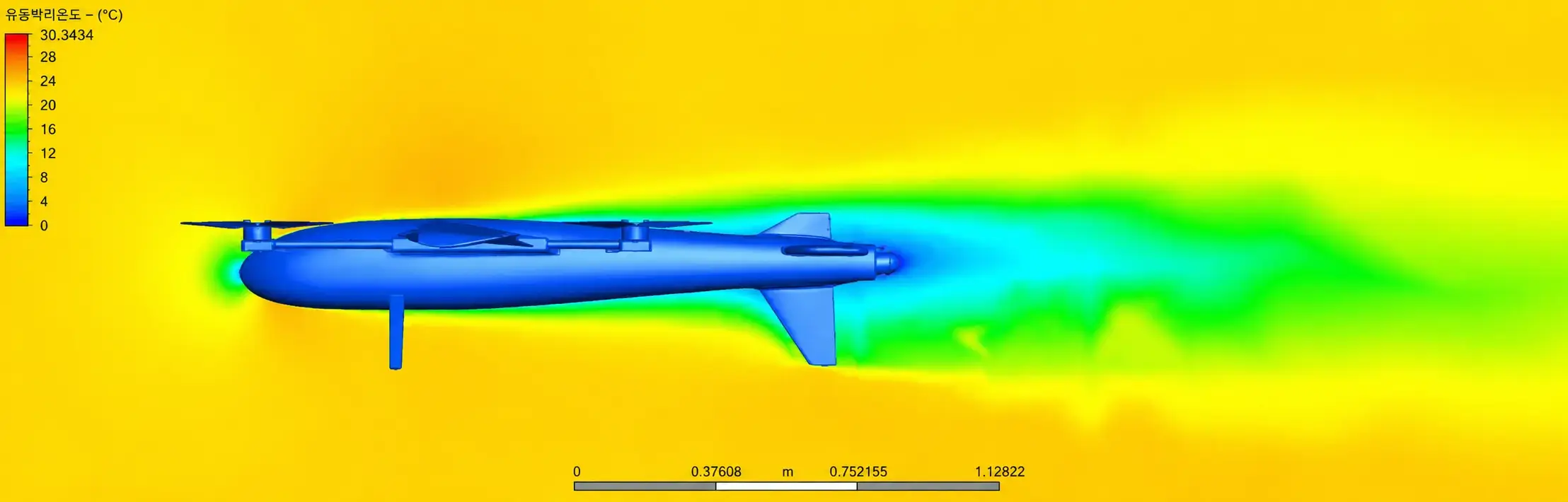

Every Detail Works Toward Greater Range
Pioneer 3200mm VTOL is designed for efficient fixed-wing cruise and extended missions across large areas. Its streamlined fuselage and refined airframe geometry help reduce drag and make effective use of the energy stored in the flight batteries. The result is a platform built for mapping, inspection, and observation missions with heavier payloads.
WARNING
Pioneer 3200mm VTOL KIT is a self-assembly aircraft kit. It is not supplied as a ready-to-fly drone. Depending on the selected version, it requires airframe assembly, propulsion and electronics installation, soldering, autopilot configuration, calibration, and pre-flight testing. This product is intended for users with experience in building and commissioning advanced UAV platforms.
What You Need to Complete the KIT Version
The KIT includes the airframe and mounting hardware, but the finished aircraft still requires VTOL and cruise propulsion, ESCs, propellers, servos, an autopilot, navigation, telemetry, power distribution, and flight batteries.
The products below are BZB UAS recommendations intended as a practical starting point. They are not the only possible options — other compatible components may be used when properly matched to the complete aircraft.
The Cube Orange+ Standard Set (ADS-B Carrier Board)
An autopilot and carrier-board foundation for an ArduPilot-based system.
A multiband GNSS receiver with RTK support and DroneCAN communication for precision mapping and surveying missions.
Digital AirSpeed sensor ASPD-DLVR
An airspeed sensor designed for ArduPilot-based fixed-wing, QuadPlane, and VTOL platforms.
A bidirectional telemetry system for communication between the autopilot and ground station.
Herelink 1.1 – HD Video Transmission System
An integrated RC controller, ground station, telemetry link, and HD video-transmission system. It may replace a separately assembled control and communication setup.
Propulsion, servos, propellers, batteries, and power distribution should be selected as one system based on takeoff weight, payload, operating voltage, and endurance requirements.

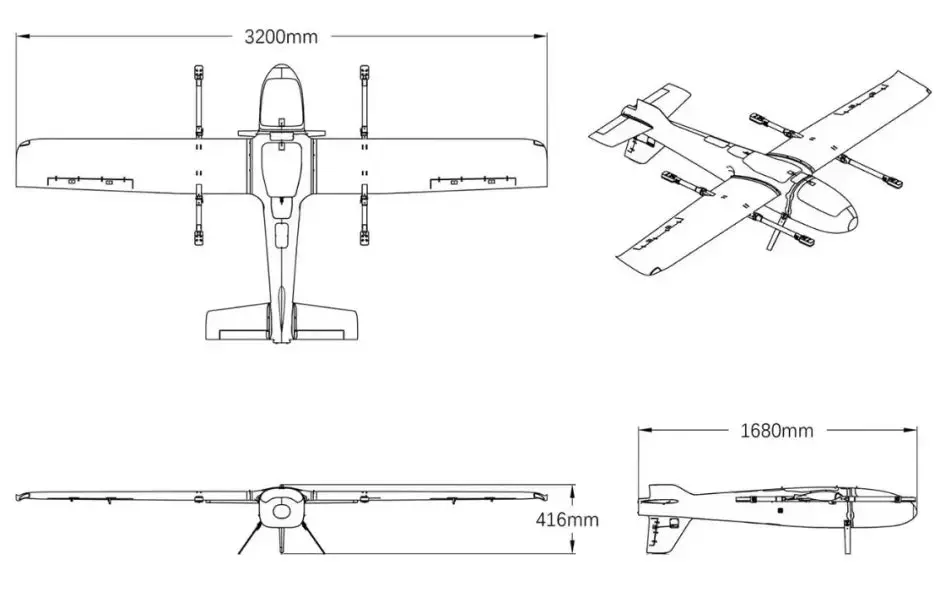

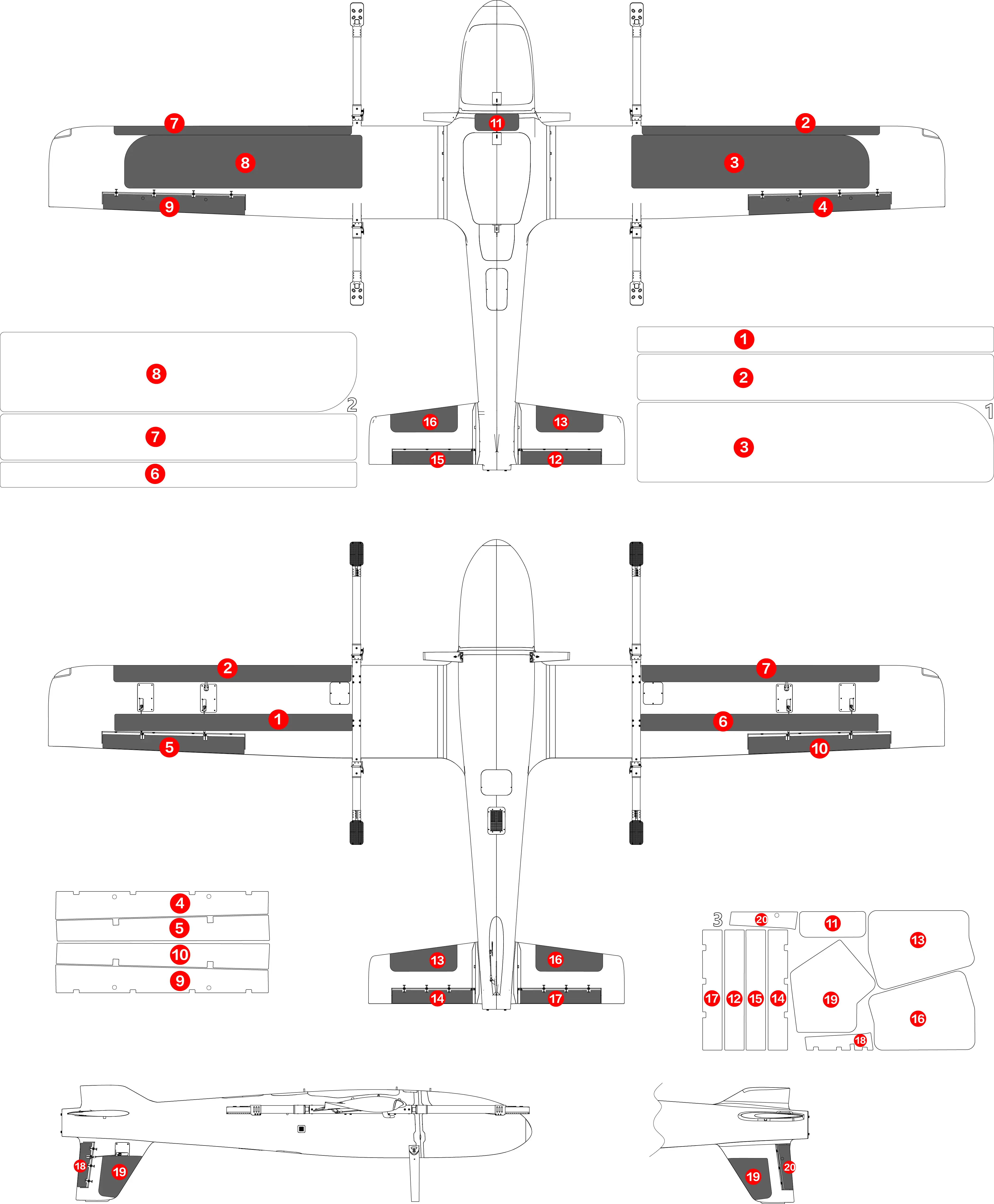

Pioneer 3200mm VTOL KIT Dimensions
Frequently asked questions - Pioneer 3200mm VTOL KIT
No. Pioneer 3200mm VTOL KIT is a self-assembly airframe intended for complete system integration. It requires propulsion, servos, avionics, power distribution, RC control, telemetry, batteries, and mission equipment.
Pioneer 3200mm VTOL KIT has a declared maximum payload of 5 kg. The manufacturer presents it as a platform for 3–5 kg LiDAR systems, although the usable payload in a completed build also depends on propulsion, batteries, mounts, and centre of gravity.
Endurance depends on the complete configuration. Published tests reported 230 minutes with a 1 kg payload, 210 minutes with a 3 kg payload, and 176 minutes with a 5 kg payload. These results are not guaranteed for every custom KIT build.
Yes. Pioneer 3200mm VTOL KIT is designed for topographic mapping, land surveying, engineering surveys, spatial planning, precision agriculture, and environmental monitoring. Its 5 kg payload capacity allows heavier LiDAR and imaging systems to be considered after full integration analysis.
Yes. The manufacturer provides a Pioneer SITL model, an ArduPlane 4.4.4 parameter file, and servo-function information. These resources are a starting point; the finished aircraft still requires individual configuration, sensor calibration, control-direction checks, failsafe setup, and VTOL-transition testing.
Pioneer 3200mm VTOL KIT Specifications
Model | Pioneer 3200mm VTOL KIT |
Material | EPO, EVA, Carbon Composity, Polycarbonate (PC), and Engineering Plastics |
Wingspan | 3200mm |
VTOL Arm Length | 1082mm |
Fuselage Height | 410mm |
Fuselage Length | 1680mm |
Aircraft Angle of Attack | 0 - 2° |
Wing Mounting Angle | 2.9° |
Max Climb Angle | 3.5° |
Max Dive Angle | 5° |
Max Roll Angle | 22° up, 28° down |
Ceiling Altitude | < 4000m |
Wind Resistance | Level 5 (Normal Operation) |
Wing Area | 100dm² |
Max Payload | 5kg |
MTOM | 24.9kg |
Take-off Mode | VTOL |
Stall Speed | 14m/s |
Conversion Speed | 16m/s |
Maximum Speed | 35m/s |
Transport Box Size | 1.46m x 0.46m x 0.53m |
Pioneer 3200mm VTOL KIT Package Includes
- EPO Parts
- 1x Left Wing Panel
- 1x Right Wing Panel
- 1x Left Fuselage
- 1x Right Fuselage
- 1x Battery Hatch
- 1x Canopy
- 1x GPS Hatch
- 1x Mounting-Type Nose
- 1x Left Horizontal Tail
- 1x Right Horizontal Tail
- 1x Right Vertical Tail
- 1x Left Vertical Tail
- 1x Belly Hatch
- Carbon Tube Parts
- 2x Fuselage Supporting Carbon Tube (21mm x 20mm x 387mm)
- 2x Horizontal Tails Carbon Tube (10mm x 8mm x 146mm)
- 2x Wing Sleeve (20mm x 17mm x 945mm)
- 1x Nose Connecting Carbon Tube (12mm x 10mm x 280mm)
- 1x Nose Connecting Carbon Tube (10mm x 8mm x 280mm)
- 2x Undercarriage
- 2x VTOL Boom
- 1x Undercarriage Reinforcement
- 2x VT Fiberglass Brace
- Metal Parts
- 2x Center of Gravity Suspension Ring
- 11x Metal Latching Hook
- 4x Motor Frame (VTOL Motor Mount)
- 4x Boom Locking Mount
- Plastic Parts
- 2x Wings Connecting Part
- 2x Tails Connecting Part
- 2x Head Connector
- 4x Wing Servo Fixing Part
- 3x Tail Servo Fixing Parts
- 2x Fuselage Vent Plate
- 1x Battery Fixing Board
- 5x Antenna Fixing Board
- 2x Airspeed Pitot Tube
- 2x Wing Wiring Hatch Cover
- 2x Fuselage Carbon Tube Reinforcement
- 2x Fuselage Wire Plate
- 1x ESC Cover Plate
- 1x Motor Mounting Mount (Cruise Motor)
- 1x Fuselage Tail Support
- 1x Belly Hatch Fixing Plate
- 1x Cabin Cover Fixing Board
- 1x Cabin Cover Fixing Board (GPS Cabin)
- Wooden Parts
- 1x Head Reinforcement Plate
- 2x Fuselage Tail Reinforcement Plate
- 1x Canopy Opening Reinforcing Plate
- 1x Module Cover Fixing Plate
- 1x Power Distribution Board Base
- 1x GPS Mounting Plate
- Other Fittings (Hardware & Accessories)
- 87x Round Head Flat Tail Screw (M2*8)
- 17x Round Head Flat Tail Screw (M2*10)
- 33x Gasket Screw (M2.6*8)
- 2x Center of Gravity Suspension Ring
- 2x Countersunk Self-Tapping Screw (M2*8)
- 20x Plastic Stud
- 25x Hexagon Nylon Stud
- 18x Hinge
- 10x Metal Latching Hook
- 6x Ball Head
- 3x Link Rod
- 7x Button Head Screw (M2*10)
- 7x Block Nut M2
- 5x Helmangle
- 2x Horizontal Tail Drive Stud (4.2-M2*8)
- 3x Button Head Screw (M2*10)
- 2x Transmission Leg of the Horizontal Tail
- 26x Heat Shrink Tubing (5mm x 15mm)
- 100x Heat Shrink Tubing (2mm x 15mm)
- 3x Plastic Latch
- 4x Boom Locking Mount (L&S)
- 2x Airspeed Pitot Tube
- 4x High-Current Connector 7W2
- 2x D-SUB Connector DB9P
- 3x Magic Tie Straps
- 5x Servo Fixing Parts
- 7x Single Head Servo Wire (Male), 30cm
- 7x Single Head Servo Wire (Female), 33cm
- 1x 12 AWG Silicone Wire (Red), 3.5m
- 1x 12 AWG Silicone Wire (Black), 3.5m
