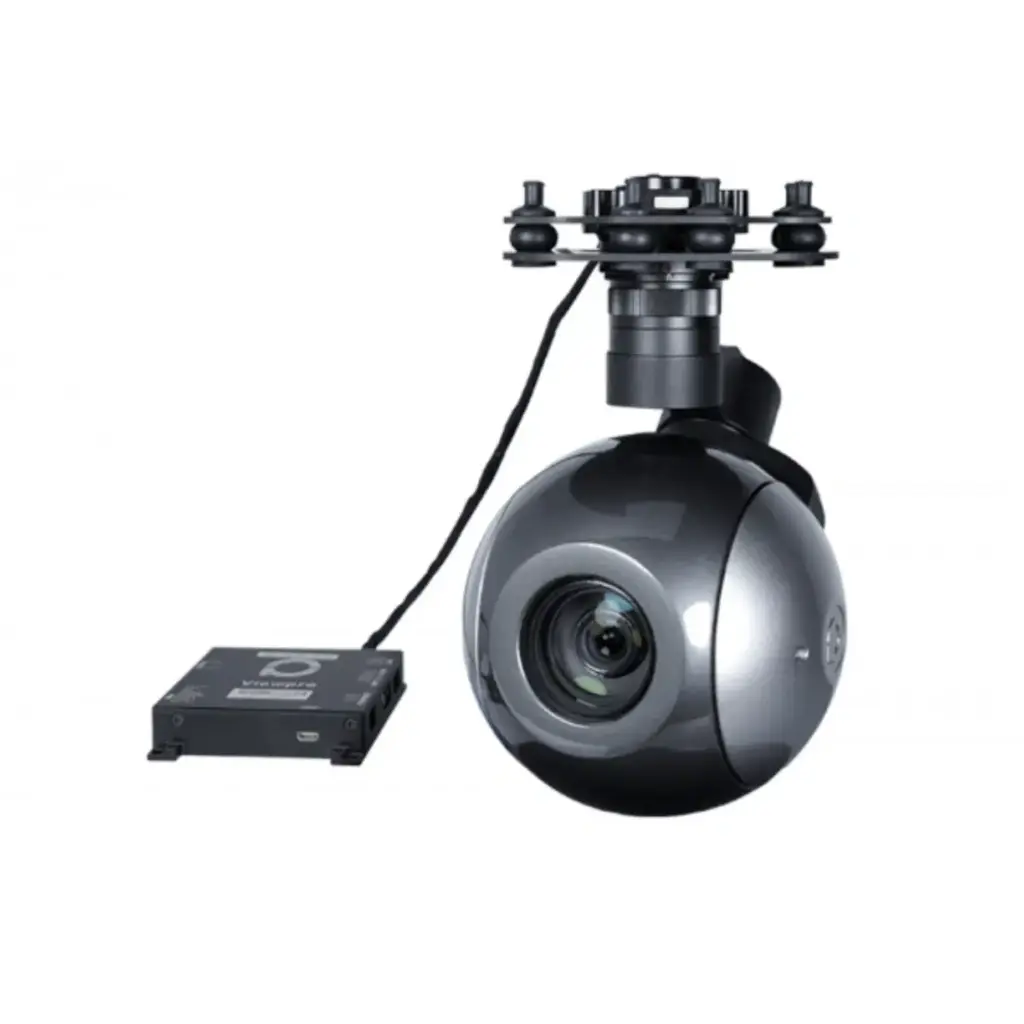

Viewpro Q40T Object Tracking Gimbal Camera
Q40T gimbal camera features an 40x optical zoom lens. It powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6, 2.13 million effective pixels, HD 1080p video, fast auto-focus speed, designed for UAV aerial photography. At the same time, Q40T can achieve target tracking. Factory, all the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then Ready to fly. The gimbal can be controlled in three directions: YAW, ROLL and PITCH, we use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at forty optical zoom times. Q40T have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
Viewpro Q40T Object Tracking Gimbal Camera – Precision Tracking with 40× Optical Zoom
The Viewpro Q40T is a professional-grade gimbal camera equipped with advanced object tracking and a powerful 40× optical zoom lens. Designed for aerial and ground-based platforms, it combines a high-sensitivity Sony Starlight sensor with intelligent tracking algorithms to ensure accurate target following and clear imaging, even in low-light conditions. Its 3-axis stabilized gimbal minimizes vibration and maintains smooth, steady footage — making it an ideal choice for surveillance, inspection, and tactical UAV operations.
SONY 40x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q40T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 40x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
Single Sensor Visible Light Camera Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 48pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Control Methods
Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP control.
Control Box Printing (Viewport Version)
Applications
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties
Viewpro Q40T Object Tracking Gimbal Camera Specification
Working voltage | 12V |
Input voltage | 4S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 500mA @ 12V |
Idle current | 400mA @ 12V |
Power consumption | ≤ 6W |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(HD output 1080P 60fps)/IP/SDI |
Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
Control method | PWM / TTL / S.BUS/TCP(IP Version) |
Netto Weight | 732g (Viewport Version) |
Product Measurement | 118.2*133.6*196.1mm |
Package (Plastic Box) Measurement | 275*230*165mm |
Gimbal Specification
Pitch/Tilt | ±90° |
Roll | ±85° |
Yaw/Pan | ±150° |
Vibration angle | Pitch/Roll: ±0.02° Yaw: ±0.03° |
One-key to center | √ |
Camera Specification
Imager Sensor | SONY 1/2.8″ “Exmor R” CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 40x F=4.25~170mm |
Digital zoom | x2 ~ x32 |
Min object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
Horizontal viewing angle | 1080p mode: 73.8° (wide end) ~ 2.16° (tele end) 720p mode: 66.35° (wide end) ~ 1.9° (tele end) SD: 39.98° (wide end) ~ 1.11° (tele end) |
Sync system | Internal |
S/N ratio | more than 50dB |
Min illumination | Color 0.01lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Onepush, Manual |
Shutter speed | 1/1s to 1/10,000s, 22 steps |
Backlight compensation | Yes |
Aperture control | 16 steps |
Defog | Yes |
OSD | Yes |
Camera Object Tracking Specification
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | <10ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 ~ ±192 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
Viewpro Q40T Object Tracking Gimbal Camera Package Includes
- 1x Viewpro Q40T Object Tracking Gimbal Camera
- 1x Viewport
- 8x M3 Screw
- 4x Copper Cylinder
- 2x Damping Ball
- 1x Micro-SD Card
- 1x TTL Connector Cable
- 1x PWM Control Cable
- 1x USB-TTL Cable
- 1x Ethernet Cable
- 1x Power Cable
- 3x TTL/SBUS Control Cable
- 1x Pelican Case
