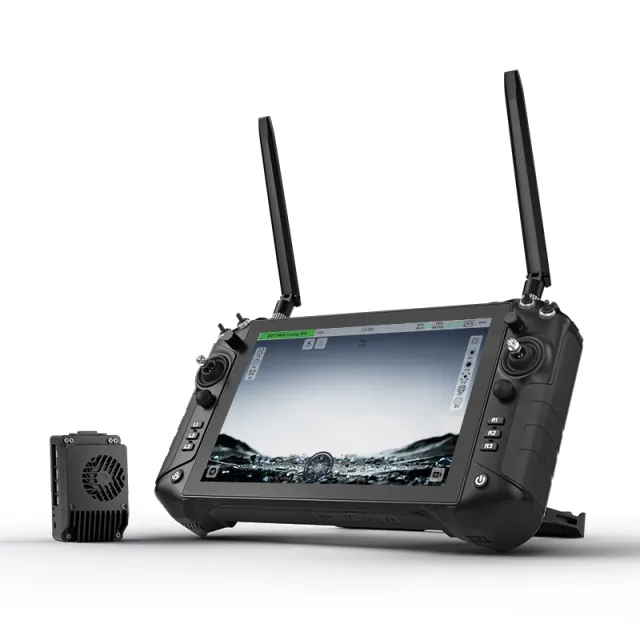

SIYI UniRC 10 Pro Handheld Ground Station
SIYI UniRC 10 Pro Handheld Ground Station - Triple-Frequency Control Platform
SIYI UniRC 10 Pro combines a large Android-based ground station with a multi-band communication system designed for demanding unmanned platforms. It brings vehicle control, video, telemetry and payload operation into one handheld unit, giving the operator a complete working environment instead of a conventional RC transmitter.

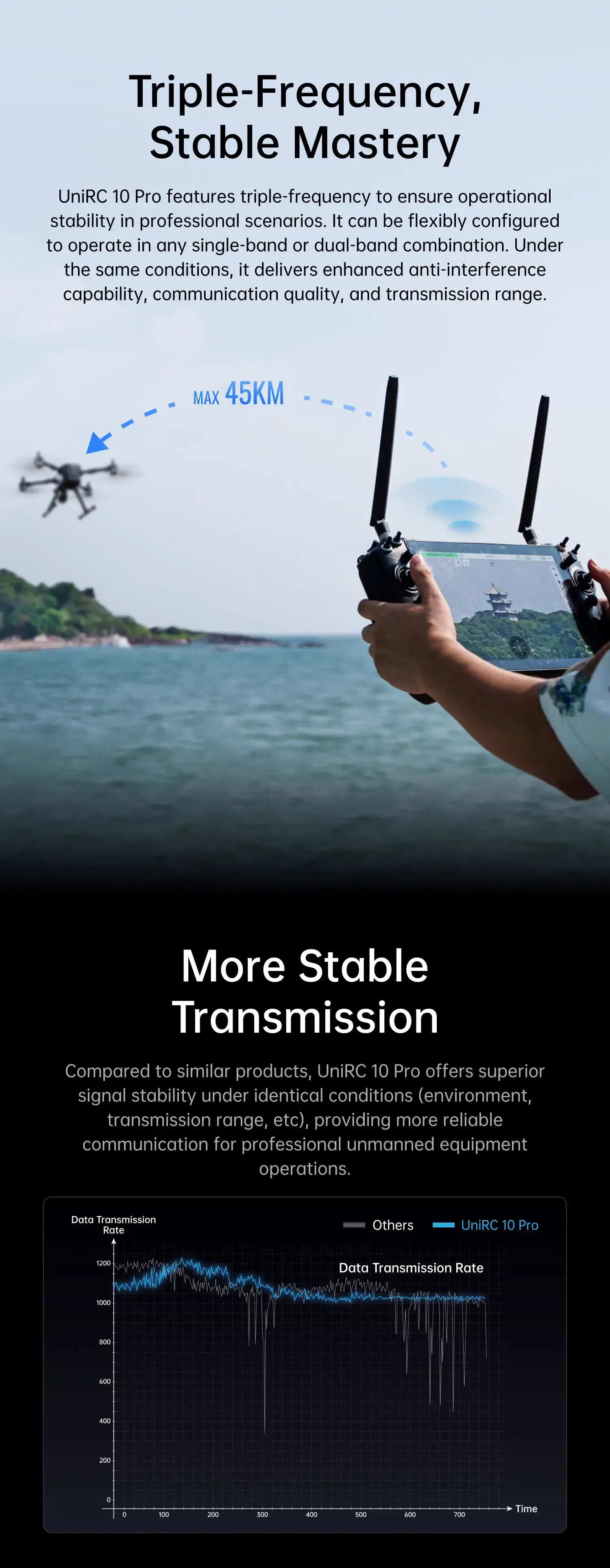

More Stable Communication Over Long Distances
UniRC 10 Pro can work in single-band or dual-band configurations, giving the communication system more flexibility when interference conditions change. In SIYI's maritime test at 120m altitude, with unobstructed line of sight and low interference, the system reached 35–45km. Real operating range depends on terrain, antennas, interference and the complete installation.
Adjustable Bandwidth and Adaptive Frequency Hopping
The operator can select 10MHz or 20MHz bandwidth depending on whether the priority is lower latency or smoother video transmission. Adaptive frequency hopping can also react to changes in the radio environment by adjusting the operating channel and link parameters, helping maintain communication when interference increases.

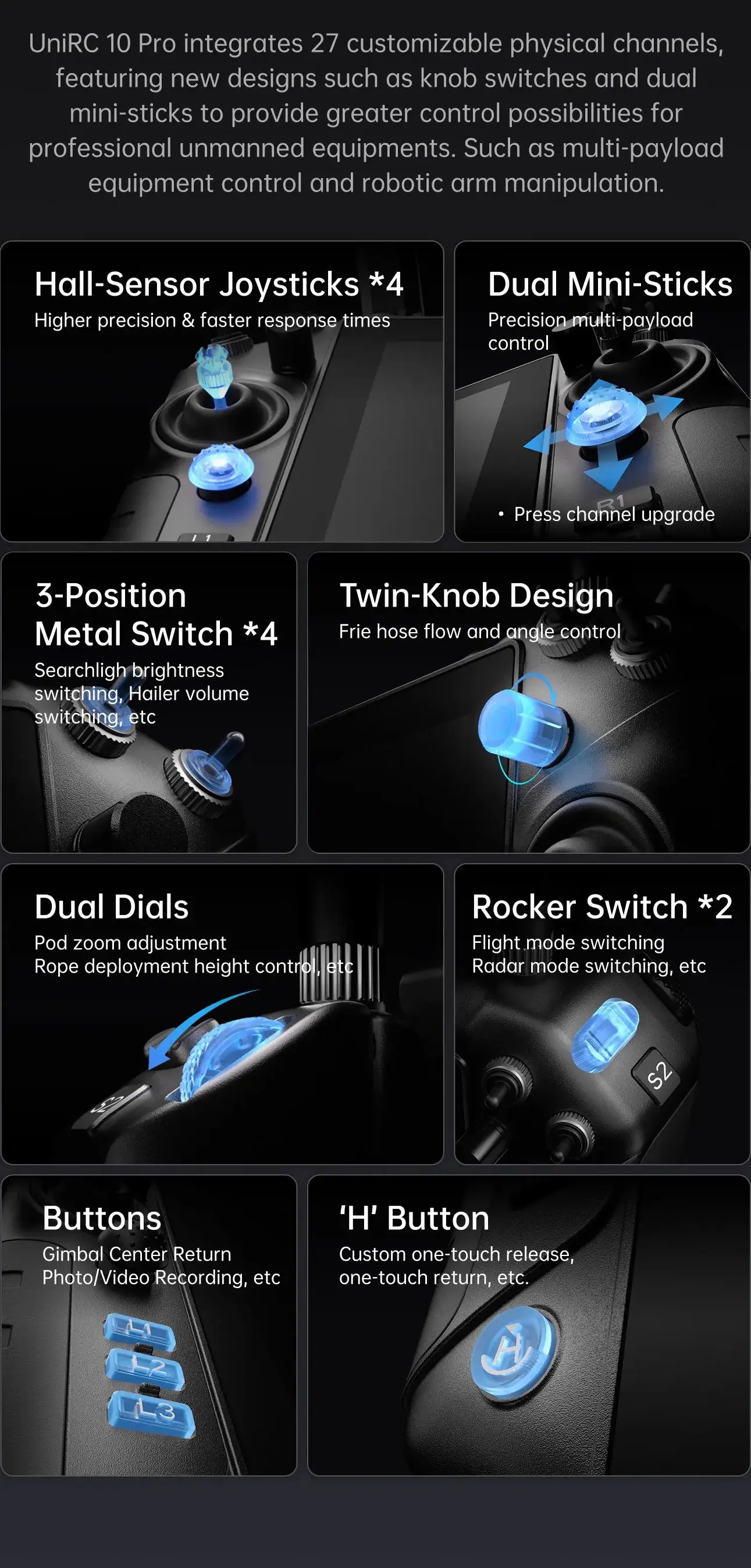

Physical Controls for More Than Just Flying
UniRC 10 Pro provides dedicated sticks, switches, dials, knobs and buttons instead of forcing every function onto the touchscreen. This gives the operator direct access to vehicle control and additional equipment such as compatible gimbals, cameras, searchlights or other payload functions configured in the complete system.

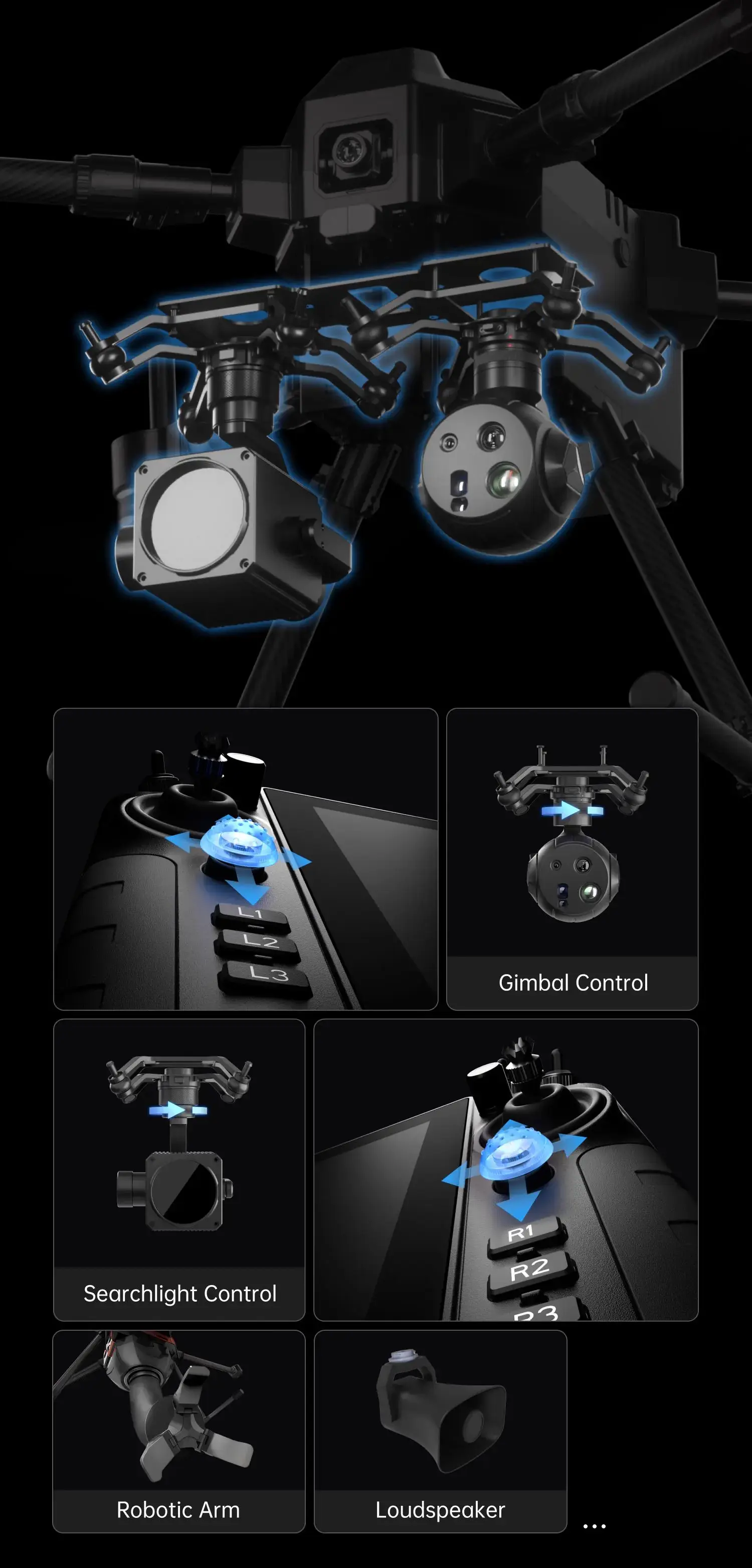

Dual Mini-Sticks for Precise Payload Control
The two Hall-sensor mini-sticks add proportional control for equipment that needs more than simple ON/OFF commands. One can be assigned to a gimbal while the other controls another payload function, allowing both hands to manage several systems without constantly moving back to the touchscreen.

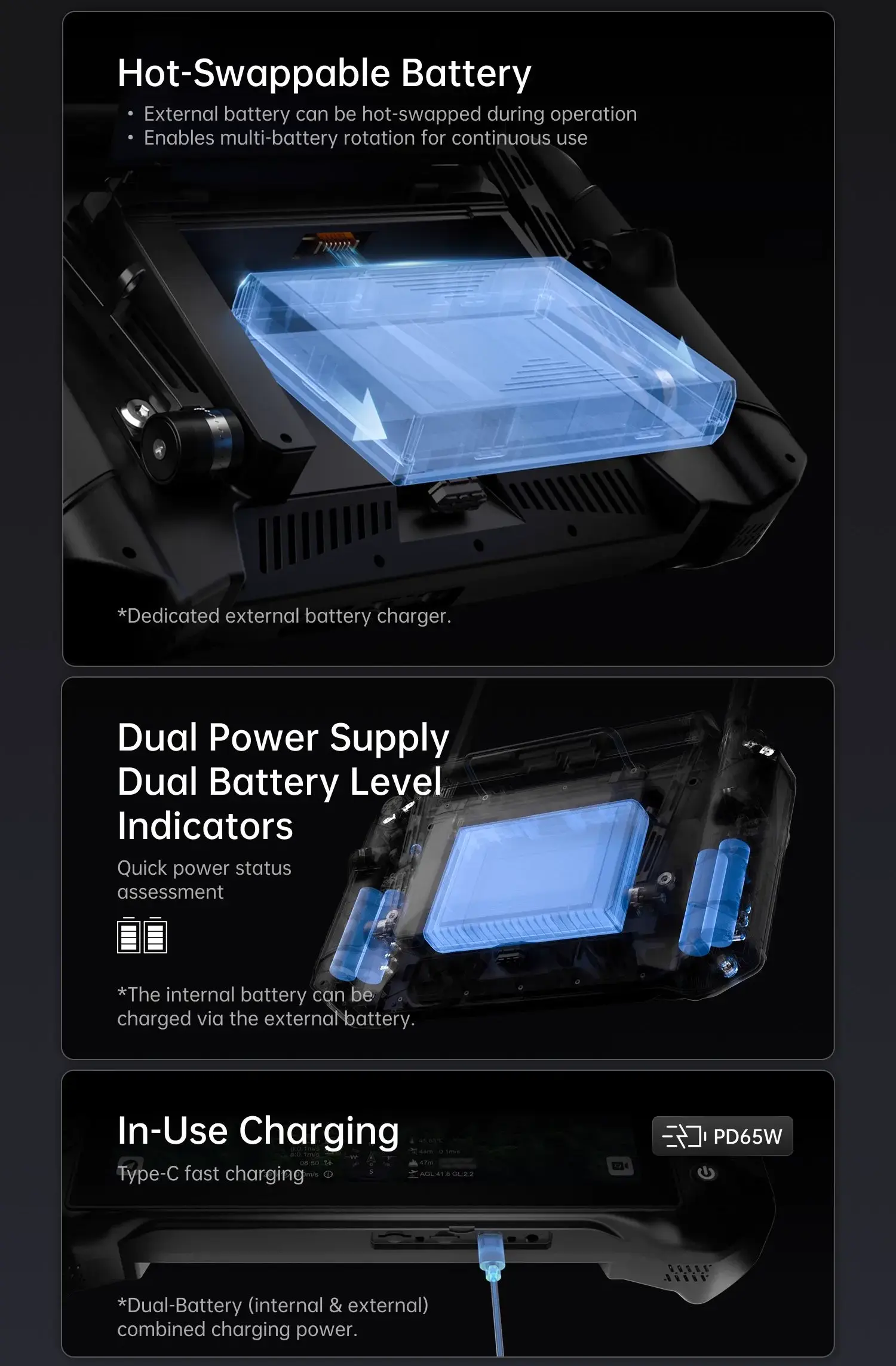

Hot-Swappable Battery for Longer Field Work
UniRC 10 Pro combines an internal battery with a removable external pack. When the external battery runs low, it can be replaced without shutting down the ground station because the internal battery keeps the system powered. The controller also supports USB-C PD charging during operation.
IP54 Protection for Field Operations
The IP54-rated enclosure helps protect the ground station against limited dust ingress and water splashes, while active internal cooling supports operation in demanding ambient conditions. UniRC 10 Pro is designed for outdoor field use, although IP54 should not be confused with complete waterproofing.
One Control Platform for UAVs, UGVs, USVs and Robotics
UniRC 10 Pro is not limited to aerial platforms. Its configurable physical controls, video and data link, network interfaces and software environment make it suitable for UAVs, UGVs, USVs and robotic systems after correct integration. The same ground station can therefore be adapted to very different machines and payloads instead of being tied to one aircraft type.
SIYI UniRC 10 Pro Handheld Ground Station Frequently Asked Questions (FAQ)
SIYI achieved 35–45km in a maritime test at 120m altitude with clear line of sight and low interference. In suburban conditions at the same altitude with low obstruction and moderate interference, the manufacturer's result is 20–25km. Actual range depends on the installation, antennas, terrain, interference and legal radio settings.
No. SIYI UniRC 10 Pro Handheld Ground Station can use a single band or a combination of two bands simultaneously. SIYI explicitly confirms that all three bands cannot operate together.
SIYI markets the product as 2.4 / 5 / X GHz, but its current public technical specification only gives exact values for 2.4GHz and 5.8GHz. The exact third-band frequency is not publicly specified and depends on the certified version and local radio regulations. It should therefore not automatically be described as full 8–12.5GHz X-band operation.
Connect the supplied 65W PD charger to the ground station's USB-C port. With the external battery fitted and the station switched off, SIYI allocates up to 25W to the internal battery and 40W to the external battery. With the station powered on, the distribution changes to 40W internal and 25W external. Charging both batteries takes approximately 4 hours.
An additional external battery can be inserted into the ground station and charged through its USB-C PD charging system. SIYI also states that an optional external-battery charger is supported for users who want to prepare additional packs separately. That charger is not listed as part of the standard UniRC 10 Pro package.
Yes. The external 13400mAh battery supports hot swapping. The internal 6700mAh battery keeps the controller powered while the external pack is removed and replaced.
Yes. SIYI specifically lists ArduPilot and PX4 as MAVLink-based ecosystems that can be integrated with UniRC 10 Pro. UniGCS is available for Android and Windows, and SIYI also publishes communication and SDK documentation.
SIYI UniRC 10 Pro Handheld Ground Station Schemmas
SIYI UniRC 10 Pro Handheld Ground Station Specifications
General
Model | SIYI UniRC 10 Pro Triple Frequency |
Typical Communication Range | 20–25km at 120m Altitude, Low Obstruction, Moderate Interference (Suburban) 35–45km at 120m Altitude, Unobstructed, Low interference (Maritime) |
Operating Frequencies | 2.4GHz / 5.8GHz |
Third Frequency Band | Marketed by SIYI as X GHz* *SIYI states that operation in additional frequency bands requires appropriate complete-device certification and compliance with local regulations. |
Simultaneous Frequency Operation | Up to 2 bands |
Video Transmission Bandwidth | 10MHz / 20MHz |
Maximum Data Bitrate | 65Mbps** **Measured by SIYI at 20MHz bandwidth with ground and air units in near-field, interference-free conditions. |
Video Decoding | Up to 4K 30fps |
Encryption | AES |
Physical Controls | 27 |
Buttons | 13 |
Operating Temperature | -20°C to 55°C |
Storage Temperature | -30°C to 45°C (Up to 1 Month) -10°C to 35°C (Up to 3 Months) -10°C to 30°C (Up to 1 Year) |
Ground Station
Display | 10.1 inch Touchscreen |
Resolution | 1920 x 1200 |
Brightness | 2000 nit |
Screen Refresh Rate | 60Hz |
Adaptive Brightness | Yes |
Internal Battery | 6700mAh |
External Battery | 13400mAh |
Operating Time | Approx. 5h with Internal + External Battery |
System Power Consumption | 34W |
Fast Charging | Up to 65W PD |
Charge Time | Approx. 1.5h (Internal Battery Only) Approx. 4h (Internal + External Battery) |
Operating System | Android 13 |
Processor | Qualcomm 8-Core SOC |
Memory | 4GB RAM |
Internal Storage | 64GB |
Storage Expansion | MicroSD |
GNSS | GPS / GLONASS / BeiDou / Galileo / QZSS |
Protection Rating | IP54 |
Dimensions | 328.2mm x 222.5mm x 101.5mm |
Weight | 2600g including Belly Rest Bracket |
Ground-Unit Antennas | 2x Built-In Directional + 2x External Omnidirectional |
Wi-Fi Frequency | 2.4GHz / 5.8GHz |
Bluetooth | Bluetooth 5.0 |
Bluetooth Frequency | 2.4000 - 2.4835GHz |

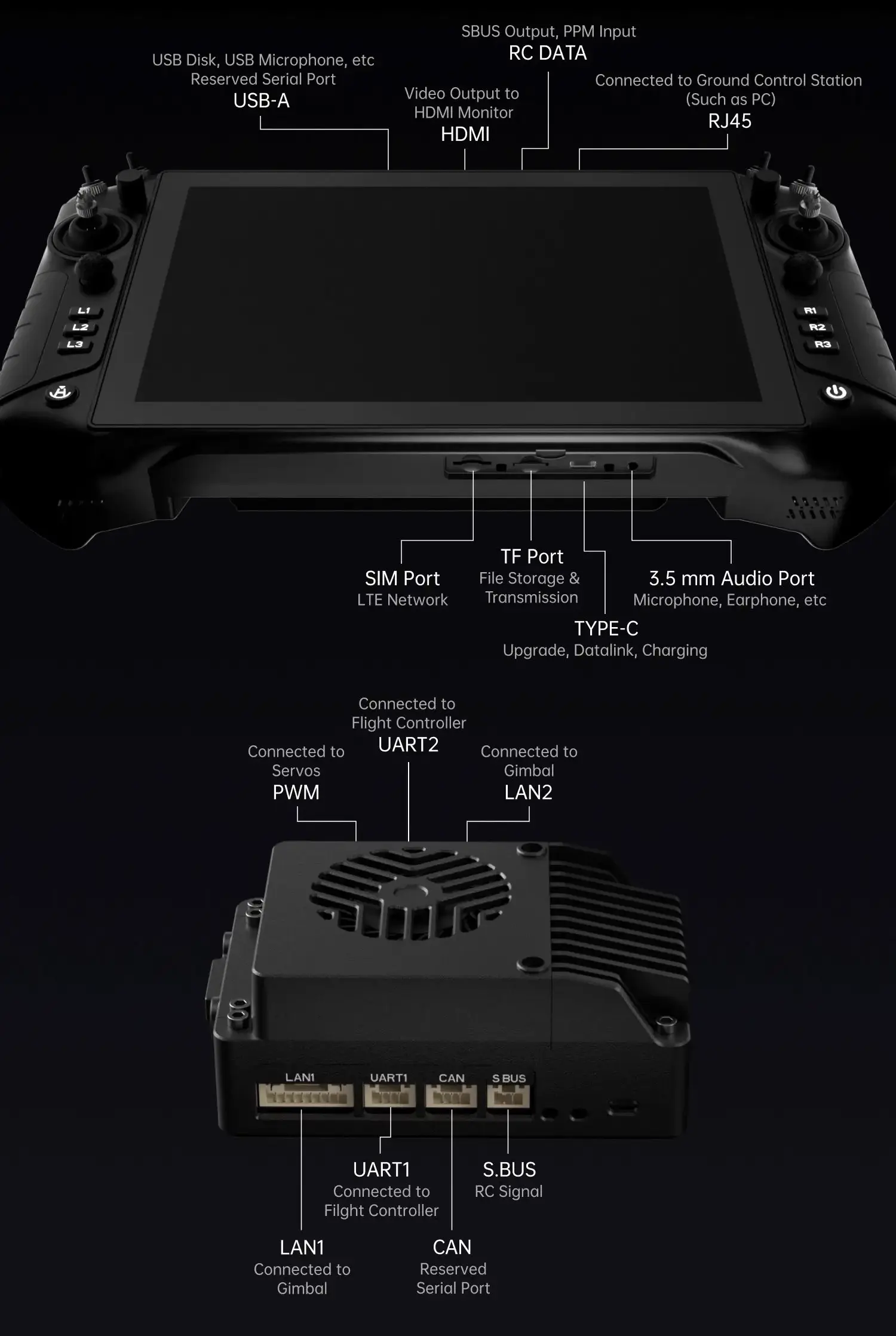

External Interfaces | USB-A, RJ45, HDMI, USB-C, TF Slot, SIM Slot |
Data Link Interfaces | 2x UART, UDP, Bluetooth, USB-C |
Audio | 3.5mm Jack, Speaker, Buzzer |
Air Unit
S.Bus Output | 16 Channels |
PWM Output
| 5 Channels |
Air Unit Communication Interfaces | 2x UART (GH1.25 3-Pin) (Data Link) 2x Ethernet (GH1.25 8-Pin) (Video & Data) 1x CAN (GH1.25 4-Pin) (CAN) 1x GH1.25 6-Pin (PWM Interface) |
Power Input | XT30 |
Firmware Interface | USB-C |
Antenna Interfaces | 2x Quick-Release MMCX + 2x Detachable IPEX |
Supply Voltage | 3S – 18S |
Dimensions Without Antennas | 85mm x 42.4mm x 26.9mm |
Weight Without Antennas | 200g ±5g |
Average Power Consumption | 7W |
SIYI UniRC 10 Pro Handheld Ground Station Package Includes
- 1x UniRC 10 Pro Storage Case
- 1x UniRC 10 Pro Handheld Ground Station (Include Belly Rest Bracket & Internal Battery)
- 1x UniRC 10 Pro Air Unit
- 1x UniRC 10 Pro External battery
- 4x Sub2G & 2.4G Omnidirectional Antenna
- 2x 5G Omnidirectional Antenna
- 2x UniRC 10 Pro Air Unit Data Cable
- 1x UniRC 10 Pro Air Unit S.Bus Cable
- 1x UniRC 10 Pro Air Unit CAN Cable
- 1x Network Cable (RJ45 Connectors on Both Ends)
- 1x UniRC 10 Pro PWM Cable
- 1x Type-C to USB-A Adapter
- 1x PD65W Fast Charging (US)
- 1x UniRC 10 Pro Shoulder Strap
- 1x XT30 Female Power Cable
- 1x 100W PD Fast-Charging Cable (USB-C to USB-C)
