SIYI ZR30 Optical Pod brings distant details within reach and keeps them steady. Zoom in from far away while the 3-axis gimbal holds the picture still, and keep getting bright, detailed images when the light fades. Quick to mount, easy to connect to your flight controller or SIYI link, and at home on drones, boats and ground robots, it turns every mission into clear, usable footage.

4,674.80 zł 4674.8 PLN VAT Excluded
4,674.80 zł VAT Excluded
Price on request

    This combination does not exist.

    SIYI ZR30 Optical Pod — Unshakable Stability, Day and Night

    The SIYI ZR30 Optical Pod is a 3-axis gimbal camera with 30x optical and up to 180x hybrid zoom. A 1/2.7-inch Sony CMOS sensor with 8MP effective resolution records 4K video at 25fps and takes 4K photos onto a microSD card (Class 10, up to 128GB). The yaw axis turns through 540 degrees and the camera mounts on a quick release board. It sends video over Ethernet and Micro-HDMI and is controlled via S.Bus, UART (SIYI SDK, ArduPilot and PX4 over MAVLink) or Ethernet UDP/TCP. It runs on 11-25.2V (3S to 6S), draws 5W on average and 12W at peak, weighs 668g and measures 132x100x180mm, quick release board included. SIYI designs it for drones, unmanned boats and ground vehicles.

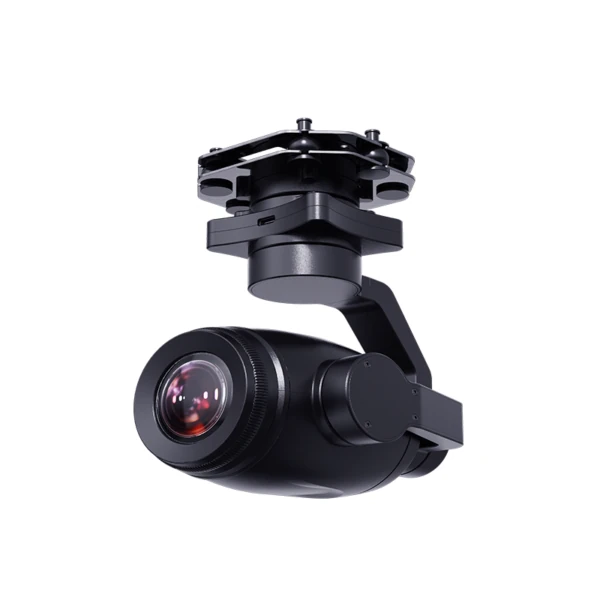

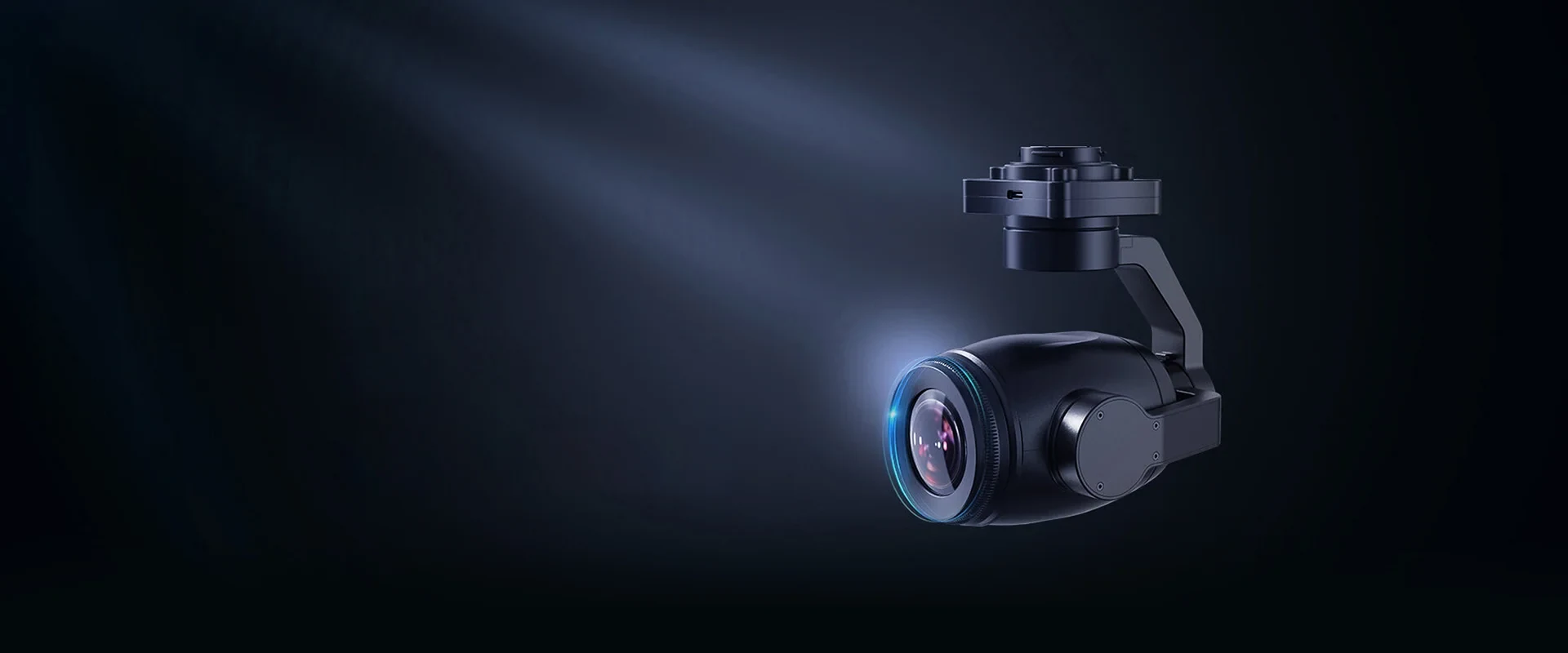

    SIYI ZR30 Optical Pod gimbal camera
    SIYI ZR30 Optical Pod 180X Hybrid Zoom, 30X Optical Zoom

    180X Hybrid Zoom, 30X Optical Zoom

    SIYI ZR30 Optical Pod 4K Ultra HD Video and Photos

    4K Ultra HD Video and Photos

    SIYI ZR30 Optical Pod 8MP 1/2.7-Inch Sony CMOS

    8MP 1/2.7-Inch Sony CMOS

    SIYI ZR30 Optical Pod 540° Yaw Rotation, Quick Release

    540° Yaw Rotation, Quick Release

    SIYI ZR30 Optical Pod Nose Mode

    Nose Mode

    SIYI ZR30 Optical Pod Upside Down Mode

    Upside Down Mode

    SIYI ZR30 Optical Pod Compatible with ArduPilot and PX4 (MAVLink)

    Compatible with ArduPilot and PX4 (MAVLink)

    SIYI ZR30 Optical Pod Ethernet and HDMI Video Output

    Ethernet and HDMI Video Output

    SIYI ZR30 Optical Pod High-Accuracy Control Algorithms

    High-Accuracy Control Algorithms

    30x Optical Zoom, Up to 180x Hybrid

    The ZR30 carries a 1/2.7-inch Sony image sensor, an 8MP CMOS with remarkable sensitivity to light, for 4K video and photos. It zooms up to 180x in hybrid mode, 30x of it optical. The focusing algorithm is fast and accurate and the viewpoint is focused automatically, so distant scenery comes within reach with smooth zoom and steady movement.

    Without zoom the field of view is 65.4° diagonally. At full 30x optical zoom it narrows to 2.5°, enough to pick out a single detail far away.

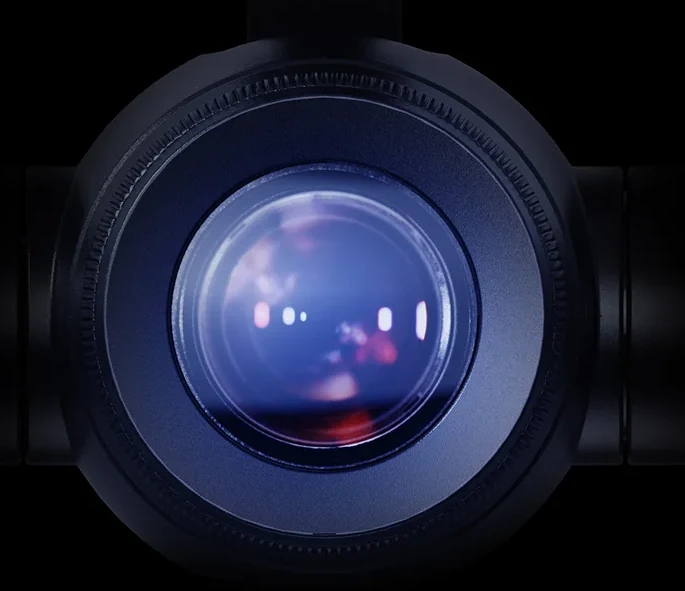

    SIYI ZR30 Optical Pod zoom lens

    A Sharp Picture in Any Light

    Point to Focus

    Point anywhere on the screen and the zoom camera focuses on that part of the image, for a clear view of exactly what you selected.

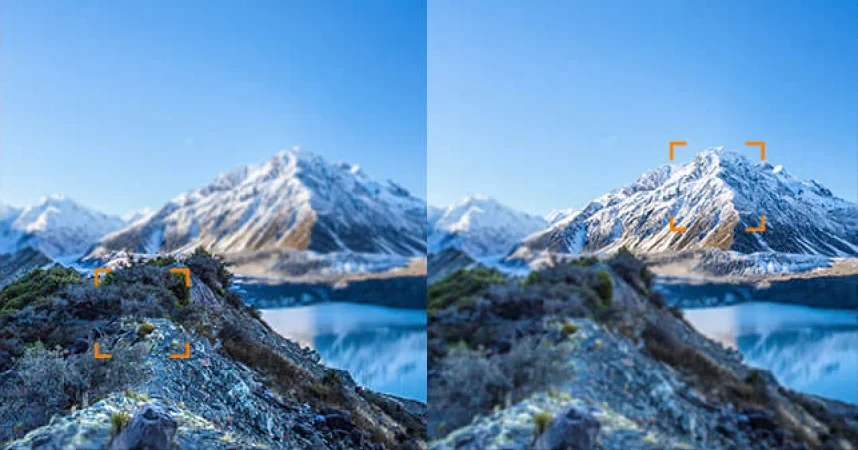

    SIYI ZR30 Optical Pod point to focus
    Focus Tracking

    The zoom camera stays in focus while you zoom in and out, so the video stays smooth.

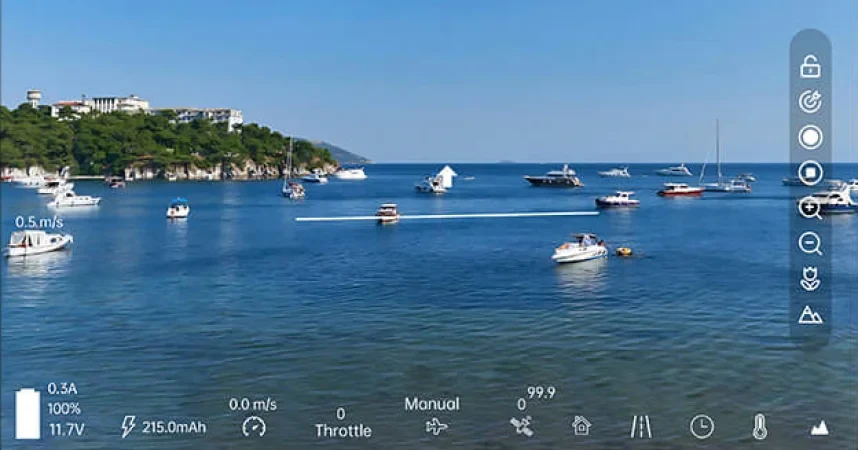

    SIYI ZR30 Optical Pod focus tracking while zooming
    Starlight Night Vision

    The ultra-sensitive starlight CMOS keeps images bright in low light.

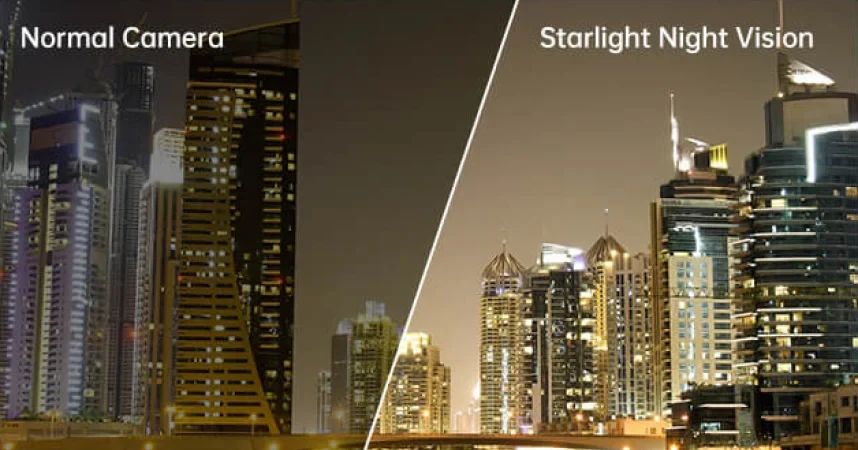

    SIYI ZR30 Optical Pod starlight night vision compared with a normal camera
    HDR

    HDR (High Dynamic Range) captures the details of highlights and shadows in dynamic scenes, for true colors and natural brightness.

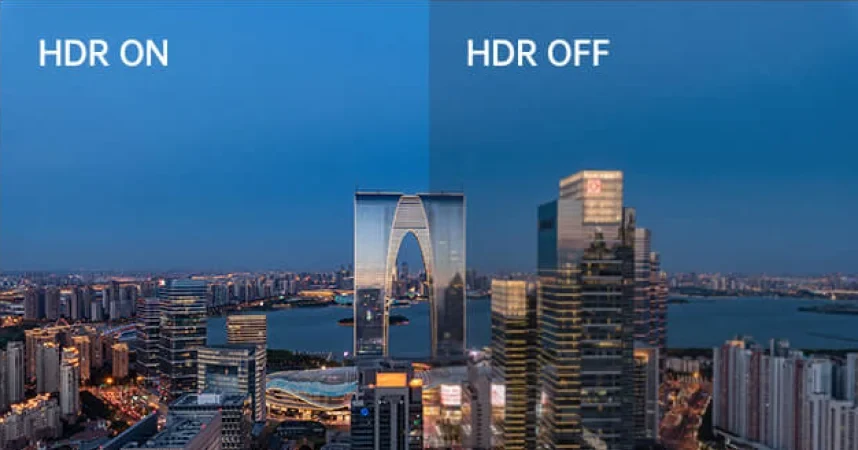

    SIYI ZR30 Optical Pod HDR on and off

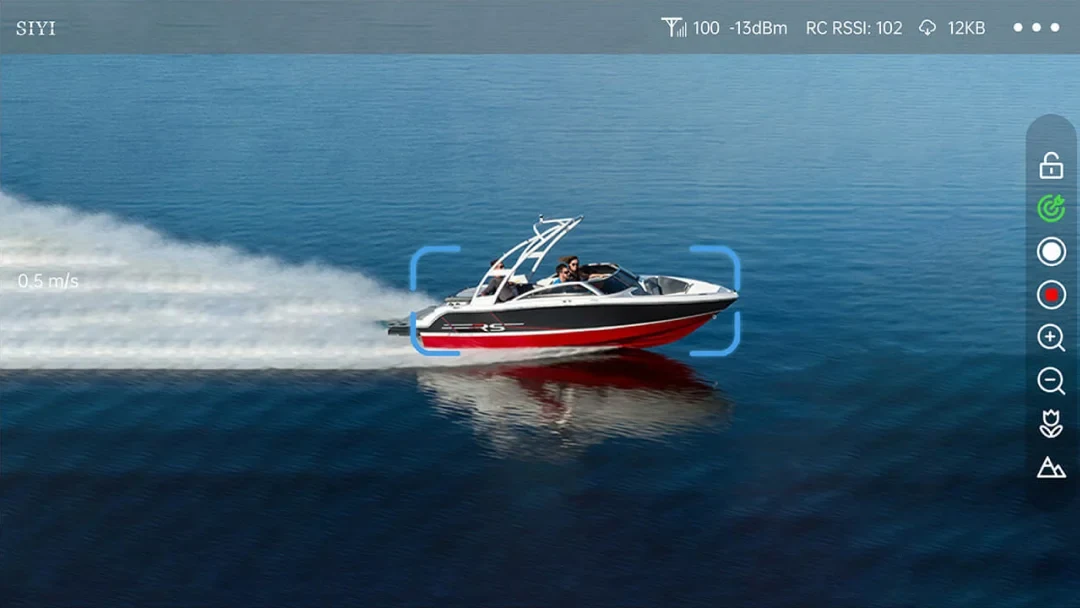

    SIYI ZR30 Optical Pod AI tracking of a boat

    AI Recognition and Tracking

    With the optional SIYI AI tracking module, the ZR30 tracks and captures targets in real time, focusing and zooming so that the selected object always stays in the centre of the picture at a clearly visible size.

    If the target is briefly blocked or leaves the screen, the module recognises it and continues tracking as soon as it comes back.

    Available in our shop: SIYI AI II 10T tracking module

    540-Degree Yaw Rotation and Quick Release

    The yaw axis of the ZR30 rotates through 540 degrees, so hanging below a VTOL drone or a plane it captures 360 degrees around. The SIYI quick release structure lets you mount the camera and switch payloads fast.

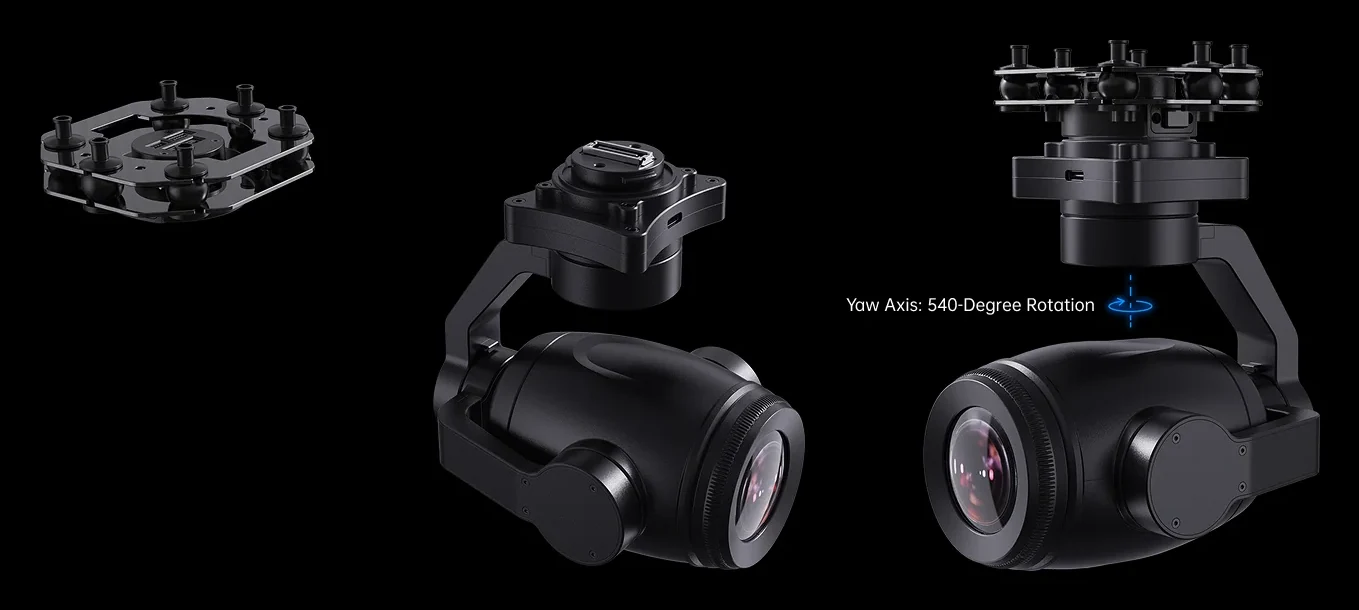

    SIYI ZR30 Optical Pod quick release board and 540° yaw rotation

    Many Ways to Control the Gimbal

    Control the ZR30 the classic way with an S.Bus signal from switches and dials, over Ethernet from a touchscreen or with UDP/TCP commands from the SIYI gimbal SDK, or over UART with the SIYI gimbal SDK or the open-source ArduPilot and PX4 protocols (MAVLink). That makes it easy to integrate into many kinds of drones and robots.

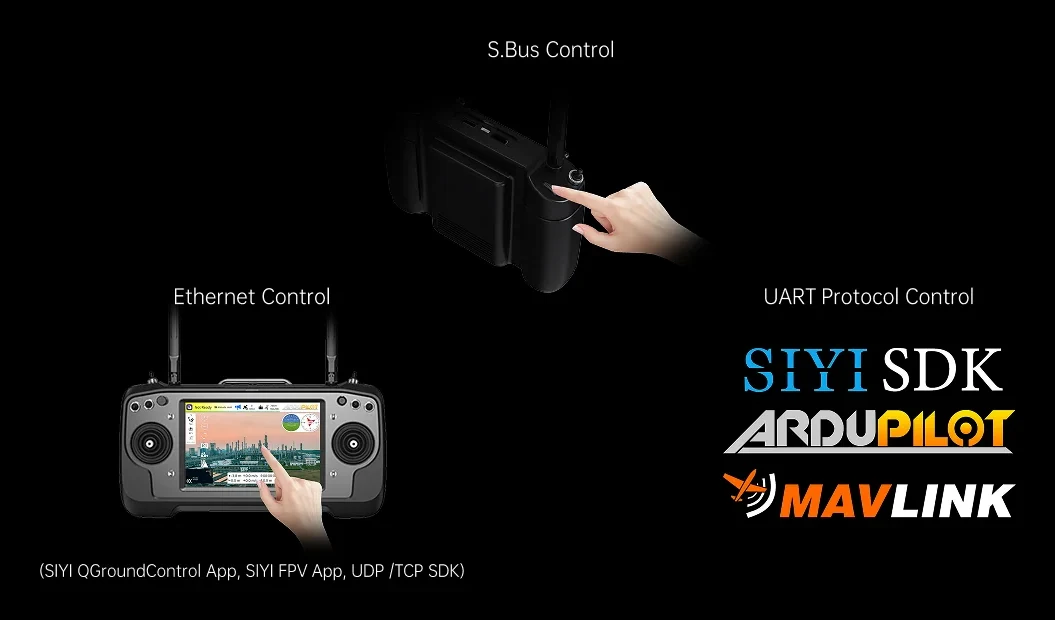

    SIYI ZR30 Optical Pod control options S.Bus, Ethernet and UART

    SIYI ZR30 Optical Pod Gimbal Modes

    Nose Mode

    When the gimbal is mounted at 90 degrees to the horizontal plane, it enters nose mode automatically. That makes it easy to fit in the nose of a fixed-wing drone, with a friendlier mounting angle and a wider field of view.

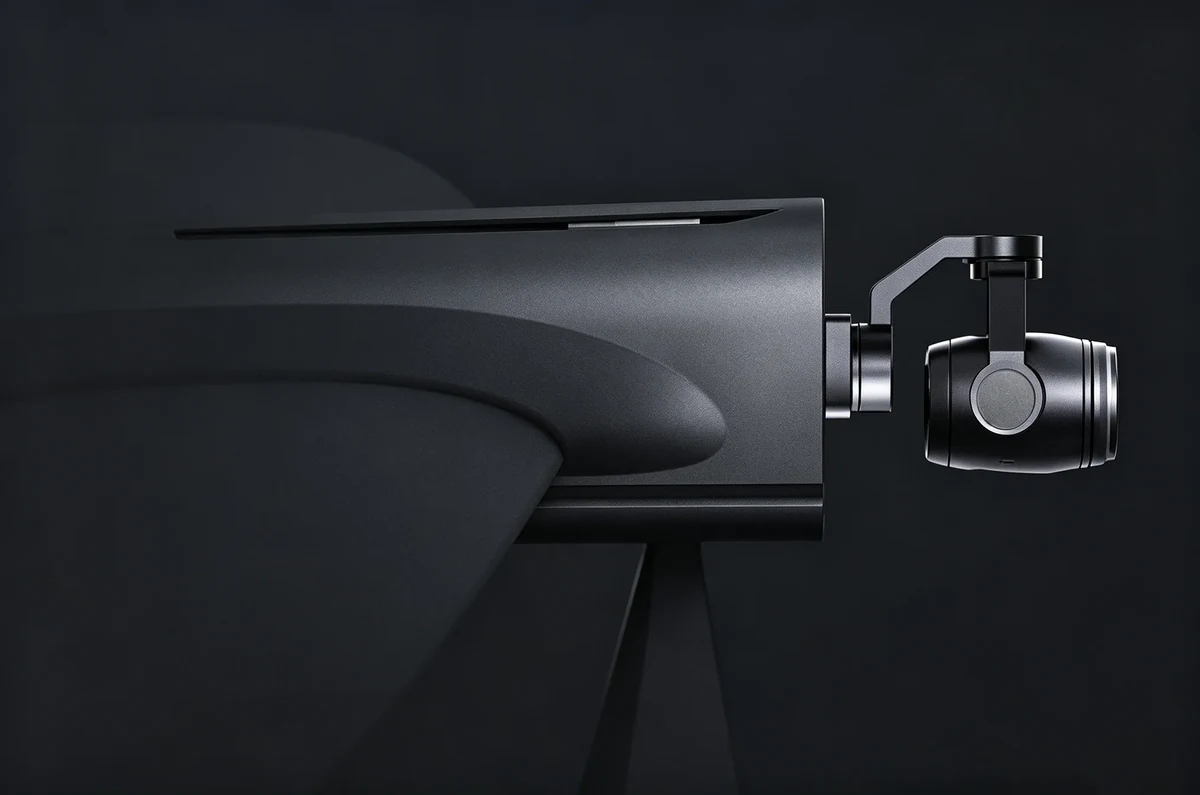

    SIYI ZR30 Optical Pod in nose mode on a fixed-wing drone
    Upside Down Mode

    Mounted upside down, the gimbal activates upside down mode automatically, so it fits many kinds of vehicles such as unmanned ground vehicles, boats and robot dogs.

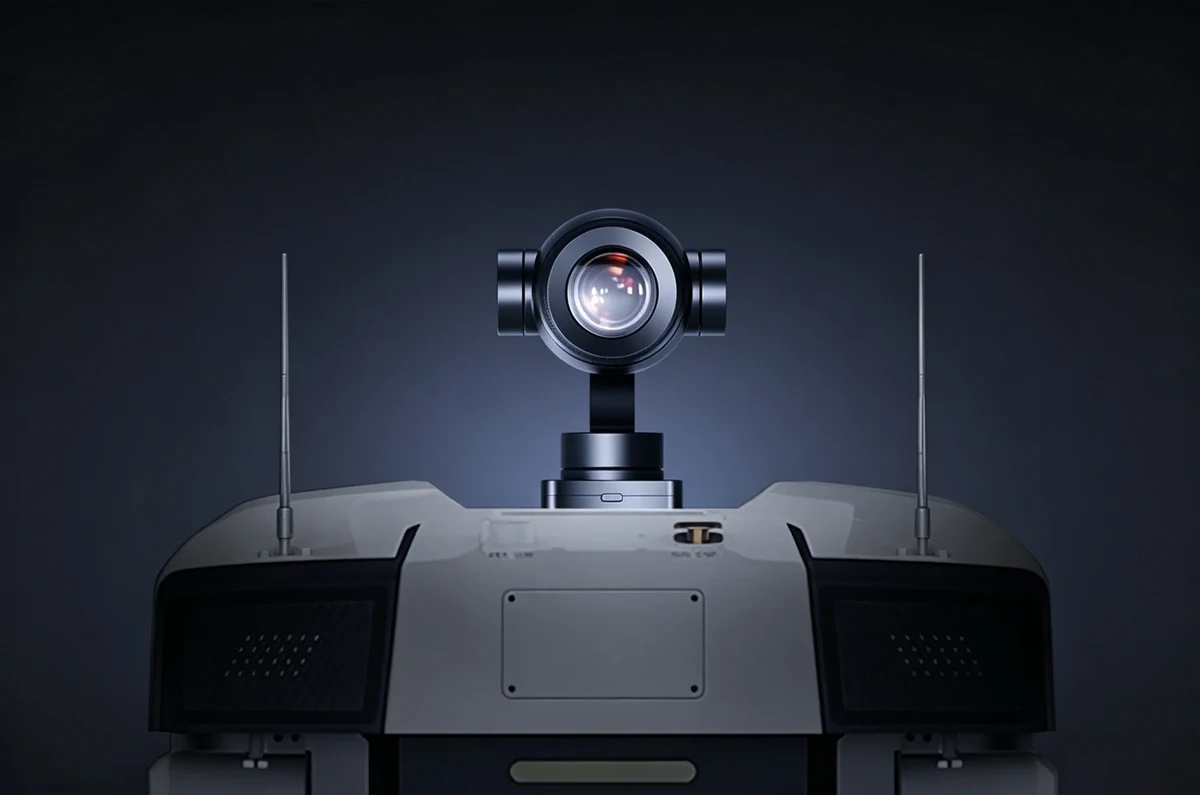

    SIYI ZR30 Optical Pod upside down on a ground robot
    SIYI ZR30 Optical Pod Follow Mode
    Follow Mode

    Horizontally, the gimbal follows when the aircraft turns.

    SIYI ZR30 Optical Pod FPV Mode
    FPV Mode

    The gimbal rotates together with the aircraft as it rolls, giving an FPV view with enhanced, stable images.

    SIYI ZR30 Optical Pod Lock Mode
    Lock Mode

    Horizontally, the gimbal does not follow when the aircraft turns.

    High-Accuracy Control and Stabilization Algorithms

    SIYI has put a lot of work into the control and stabilization algorithms behind the gimbal.

    IMU Calibration

    Corrects errors of the inertial measurement unit such as zero bias, scale factor, inter-axis error, temperature drift and noise. The gimbal stays stable through large temperature differences, wide steering and strong vibration.

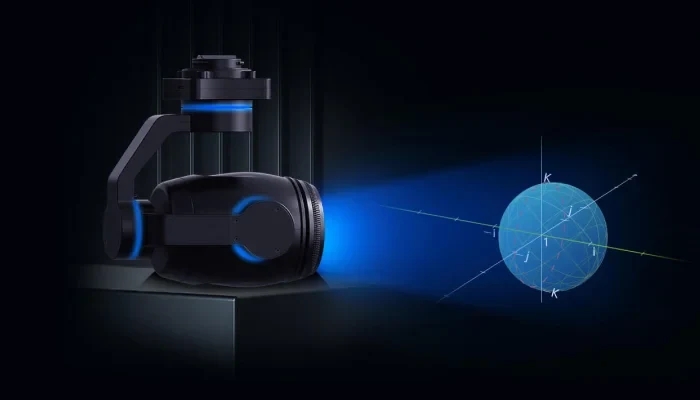

    SIYI ZR30 Optical Pod IMU Calibration algorithm
    Attitude Fusion

    Combines data from accelerometers and gyroscopes through mathematical models and filtering to get the pitch, roll and yaw angles of the gimbal, which improves performance, stability and robustness.

    SIYI ZR30 Optical Pod Attitude Fusion algorithm
    Industry-Level 3-Axis Stabilization

    Integrates 3-axis gyroscopes, 3-axis accelerometers, PID controllers, motors and magnetic encoders to keep the gimbal steady and output a stable HD picture while moving.

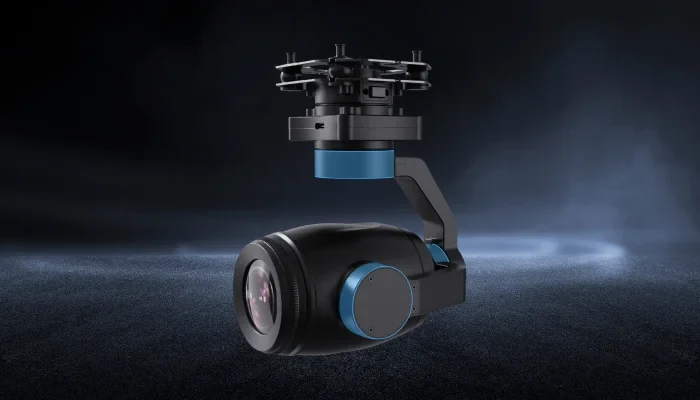

    SIYI ZR30 Optical Pod Industry-Level 3-Axis Stabilization algorithm
    High-Precision FOC Motor Control

    Controls the torque and magnetic field components of the motor current separately, which decouples the brushless motor control and greatly reduces picture jitter.

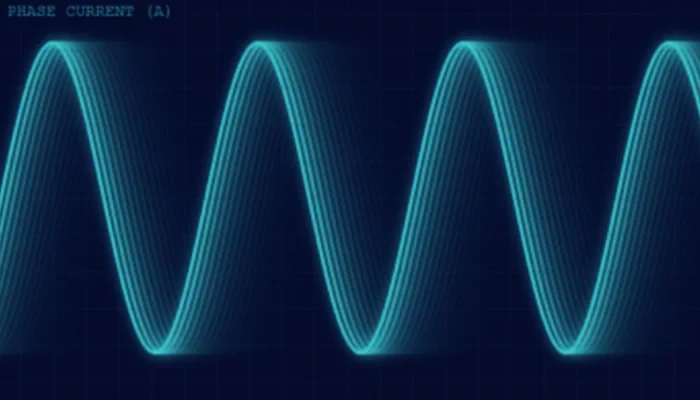

    SIYI ZR30 Optical Pod High-Precision FOC Motor Control algorithm

    Frequently asked questions - SIYI ZR30 Optical Pod

    Yes. The Micro-HDMI port outputs 1080p video. The camera also streams video over Ethernet.

    There are four ways: tap any point on the screen in the SIYI UniGCS app for autofocus, use an S.Bus channel for manual or autofocus, or send SIYI SDK commands over the serial port (UART) or over Ethernet.

    SIYI names drones, unmanned boats (USV) and unmanned ground vehicles (UGV). Nose mode and upside down mode make it easy to mount on fixed-wing aircraft and ground robots.

    Zoom works when recording in 2K, 1080p or 720p. With the recording resolution set to 4K, zooming is not available. If you control the camera over S.Bus, also check that a zoom channel is configured.

    A rolling shutter. The shutter speed is automatic and cannot be set separately.

    Only for firmware upgrades and parameter adjustment. Power the gimbal on before you connect it to a computer for an upgrade.

    SIYI ZR30 Optical Pod Interfaces

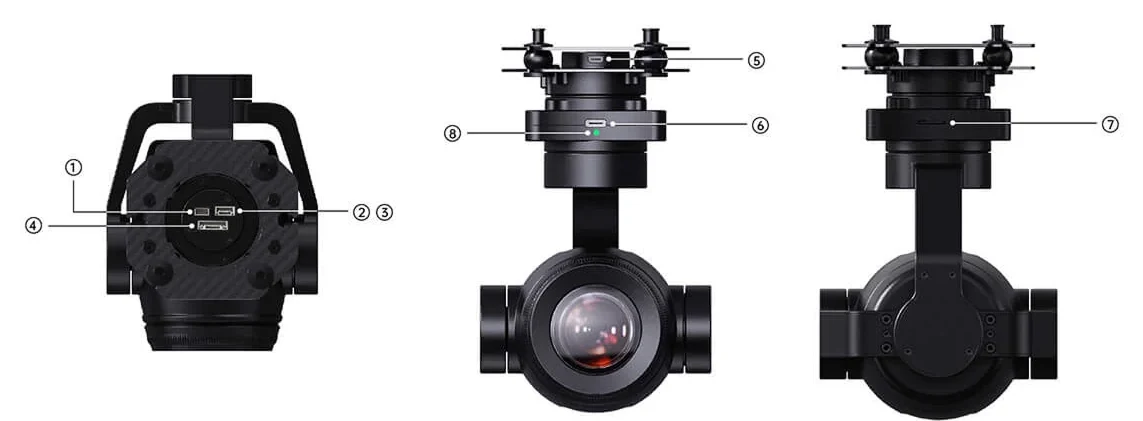

    SIYI ZR30 Optical Pod interfaces
    1. Power input (3S to 6S)
    2. Control signal input and output (S.Bus / UART)
    3. Control signal input and output (S.Bus / UART)
    4. Ethernet (video stream and SDK protocol control)
    5. Micro-HDMI (video output)
    6. Type-C (upgrade and configuration)
    7. TF card slot (file storage and copying)
    8. Status indicator

    The power connector is an MX1.25mm 4-pin plug and the network port is a GH1.25mm 9-pin plug. Pinouts of the video and protocol, gimbal control and power connectors:

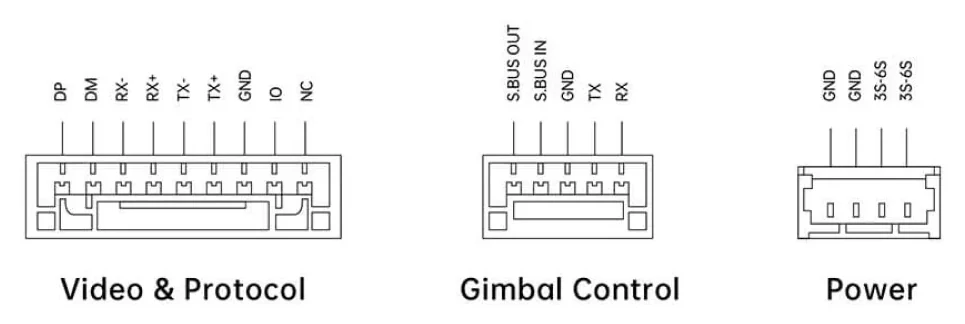

    SIYI ZR30 Optical Pod connector pinouts

    SIYI ZR30 Optical Pod Wiring Diagram

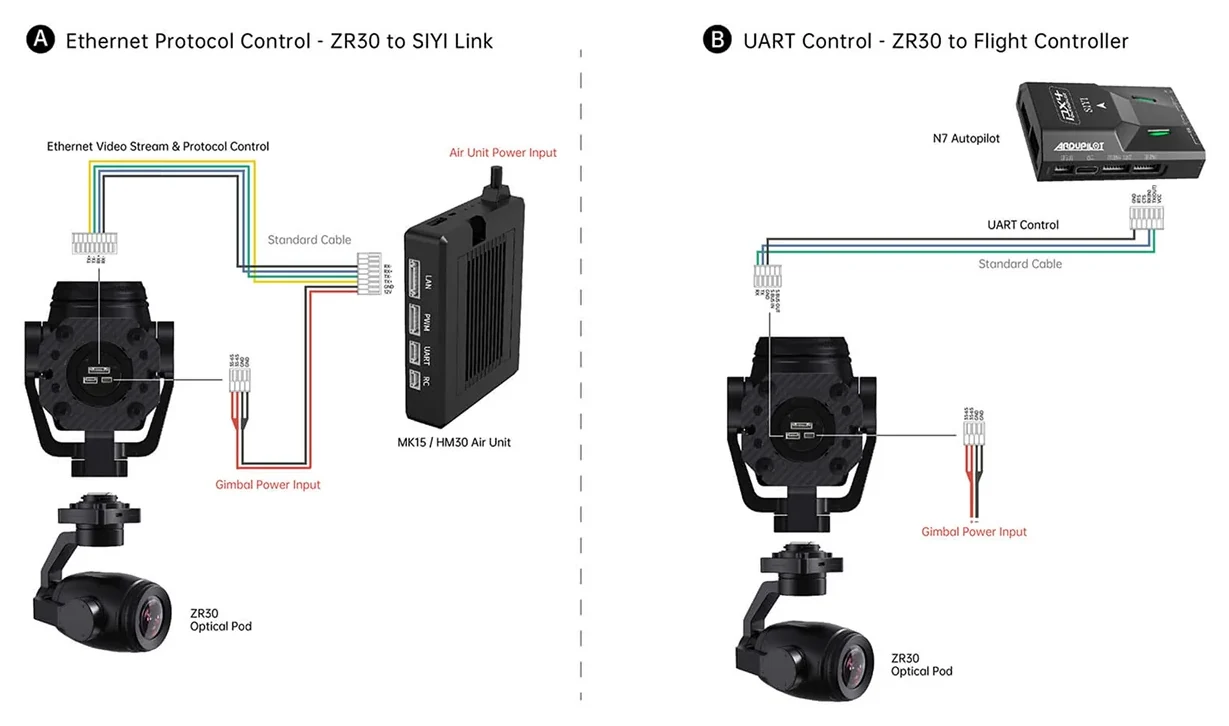

    SIYI ZR30 Optical Pod wiring diagram for Ethernet and UART control

    A: Ethernet protocol control, ZR30 to a SIYI link air unit such as the SIYI HM30. B: UART control, ZR30 to a flight controller.

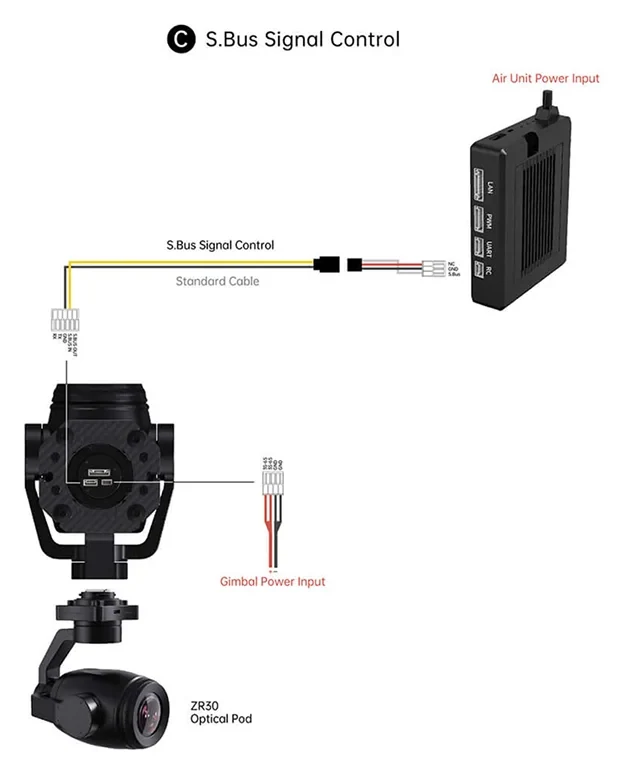

    SIYI ZR30 Optical Pod wiring diagram for S.Bus control

    C: S.Bus signal control.

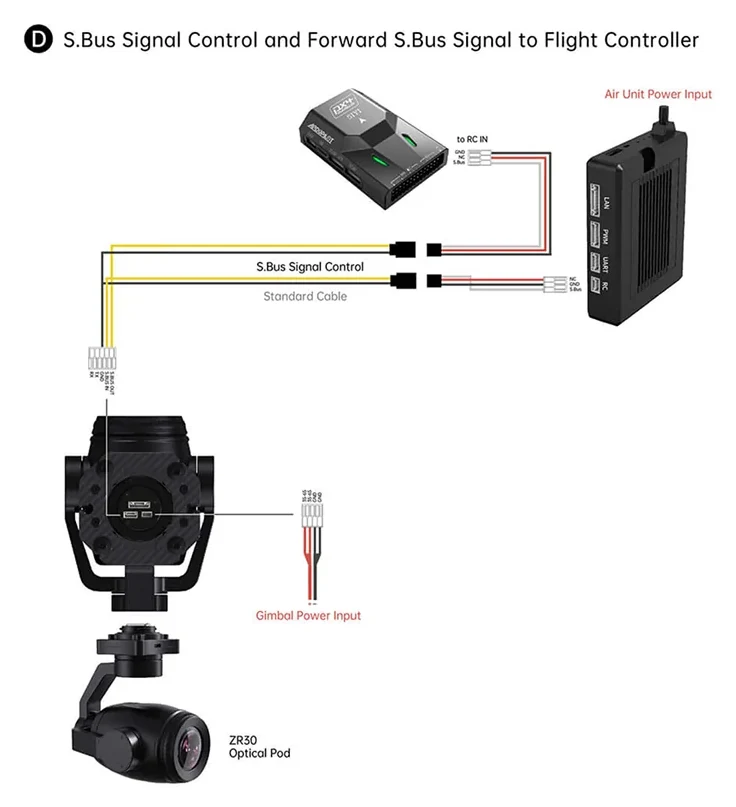

    SIYI ZR30 Optical Pod wiring diagram with S.Bus forwarded to the flight controller

    D: S.Bus control with the S.Bus signal forwarded to the flight controller.

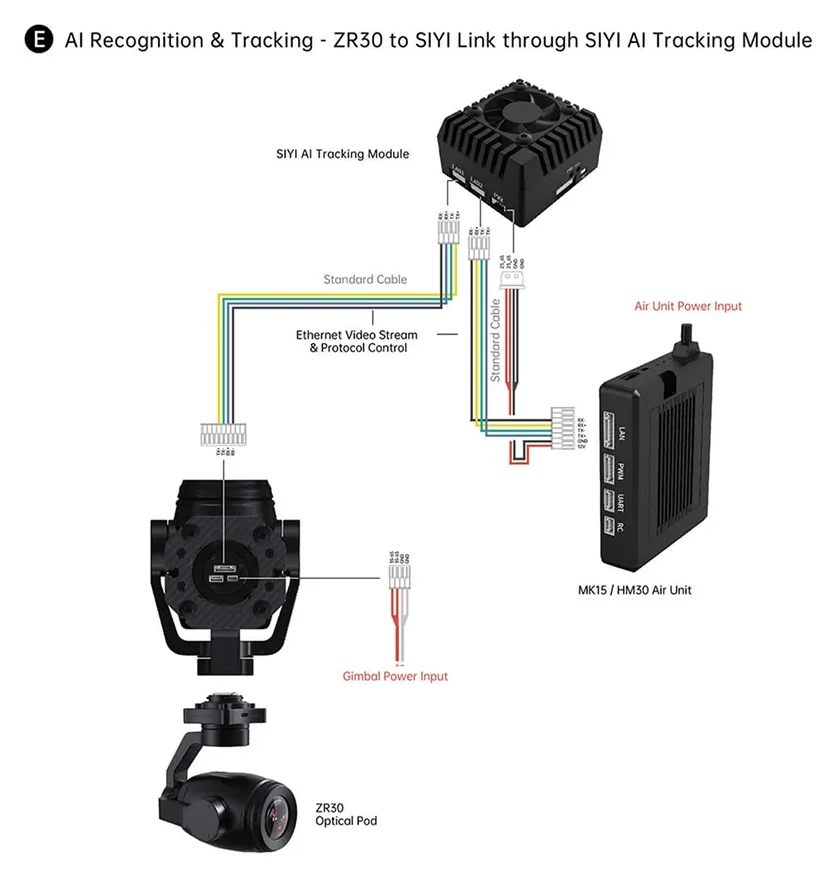

    SIYI ZR30 Optical Pod wiring diagram with the SIYI AI tracking module

    E: AI recognition and tracking, ZR30 to a SIYI link through the SIYI AI tracking module.

    Manuals, firmware and software for the ZR30 are on the manufacturer website: SIYI ZR30 downloads

    SIYI ZR30 Optical Pod Specification

    General

    Video Output Ports

    Ethernet, Micro-HDMI

    Control Signal Input Ports

    S.Bus, UART, Ethernet UDP/TCP

    3-Axis Stabilization

    Yaw, pitch, roll

    Working Voltage

    11-25.2V (3S to 6S)

    Power Consumption

    Average 5W, peak 12W

    Connectors

    Power: MX1.25mm 4-pin; network: GH1.25mm 9-pin

    Waterproof Level

    IP4X

    Working Temperature

    -10 to 50°C

    Dimensions

    132x100x180mm (quick release board included)

    Weight

    668g (quick release board included)

    Gimbal

    Angular Vibration Range

    ±0.01°

    Controllable Pitch Angle

    -90° to +25°

    Controllable Yaw Angle

    -270° to +270°

    Roll Angle

    -45° to +45°

    Camera

    Lens

    30x optical zoom (180x hybrid zoom)

    Image Sensor

    1/2.7" Sony CMOS, 8MP effective resolution

    Aperture

    F1.3-2.8 (±5%)

    Focal Length

    4.5-148.4mm (±5%)

    Field of View

    Without zoom: 65.4° diagonal, 58.1° horizontal; 30x optical zoom: 2.5° diagonal, 2.1° horizontal

    Shutter

    Rolling shutter, automatic speed

    Video Recording Resolution

    4K (4096x2160) at 25fps, 2K (2560x1440) at 30fps, 1080p (1920x1080) at 30fps, 720p (1280x720) at 30fps

    Video Storage Bitrate

    12Mbps (H.265)

    Still Photo Resolution

    4K (3840x2160)

    Still Photography Mode

    Single

    Image Format

    JPG

    Video Format

    MP4

    White Balance

    Automatic

    Metering Mode

    Evaluative

    Supported MicroSD Cards

    Class 10, up to 128GB, FAT32

    Quick Release Board

    Dimensions

    82x65x20mm

    Weight

    38g

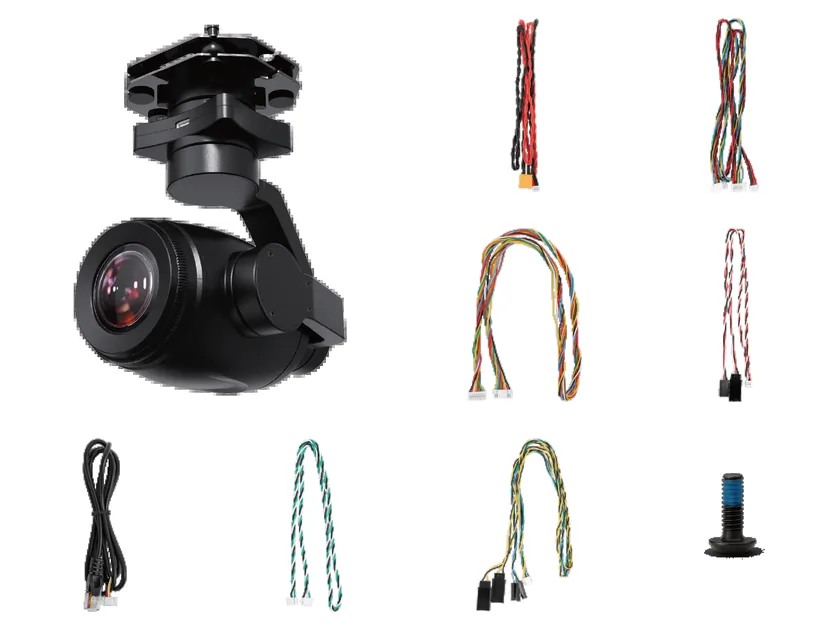

    SIYI ZR30 Optical Pod Package Includes

    • 1x SIYI ZR30 Optical Pod
    • 1x Power Cable
    • 1x SIYI Video Transmission Cable
    • 1x Video and Communication Cable
    • 1x S.Bus Y-Splitter Cable
    • 1x RJ45 Male Cable with Strain Relief
    • 1x UART Cable for ArduPilot / PX4 Flight Controllers
    • 1x 5-Pin Control Data Cable
    • 6x Hex Flange Machine Screws (TM3x8)
