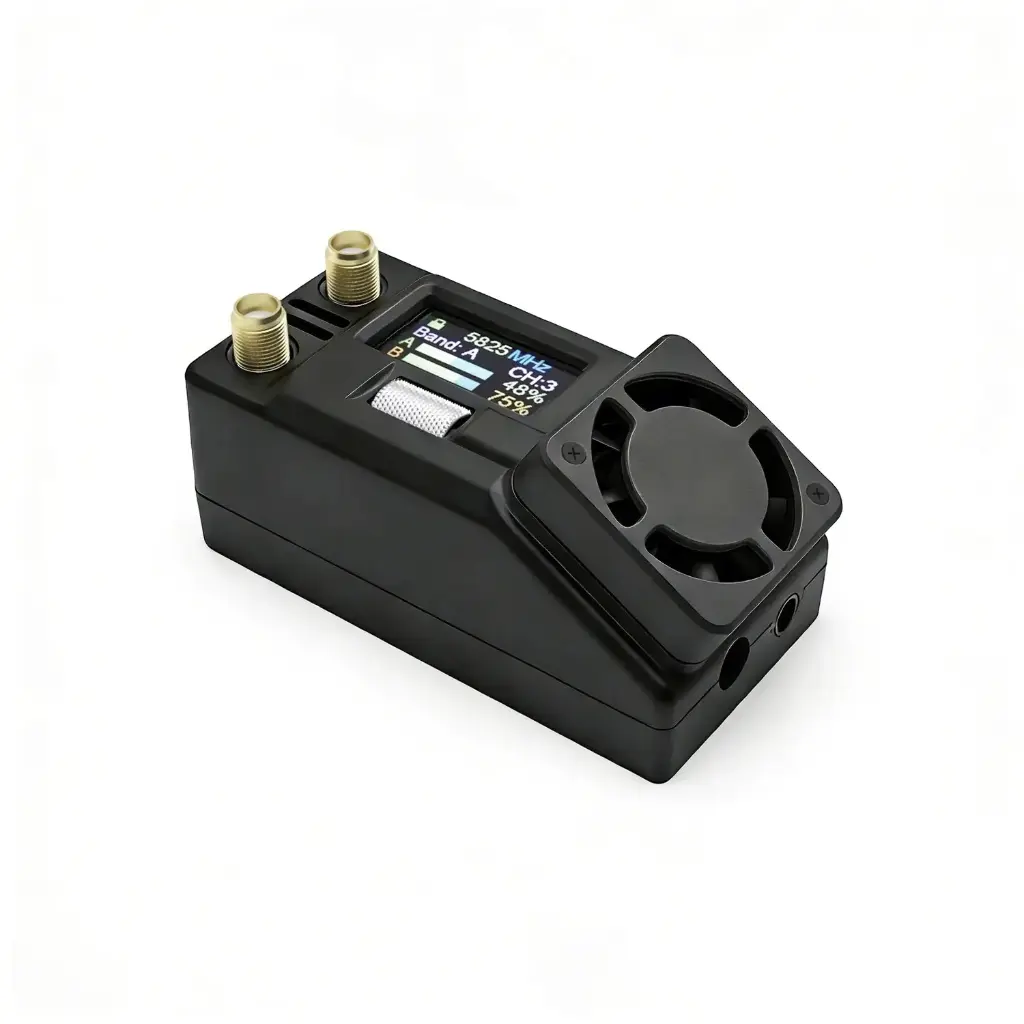

Skyzone SteadyView X 7.5GHz Receiver Module
More Stable Analog FPV Reception – Skyzone SteadyView X 7.5GHz Receiver Module
Skyzone SteadyView X 7.5GHz Receiver Module is designed to receive analog video across an extended frequency range. Its hardware-fusion technology combines two received signals into one image, helping maintain visual continuity in multipath environments. A narrow band filter reduces unwanted interference, while the IPS screen and shuttle wheel provide convenient access to receiver settings.
Less interference and a clearer image
The dedicated narrow band filter helps separate the useful video signal from interference outside the selected range. This can provide a more stable and readable image in environments where several radio devices are operating simultaneously. Final reception quality also depends on the transmitter, antennas, selected frequency, and surrounding terrain.
Fast and intuitive configuration
The metal shuttle wheel allows quick menu scrolling and setting selection without requiring several separate buttons. Combined with the color IPS screen, it simplifies checking the selected frequency and operating mode both at a ground station and in the field.
More stable video in demanding conditions
SteadyView X uses a sensitive receiving system and hardware-fusion technology that combines data from two reception paths. Three MIX modes allow processing to be adapted to different cameras and transmission conditions. The system helps reduce tearing and rolling when the signal becomes weak or reaches the receiver through several propagation paths.
WARNING
The receiver is intended for civilian analog wireless-video systems. Local regulations governing permitted operating frequencies must be checked before use.
Compatibility Notice
The receiver must operate on the same frequency as the video transmitter, and its antennas must support the selected band. A matching antenna connector alone does not confirm frequency compatibility. Before applying power, verify the required voltage, cable polarity, and the input requirements of the monitor or goggles connected through the AV output.
Skyzone SteadyView X 7.5GHz Receiver Module Band and Channels Table
Skyzone SteadyView X 7.5GHz Receiver Module Specifications
Screen | 0.96" Color LCD |
Viewing Direction | All View |
Frequency | 6.5GHz - 8.5GHz |
Sensitivity | -90dBm ± 2dBm |
Antenna Connectors | 2x Standard SMA-K, 50Ω |
Mode | Mix1,Mix2,Mix3, Diversity, Single RX |
Video output | 1.0Vp-p Typ. / 75Ω |
Audio output | No audio output |
Voltage | 6.5V - 26V |
Consumption | 12V input / 500mA |
DC IN | ⌀5.5mm |
A/V output | ⌀3.5mm |
USB | Type-C, Firmware Update |
Dimensions | 70.5mm x 33.5mm x 34mm |
Weight | 49g |
Skyzone SteadyView X 7.5GHz Receiver Module Package Includes
- 1x Skyzone SteadyView X 7.5GHz Receiver Module
- 2x Omni Antenna 7.5GHz
- 1x XT60-DC Cable 5.5mm x 2.1mm
- 1x 3.5mm Video Cable
- 1x User Manual
