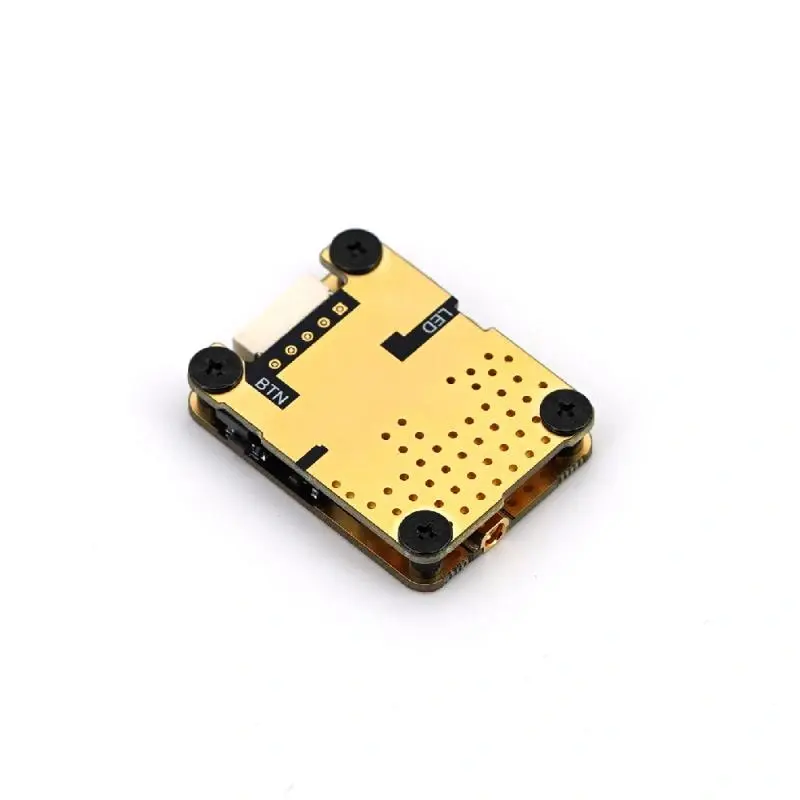

TBS Unify Pro32 DP 5.8GHz VTX (MMCX)
The TBS Unify Pro32 DP 5.8 GHz VTX (MMCX) is a powerful and compact FPV video transmitter designed for high-performance drone builds. It features a durable MMCX connector for reliable antenna attachment and supports additional cooling options such as a heatsink or a small fan (not included), making it ideal for installations with limited airflow.

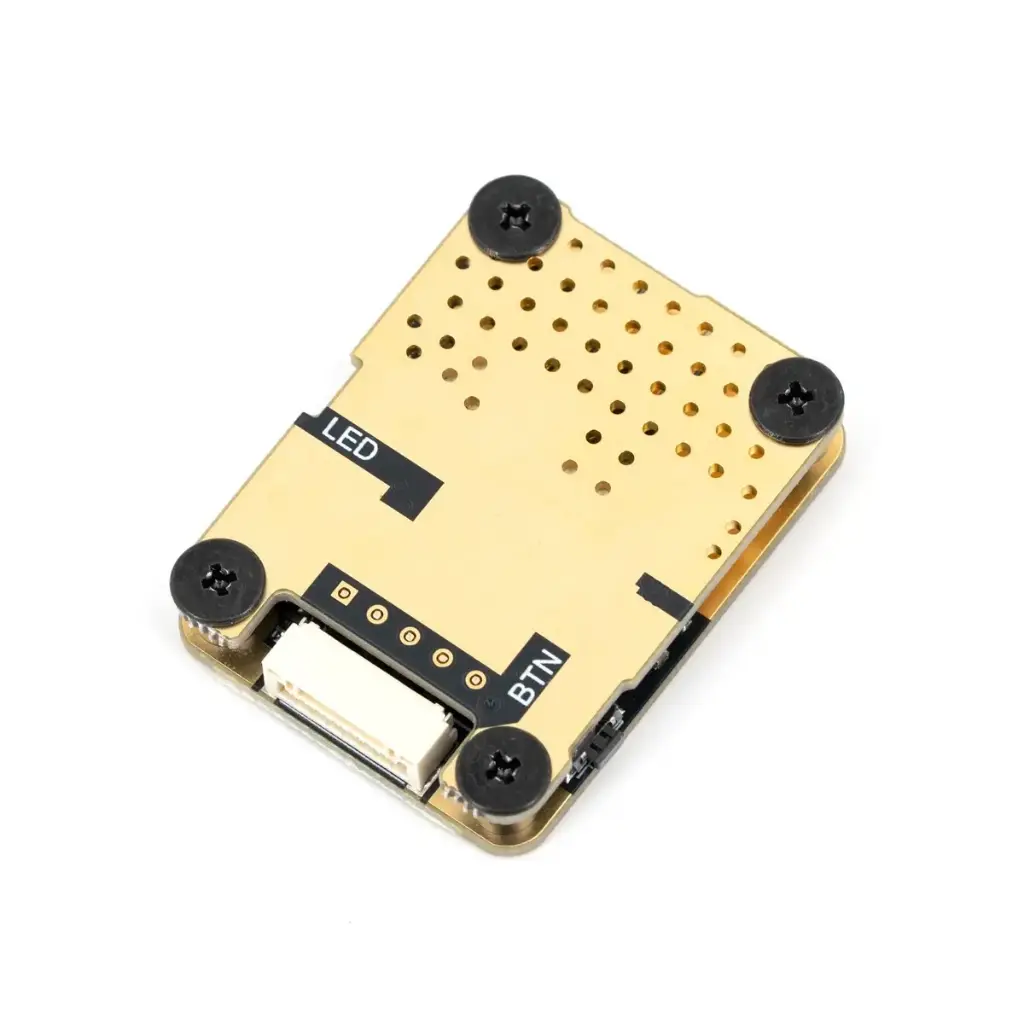

TBS Unify Pro32 DP 5.8GHz VTX (MMCX) – Advanced FPV Transmission You Can Rely On
The TBS Unify Pro32 DP 5.8GHz VTX (MMCX) is a premium video transmitter designed for FPV pilots who demand exceptional reliability, clean signal quality, and advanced control features. Built with optimized heat dissipation technology, it delivers stable performance without requiring additional heatsinks or cooling fans, while double noise filtering ensures crystal-clear video transmission. With support for TBS SmartAudio 2.1, LUA script control, one-button configuration, and a wide 2–6S input range, the Unify Pro32 DP offers seamless integration into modern FPV builds. Its compact, lightweight design and durable MMCX connector make it an ideal choice for both racing and long-range applications where dependable video links are essential.

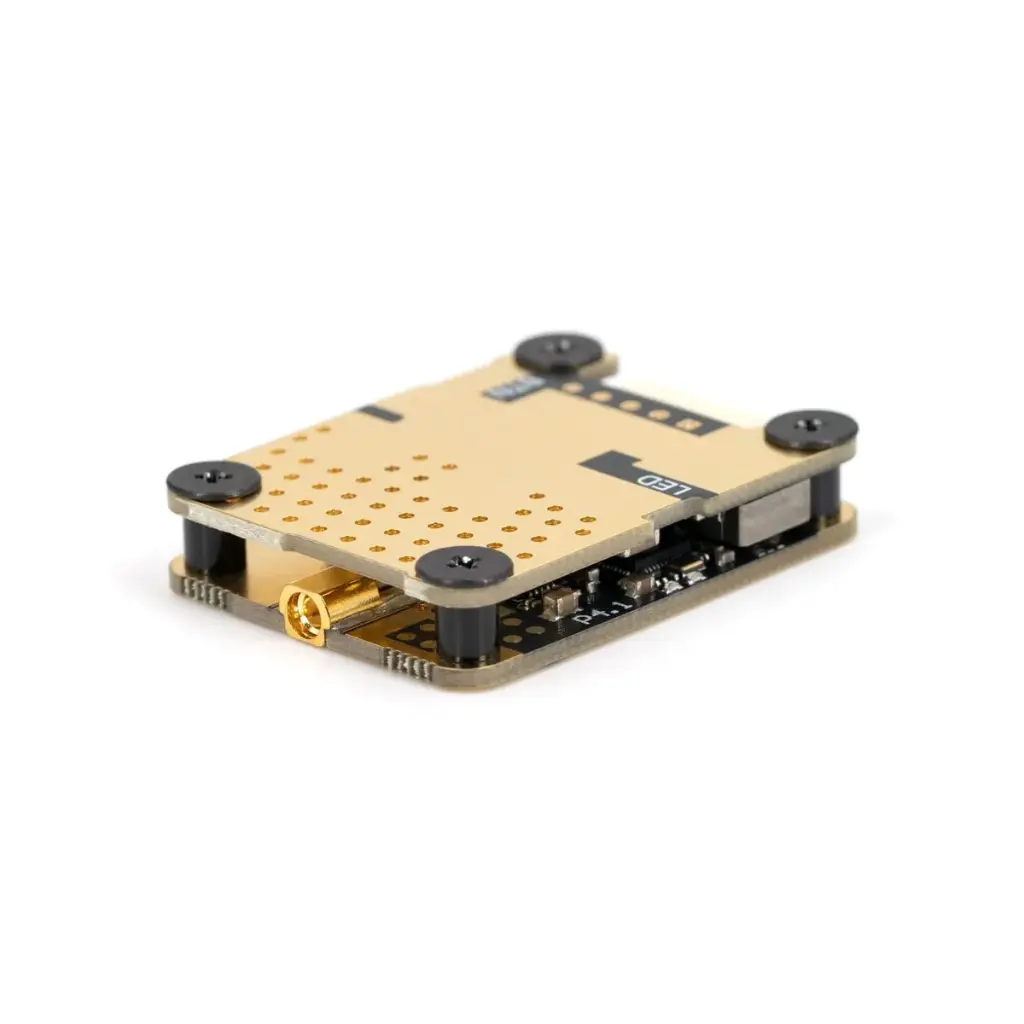

TBS Unify Pro32 DP 5.8GHz VTX (MMCX) Highlights
- World’s lightest 3 Watt video transmitter
- Frequency range: 4990 - 6030 MHz
- OSD configuration using TBS Smart Audio 2.1 (via Betaflight, TBS Crossfire / Tracer or Ardupilot)
- One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimized heat dissipation, no heatsink required
- Barcode Control for changing power levels and frequencies
- CleanSwitch technology for interruption-free operation

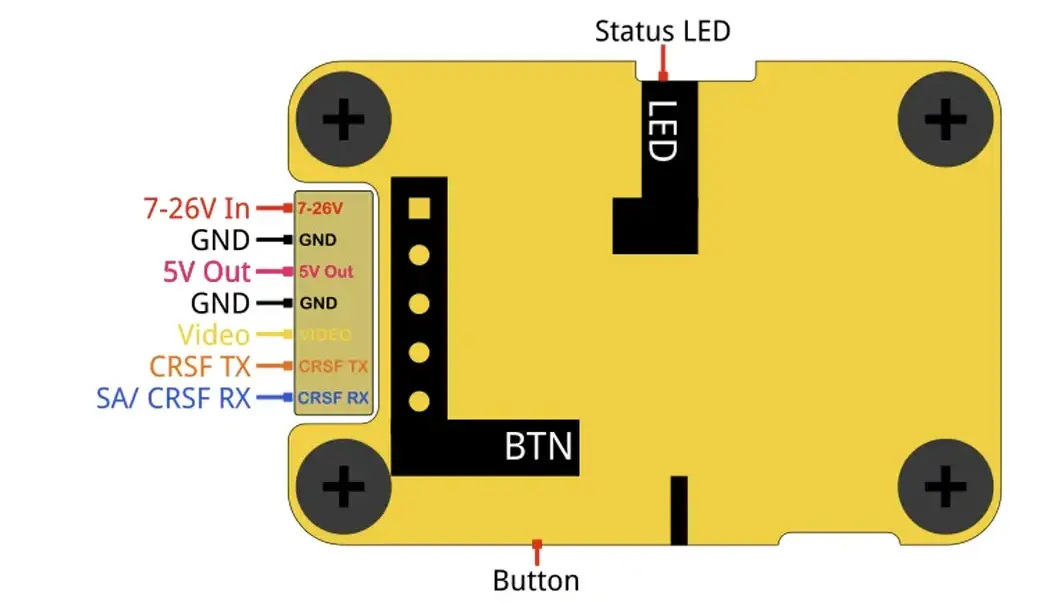

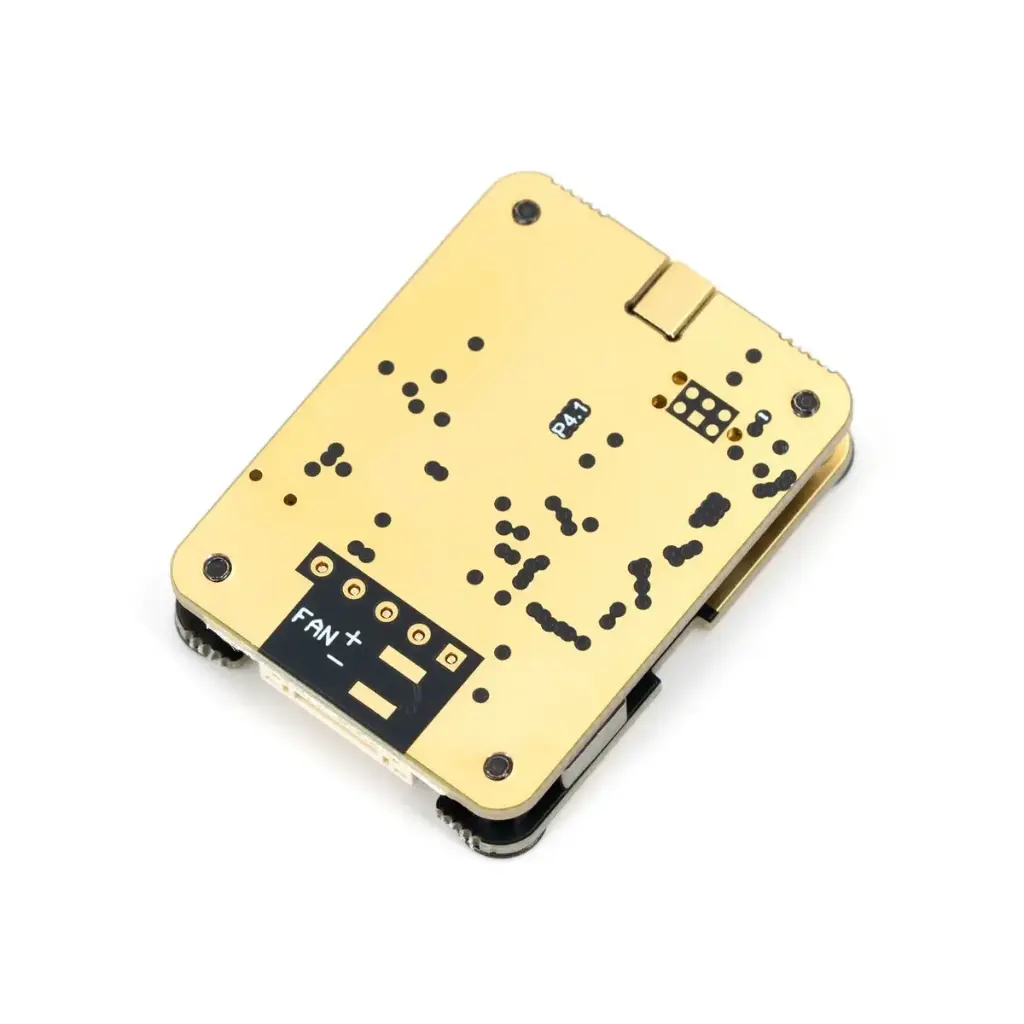

TBS Unify Pro32 DP 5.8GHz VTX (MMCX) Pinout
VTX Table for TBS Unify Pro32 DP 5.8GHz VTX (MMCX) -with all channels available
| # vtxtable vtxtable bands 10 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945 vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 RACE_LOW L FACTORY 5362 5399 5436 5473 5510 5547 5584 5621 vtxtable band 7 BAND_M M FACTORY 5608 5678 5717 5737 5835 5855 5894 5914 vtxtable band 8 BAND_H H FACTORY 4990 5020 5050 5080 5110 5140 5170 5200 vtxtable band 9 BAND_Y Y FACTORY 4991 5045 5097 5128 5329 5435 5477 5590 vtxtable band 9 BAND_T T FACTORY 5176 5261 5353 5360 5946 5974 6013 vtxtable powerlevels 8 vtxtable powervalues 10 14 20 23 26 27 30 65 vtxtable powerlabels 10 25 100 200 400 500 999 3k save |
VTX Table for TBS Unify Pro32 DP 5.8GHz VTX (MMCX) -with standard channels available !!! make sure to use the correct broad band antenna to avoid damaging the vtx !!! (max power set to 65db as it will force the vtx to ouput max power) | # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945 vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 RACE_LOW L FACTORY 5362 5399 5436 5473 5510 5547 5584 5621 vtxtable powerlevels 8 vtxtable powervalues 10 14 20 23 26 27 30 65 vtxtable powerlabels 10 25 100 200 400 500 999 3k |
The PRO32 DP does not come with any channels or power levels locked!
Important!
The Unify Pro32 DP is a high power video transmitter. Operating it with bad quality antennas, or without antennas on higher power levels will inevitably brick the unit - faster than you would expect. It is therefore important to use the wideband function only with wideband antennas on the highest power settings!
For more details, please refer to the TBS Unify Pro32 DP VTX User Manual.
TBS Unify Pro32 DP 5.8GHz VTX (MMCX) Specification
Video System | Analog |
Min Input Voltage | 6V |
Max Input Voltage | 25V |
Min Frequency Band | 4990MHz |
Max Frequency Band | 6030MHz |
Output Power | 10 / 25 / 100 / 200 / 400 / 500 / 999 / MAX mW |
Power Consumption | 25mW: 90mA - 130mA (22V - 14.8V) |
Range | 6km (omni) |
Video Format | NTSC, PAL |
Video Input Impedance | 75Ohm |
Audio | No |
Pit Mode | Yes |
SmartAudio | V2.1 |
OSD Support | Yes |
Antenna Connector | MMCX |
Port connector | JST-GH 7pin |
Firmware Upgrade | No |
Size | 37 x 28 x 10mm |
Weight | 8.7g |

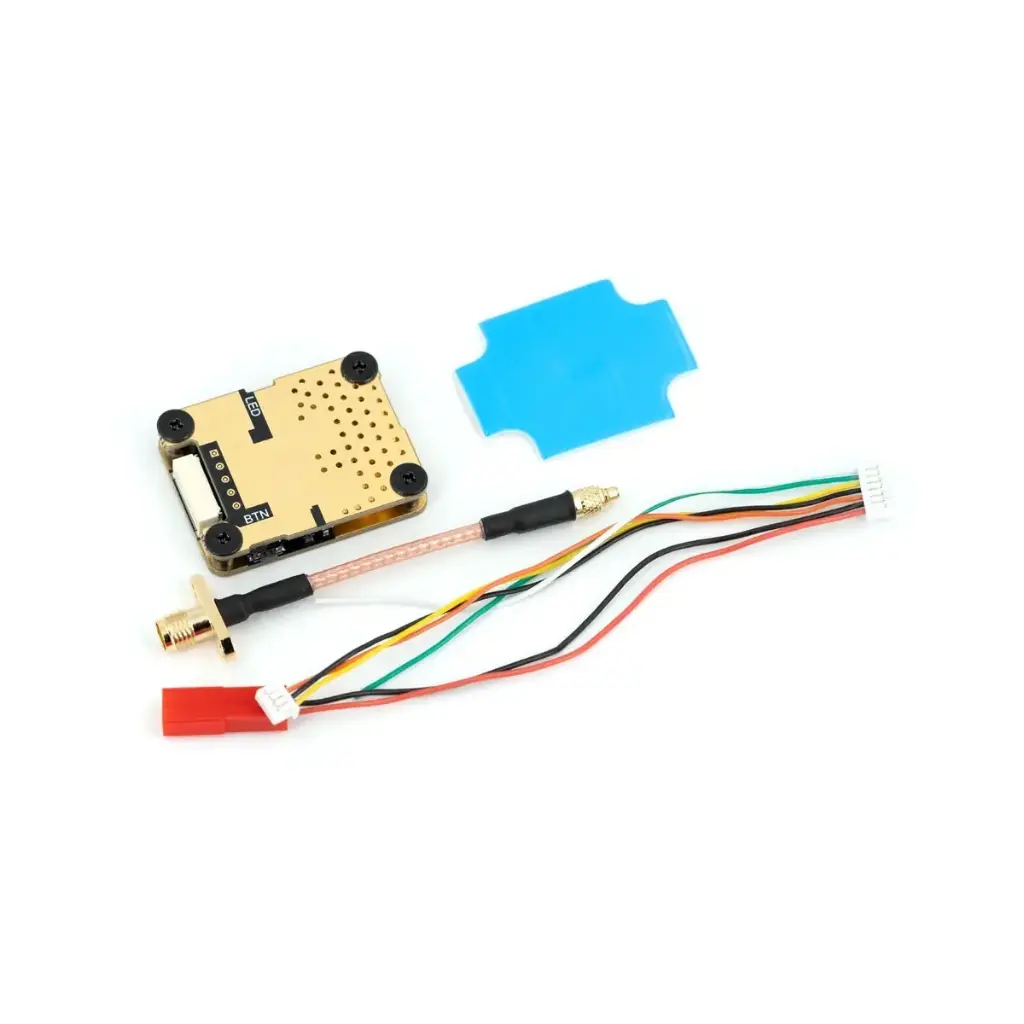

TBS Unify Pro32 DP 5.8GHz VTX (MMCX) Package Includes
- 1x TBS Unify Pro32 DP 5G8 HV Video Transmitter
- 1x Silicone Cable (Ends Pre-Tinned)
- 1x MMCX to SMA Pigtail
- 1x Heat Transfer Tape for Easy FPV Drone Mounting
