Optical flow sensor HereFlow

https://www.bzbuas.com/web/image/product.template/470/image_1920?unique=6e0ac43

HereFlow brings optical flow, a lidar and an IMU to your drone on a board no bigger than a finger. It watches the ground and the distance below, helps with precise landings and fits under almost any frame without taking up space. One CAN cable is all it needs, and the whole setup in Mission Planner takes just a few parameters, so it is ready to fly in no time.

405.69 zł 405.69 PLN VAT Excluded
405.69 zł VAT Excluded
Price on request

    This combination does not exist.

    Optical flow sensor HereFlow — Three Sensors on a Finger-Sized Board

    HereFlow from CubePilot puts an optical flow camera, a lidar and a 6D IMU (ICM20602) on one board measuring only 28.8x9.5mm. The flow camera sees the ground from 80mm up, has a 42° field of view and follows movement up to 7.4rad/s. The lidar is a power efficient time-of-flight range finder with ST FlightSense technology. Within 2m it measures the distance in 5ms, with ±3% accuracy, and the result does not depend on the colour or reflectivity of the surface. HereFlow talks to the flight controller over CAN and can sit on any node of the CAN bus without noise problems. It is powered with 5V, works from -20 to 70°C and is set up in ArduPilot through Mission Planner. A CAN cable is included.

    Orders exceeding current stock levels will be fulfilled within 10 weeks

    Optical flow sensor HereFlow Key Features

    01
    Finger-Sized

    It measures only 28.8x9.5mm. You can fit it almost anywhere under the drone without taking much space.

    02
    Three Sensors in One

    An optical flow camera, a lidar and an IMU on one board. One module and one cable instead of three.

    03
    Anywhere on the CAN Bus

    It connects over CAN and can sit on any node of the bus without noise problems.

    04
    Help with Precision Landing

    CubePilot added the lidar because it is very useful for detecting the moment of a precise landing.

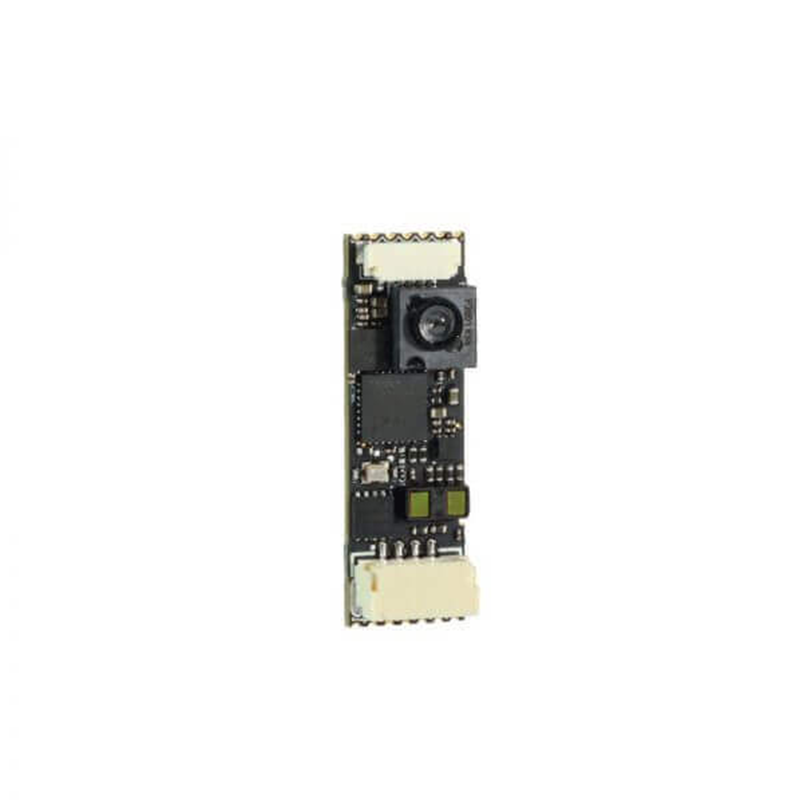

    Optical flow sensor HereFlow board with the IMU, optical flow sensor and lidar

    What Is on the Optical flow sensor HereFlow Board

    Optical Flow Sensor

    Watches the ground and measures how the drone moves over it. It works from 80mm up and needs at least 60lux of light.

    Lidar

    Measures the distance to the ground up to 2m, up to 50 times per second, with an invisible 940nm Class 1 emitter.

    6D IMU (ICM20602)

    A built-in inertial module that measures the movement of the board itself.

    Setting Up the Optical flow sensor HereFlow in ArduPilot

    CubePilot describes the setup in Mission Planner, with the flight controller connected to the computer over USB. All parameters are in the Full Parameter List.

    1. CAN
    CAN_P1_DRIVER1turns on CAN
    2. Range Finder
    RNGFND_TYPE24turns on the range finder
    RNGFND_MAX_CM200maximum distance
    RNGFND_MIN_CM5minimum distance
    3. Optical Flow
    FLOW_TYPE6turns on the flow camera

    Click Write Params, then in Flight Data > Actions choose PREFLIGHT_REBOOT_SHUTDOWN and Do Action to restart the controller.

    4. Check

    In the Status tab, change the height of the drone and watch sonarrange. Then move the drone and watch opt_m_x, opt_m_y, opt_x and opt_y. If the values do not change, check the parameters or restart the controller.

    Optical flow sensor HereFlow Manufacturer Notes
    • The built-in lidar is not suitable for measuring height outdoors above 0.5m, or indoors above 2m.
    • For accurate optical flow navigation CubePilot recommends a separate lidar, such as the Lightware SF11B or a similar one.
    • Without a range finder you can use the FLOWHOLD mode in ArduCopter, which holds position with optical flow.

    Installing the Optical flow sensor HereFlow

    CAN Cable

    Connect the CAN port of the module to the flight controller with the 4-pin CAN cable.

    Y Axis to the Nose

    Point the Y axis of HereFlow towards the nose of the aircraft.

    Camera Facing the Ground

    Stick the module to the bottom of the drone with 3M tape, or with a soft sticker for slight vibration isolation.

    Nothing Under the Module

    The bottom of the module must stay clear, otherwise the measurements are affected.

    Hold It by the Edge

    Do not touch the electronic components on the board. Hold it by the edge during installation.

    Other CubePilot Products

    More CubePilot devices for your drone.

    HerePro

    GNSS RTK

    HerePro

    Multi-band RTK navigation for precise missions.

    Cube ID

    Remote ID

    Cube ID

    A tiny Remote ID module that broadcasts your drone's ID.

    Herelink Controller Unit

    Link

    Herelink Controller Unit

    Remote controller, ground station and HD video link in one.

    CubeLAN 8-Port Switch

    Ethernet

    CubeLAN 8-Port Switch

    An 8-port network switch for devices on the drone.

    CubePilot Documentation

    The documentation for this product is on the manufacturer's website.

    docs.cubepilot.org/flow-senor/here-flow

    Optical flow sensor HereFlow Specification

    Manufacturer

    CubePilot

    Manufacturer Code

    HX4-06076

    Size

    28.8x9.5mm

    Interface

    CAN

    Power Supply

    5V

    Operating Temperature

    -20 to 70°C

    IMU

    6D, ICM20602

    Optical Flow Range

    80mm to infinity

    Optical Flow Field of View

    42°

    Maximum Movement Speed

    7.4rad/s

    Minimum Illumination

    over 60lux

    Lidar Measuring Frequency

    up to 50Hz

    Lidar Field of View

    27°

    Lidar Maximum Distance

    2m

    Lidar Accuracy

    ±3%

    Infrared Emitter

    940nm, invisible, Class 1

    Optical flow sensor HereFlow Package Includes

    • 1x HereFlow
    • 1x CAN Cable
