The Cube ID - CAN gives your drone a clear identity in the air and plugs straight into the CAN bus of The Cube. The tiny module broadcasts who is flying and where, so anyone nearby can check the drone on a phone and you can see it on the DroneShare map with no subscription. Its antenna can sit away from the propellers, and firmware updates come straight from Mission Planner.

337.40 zł 337.4 PLN VAT Excluded
337.40 zł VAT Excluded
Price on request

    This combination does not exist.

    Cube ID - CAN — Remote ID on Every Flight

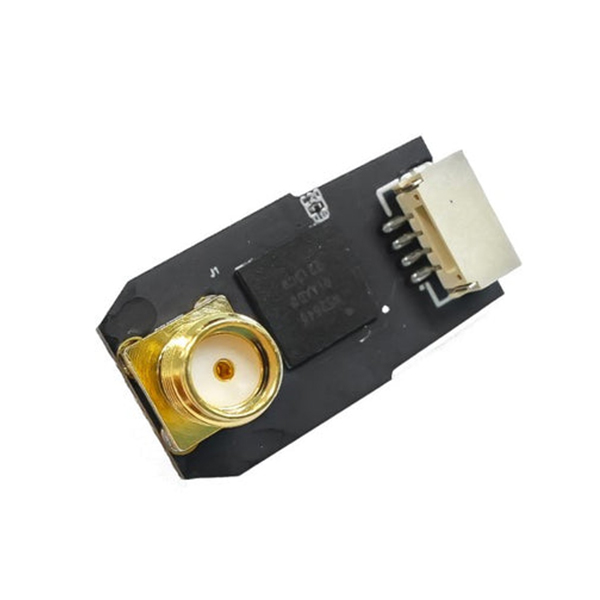

    The Cube ID - CAN is a small Remote ID module from CubePilot that supports both CAN and serial connections. In flight it broadcasts identification and flight data of the drone over Bluetooth 5.2, using a Nordic NRF52840 chip in the 2402-2480MHz band. It connects to a CAN port of The Cube with the 4-pin CAN cable and is powered with 5V. The antenna screws onto an SMA connector on the board. It works with ArduPilot firmware that has OpenDroneID enabled. The broadcast data, such as the UAS ID, operator ID and position, can be read in the DroneScanner and OpenDroneID phone apps and on CubePilot's DroneShare website, with no extra subscription fees. The module is FCC and CE certified, works from -40 to 85°C, measures 25x13.75x3.5mm and weighs 10g with the cable and antenna. A serial-only version is available as a separate product, the Cube ID.

    Cube ID - CAN Key Features

    01
    CAN and Serial in One Module

    It talks to The Cube over CAN, and it also supports a serial connection. One module fits both kinds of setup.

    02
    Antenna on an SMA Connector

    The antenna is on a cable with an SMA connector. You can lead it to a spot away from the propellers.

    03
    DroneShare Without a Subscription

    The data is also shown on CubePilot's DroneShare website. There are no extra subscription fees for this service.

    04
    Updates from Mission Planner

    Over CAN, Mission Planner finds the module and downloads its latest firmware by itself. No extra tools are needed.

    Cube ID - CAN on the DroneShare Map

    DroneShare shows the drone on a map together with its UAS ID, operator ID, aircraft type and position. It is an easy way to check that the module broadcasts the right data before a mission.

    Cube ID - CAN data on the DroneShare map

    Setting Up the Cube ID - CAN in ArduPilot

    CubePilot describes the setup in Mission Planner, with The Cube connected to the computer over USB.

    1. Firmware with OpenDroneID

    Use ArduPilot firmware with OpenDroneID enabled. If the DID_* parameters are missing, create a build at custom.ardupilot.org with Enable OpenDroneID ticked under Ident and install it with Load custom firmware.

    2. Parameters for CAN
    DID_ENABLE1turns on OpenDroneID
    CAN_P1_DRIVER1turns on CAN
    DID_CANDRIVER1CAN port with the module
    DID_MAVPORT-1when using DroneCAN
    3. Mission Planner
    • Drone ID: UAS ID, UAS ID Type, UA Type
    • Operations: Operator ID, Oper ID Type, Self ID Desc, Self ID Type

    Then check the drone in the DroneScanner (iOS) or OpenDroneID (Android) app.

    4. Module Firmware Update

    Go to Setup > Optional Hardware > DroneCAN/UAVCAN and connect on the CAN port you use. The module shows up as com.cubepilot.cubeid. Choose Menu > Update and Mission Planner downloads the latest firmware itself.

    Installing and Connecting the Cube ID - CAN

    CAN Connector Pinout
    PinSignalWire Colour
    1VCC_5Vred
    2CAN_Hred
    3CAN_Lblack
    4GNDblack
    Installation Tips

    Cable to The Cube

    Use the 4-pin CAN cable to connect the module to a CAN port of The Cube.

    Mounting

    Attach it with a regular adhesive sticker, or with a soft sticker for light vibration isolation.

    Antenna Away from the Propeller

    Keep the antenna away from the propeller.

    Distance from the Body

    According to the FCC statement, keep at least 20cm between the antenna and your body during operation.

    Other CubePilot Products

    More CubePilot devices for your drone.

    Here4 Multiband RTK GNSS

    GNSS RTK

    Here4 Multiband RTK GNSS

    Dual-band RTK navigation with centimetre-level accuracy.

    Cube ID

    Remote ID Serial

    Cube ID

    The Cube ID version for a serial (TELEM) port.

    HerePro

    GNSS RTK

    HerePro

    Multi-band RTK navigation for precise missions.

    Herelink Controller Unit

    Link

    Herelink Controller Unit

    Remote controller, ground station and HD video link in one.

    CubePilot Documentation

    The documentation for this product is on the manufacturer's website.

    docs.cubepilot.org/cube-id/cube-id

    Cube ID - CAN Specification

    Manufacturer

    CubePilot

    Manufacturer Code

    HX4-06253

    Version

    CAN

    Bluetooth Chip

    Nordic NRF52840 (Bluetooth 5.2)

    Frequency

    2402-2480MHz

    Protocol

    CAN and Serial

    Antenna Connector

    SMA

    Power Supply

    5V

    Operating Temperature

    -40 to 85°C

    Certification

    FCC, CE

    Dimensions

    25x13.75x3.5mm

    Weight

    10g (with cable and antenna)

    Cube ID - CAN Package Includes

    • 1x Cube ID CAN
    • 1x Cube ID to GHR-6 Cable
    • 1x CAN Cable
    • 1x SMA Antenna
    Cube ID - CAN package contents
