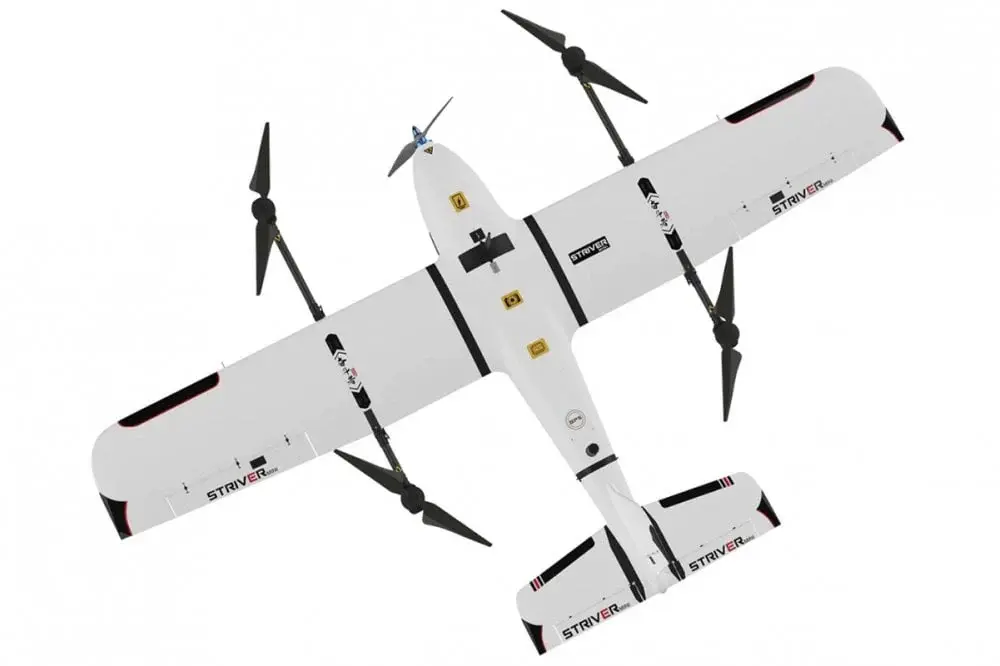

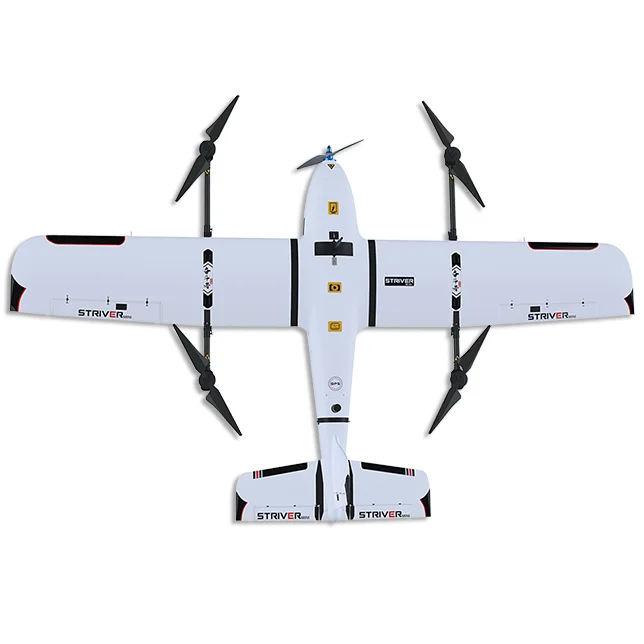

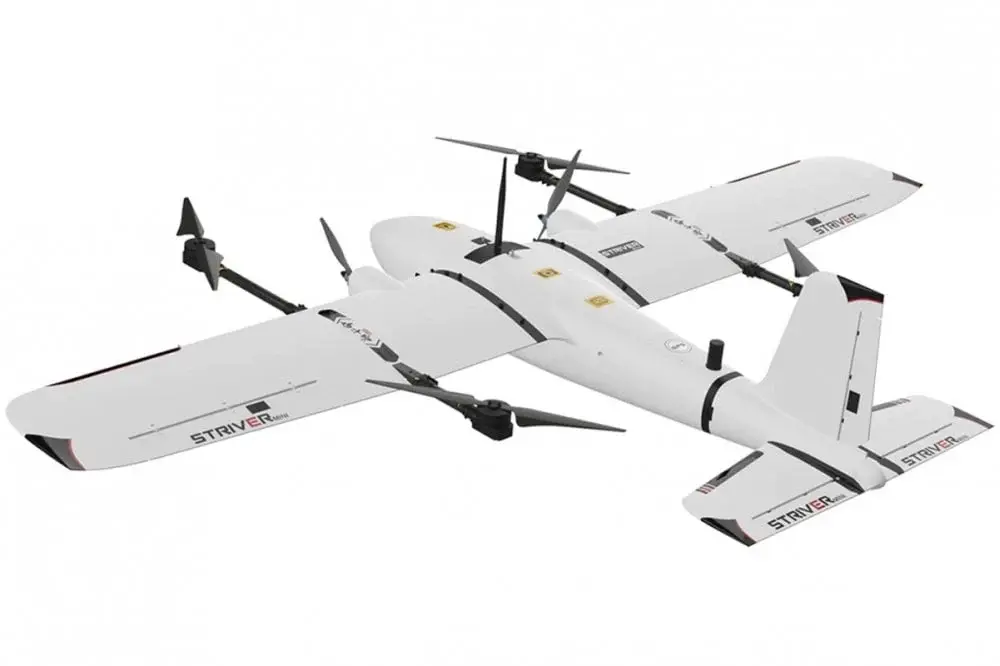

Striver mini 2100mm VTOL
Striver mini 2100mm VTOL
Frequently asked questions - Striver mini 2100mm VTOL
No. Striver mini 2100mm VTOL requires assembly, avionics integration, configuration, calibration and flight testing. The KIT version also requires the complete propulsion and servo system, while the PNP version includes the documented power package but still lacks the autopilot, navigation system, battery, RC equipment and telemetry.
Striver mini 2100mm VTOL KIT contains the airframe and installation components, while the current documented PNP package additionally includes the 4+1 propulsion system, ESCs, propellers, five servos, UBEC and wiring components. Neither version is a complete ready-to-fly system.
Striver mini 2100mm VTOL can be integrated for mapping, land and engineering surveys, precision agriculture, planning and construction documentation, and environmental or ecological monitoring. The required camera, sensor, autopilot and software must be selected separately for the intended mission.
Striver mini 2100mm VTOL does not have one universally guaranteed battery for every configuration. The manufacturer’s published endurance test used a 6S 22000mAh battery, but the final pack must be selected according to its mass, dimensions, connector, discharge capability, propulsion system and the 7.5kg maximum take-off weight.
The flight time of Striver mini 2100mm VTOL depends on the complete configuration. Makeflyeasy reports 112 minutes in a test with a 600g payload, a 6S 22000mAh battery, a 7.1kg take-off weight, a speed of 19m/s and a test altitude of 500m; this result is not a guarantee for every aircraft.
Yes. Striver mini 2100mm VTOL has a dedicated page in the ArduPilot Plane documentation, and ArduPilot supports QuadPlane aircraft combining fixed-wing cruise with multicopter-style vertical flight. The aircraft still requires a suitable flight controller and correct QuadPlane configuration and tuning.
Striver mini 2100mm VTOL Specifications
Model | Makeflyeasy Striver Mini VTOL |
Material | EPO, EVA, Carbon Fibre, PC, Engineering Plastics |
Wingspan | 2100mm |
VTOL Arm Length | 744mm |
Fuselage Height | 156mm |
Fuselage Length | 1200mm |
Take-off Altitude | < 3000m |
Ceiling Altitude | < 4500m |
Wind Resistance | Level 5 (Normal Operation) |
Wing Area | 59dm² |
Max Payload | 1kg |
MTOM | 7.5kg |
Take-off Mode | VTOL |
Cruising Speed | 18 - 21m/s |
Stall Speed | 10m/s |
Transport Case Size | 1.208m x 0.35m x 0.48m |
Striver mini 2100mm VTOL (KIT Version) Package Includes
- EPO Parts
- 1x Left Wing Panel
- 1x Right Wing Panel
- 2x Horizontal Empennage
- 1x Vertical Empennage Parts
- 1x Left Fuselage
- 1x Right Fuselage
- 1x Cabin Cover Parts
- 2x Wing Motor Mount
- Carbon Tube Parts
- 1x Fuselage Supporting Carbon Tube (14mm x 12mm x 260mm)
- 1x Fuselage Supporting Carbon Tube (12mm x 10mm x 260mm)
- 1x Fuselage Fin Carbon Tube (16mm x 14mm x 100mm)
- 1x Tail Fin Carbon Tube (14mm x 12mm x 200mm)
- 1x Horizontal Empennage Carbon Tube (8mm x 6mm x 97.4mm)
- Metal Parts
- 4x Metal Hook
- 8x Metal Latching Hook
- Plastic Parts
- 2x Wing Connecting Part
- 2x Tail Connecting Part
- 3x Servo Mounting Set
- 3x Control Horn
- 1x Battery Fixing Board
- 2x Antenna Fixing Board
- 1x Fuselage Connecting Part
- 1x Cabin Cover Fixing Board (GPS Cabin)
- 1x Power Distribution Compartment
- 14x Stud
- 2x Fuselage Carbon Tube Reinforcement
- 2x Fuselage Wire Plate
- 1x Nose ESC Hatch Cover
- 1x Cruise Motor Mount
- 2x Wing Hatch Cover
- 2x Wing ESC Hatch Cover
- 2x Wing Wiring Hatch Cover
- 2x Wing Servo Cover
- 1x Fuselage Tail Support
- VTOL Parts
- 1x Left and Right Detachable Folding VTOL Arm Set
- 4x VTOL Motor Mount
- 4x VTOL Arm Fastener
- Wooden Parts
- 1x Head Reinforcement Plate
- 1x Fuselage Tail Joint Reinforcement Set
- 1x Parachute Hatch Cover Plate
- 1x Parachute Servo Mount
- 2x Wing Motor Mount Reinforcement
- 1x GPS Mounting Board
- EVA Parts
- 1x Battery Compartment Cushion
- Other Fittings (Hardware & Accessories)
- 10x Round Head Flat Tail Screw (M2*4)
- 70x Round Head Flat Tail Screw (M2*8)
- 8x Round Head Flat Tail Screw (M2*10)
- 22x Gasket Screw (M2.6*8)
- 10x Socket Head Cap Screw (M3*10)
- 6x Metal Hanger (For Parachute and Centre of Gravity Measurement)
- 14x Plastic Stud
- 32x Hexagonal Nylon Stud
- 2x Horizontal Tail Drive Stud (4.2-M2*8)
- 3x Button Head Screw (M2*10) (For Horizontal Tail)
- 2x Horizontal Tail Transmission Leg
- 12x Heat Shrink Tubing (5mm x 15mm)
- 60x Heat Shrink Tubing (2mm x 15mm)
- 6x Ball Head
- 3x Link Rod
- 7x Button Head Screw (M2*10) (For Link Rods)
- 7x Block Nut (M2)
- 2x Plastic Latch
- 15x Hinge
- 2x High-Current Connector (9+2)
- 2x Magic Tie Strap (For Battery Fixing Board)
- 1x Red Silicone Wire (14 AWG, 1.2m)
- 1x Black Silicone Wire (14 AWG, 1.2m)
- 7x Single-Head Servo Wire (Male, 30cm) (For Tail Section)
- 7x Single-Head Servo Wire (Female, 33cm) (For Fuselage Section)
Striver mini 2100mm VTOL (PNP Version) Package Includes
Includes everything from the standard VTOL KIT Version, plus the following power and electronics package:
- 1x X4120 KV430 Motor
- 4x M4112 KV460 Motor
- 2x 15-Inch CW/CCW Propeller Set
- 1x 16-Inch Electric Propeller
- 1x MFE6100 6S 100A ESC
- 4x MFE650 6S 50A ESC
- 5x MFE3054 Servo
- 1x UBEC 14S 10A
