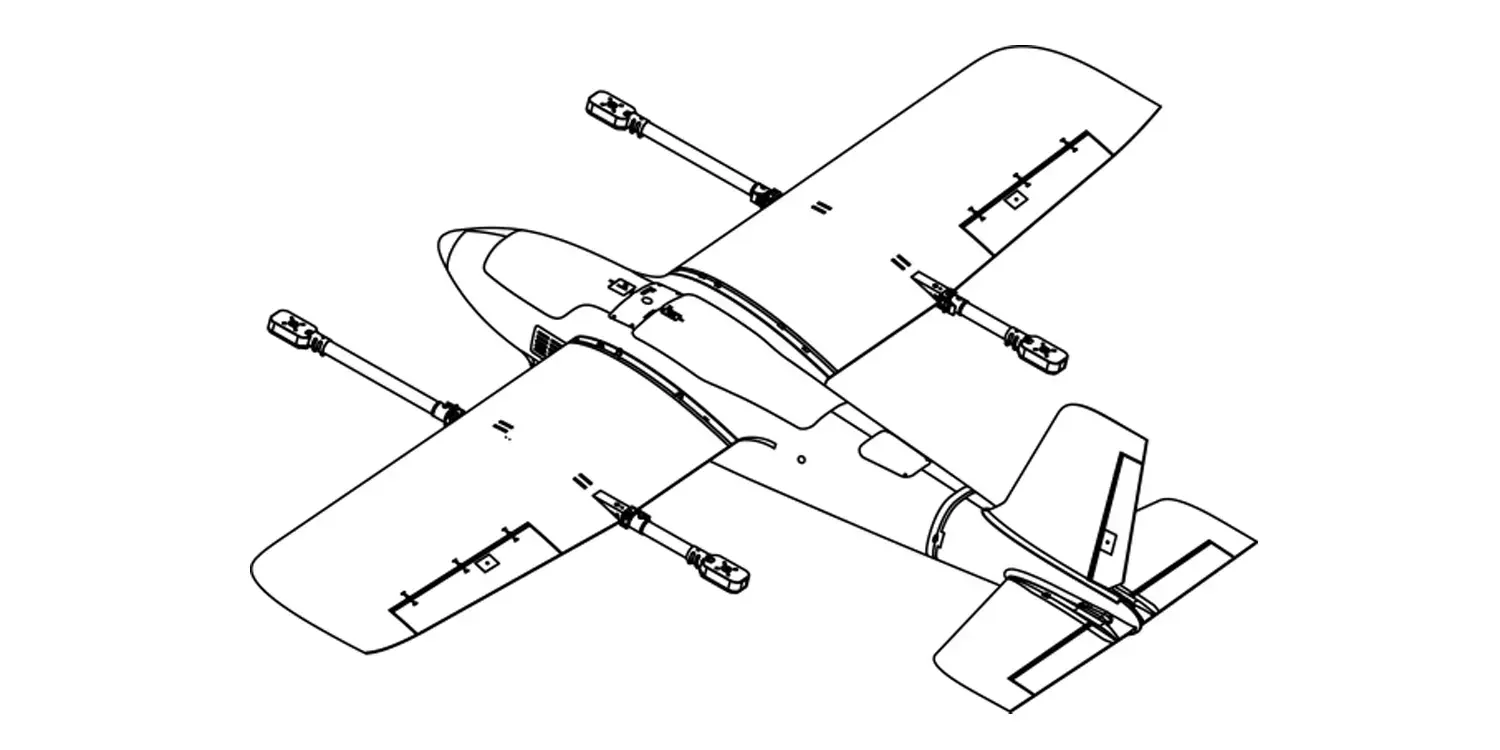

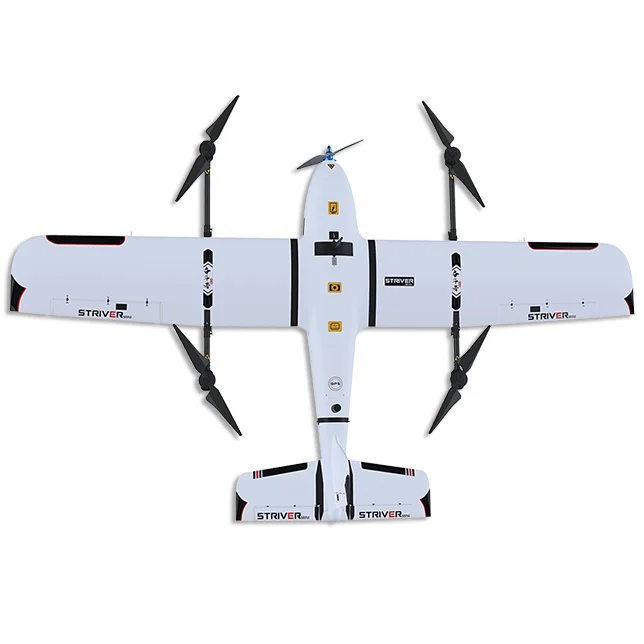

Striver mini 2100mm VTOL - Flexible VTOL Platform for Mapping and Mission Integration

Striver mini 2100mm VTOL combines vertical take-off and landing with efficient fixed-wing cruise. Its modular EPO airframe can be disassembled without tools, making a 2100mm platform significantly easier to transport and prepare in the field. A dedicated payload compartment and maximum payload of 1kg provide room for cameras, sensors and other correctly integrated mission equipment, while KIT and PNP options let the integrator choose how much of the propulsion and electronics package should already be included.

What You Need to Complete the PNP Version

The PNP version already includes the airframe, motors, ESCs, propellers, servos and UBEC, but it is still not a complete ready-to-fly UAV. To finish the aircraft, you need to add the flight-control and navigation system, avionics power management, RC control or another command link, telemetry and a suitable flight battery.

The products below are BZB UAS recommendations and provide a practical starting point. They are not the only possible solutions - other compatible components may be used when correctly selected for the complete configuration.

The Cube Orange+ Standard Set (ADS-B Carrier Board)

A practical autopilot foundation for an ArduPilot-based fixed-wing VTOL configuration. The set includes The Cube Orange+, an ADS-B carrier board and a power module, and provides CAN, serial and PWM interfaces useful when building the complete avionics system.

Here4 Multiband RTK GNSS

A DroneCAN GNSS module with RTK capability that can provide navigation data for the autopilot and is particularly useful in configurations intended for precise positioning, mapping or surveying.

Matek Power Module PM12S-3

An option for building the avionics power and monitoring system. The final wiring architecture, voltage range, current measurement and connections must be checked against the selected autopilot, battery and complete electrical system. The product is currently listed in the BZB UAS offer.

Herelink 1.1 – HD Video Transmission System

Combines RC control, ground-station functionality, telemetry and HD video transmission in one system designed for use with Cube-based ArduPilot or PX4 configurations. It can simplify the communication architecture when video transmission is also required.

RFD868x-EU Set

An alternative approach for projects that require a dedicated bidirectional telemetry link. It can be used as part of a separate telemetry architecture rather than treating Herelink and RFD868x-EU as components that must always be installed together.

 The manufacturer’s published Striver mini endurance configuration uses a 6S 22000mAh battery, but this does not make every 6S 22Ah pack automatically suitable for the aircraft. The final battery must be checked for dimensions, mass, discharge capability, connector type, centre of gravity and the 7.5kg maximum take-off weight of the complete configuration.

The final selection should reflect the payload, expected endurance, communication system and complete power architecture. In particular, the battery, power module, connectors and wiring should be treated as one electrical system rather than selected independently.
