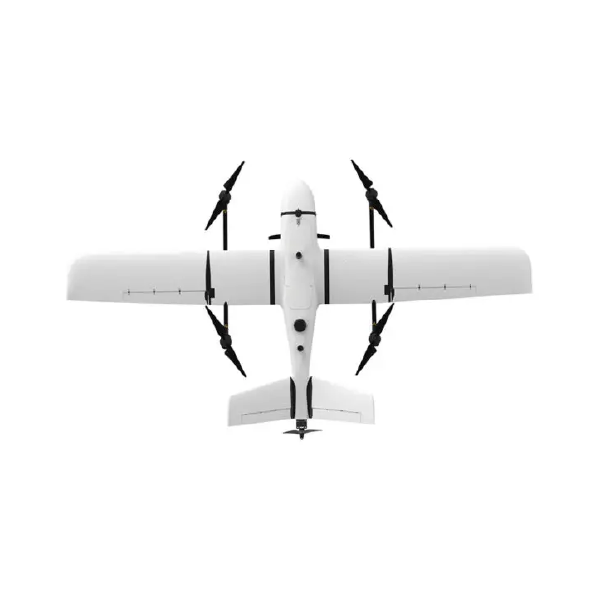

Hero 2180mm VTOL

Hero VTOL self-assembly kit. Be a hero and build your own professional VTOL (vertical take-off and landing) unmanned aerial vehicle. Don't be afraid of new technology and enter the world of DRONES.

3,658.54 zł VAT Excluded

VERSION
- KIT
- PNP

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Hero 2180mm VTOL – Long-Range Mapping & Surveillance Drone

Hero VTOL is an unmanned vertical takeoff and landing aircraft with a wide range of applications. The fixed-wing aircraft has a span of 2180 mm. The nose of the ship is removable, allowing the drone to be retrofitted with an FPV camera kit or an optoelectronic head (for surface monitoring or terrain mapping).

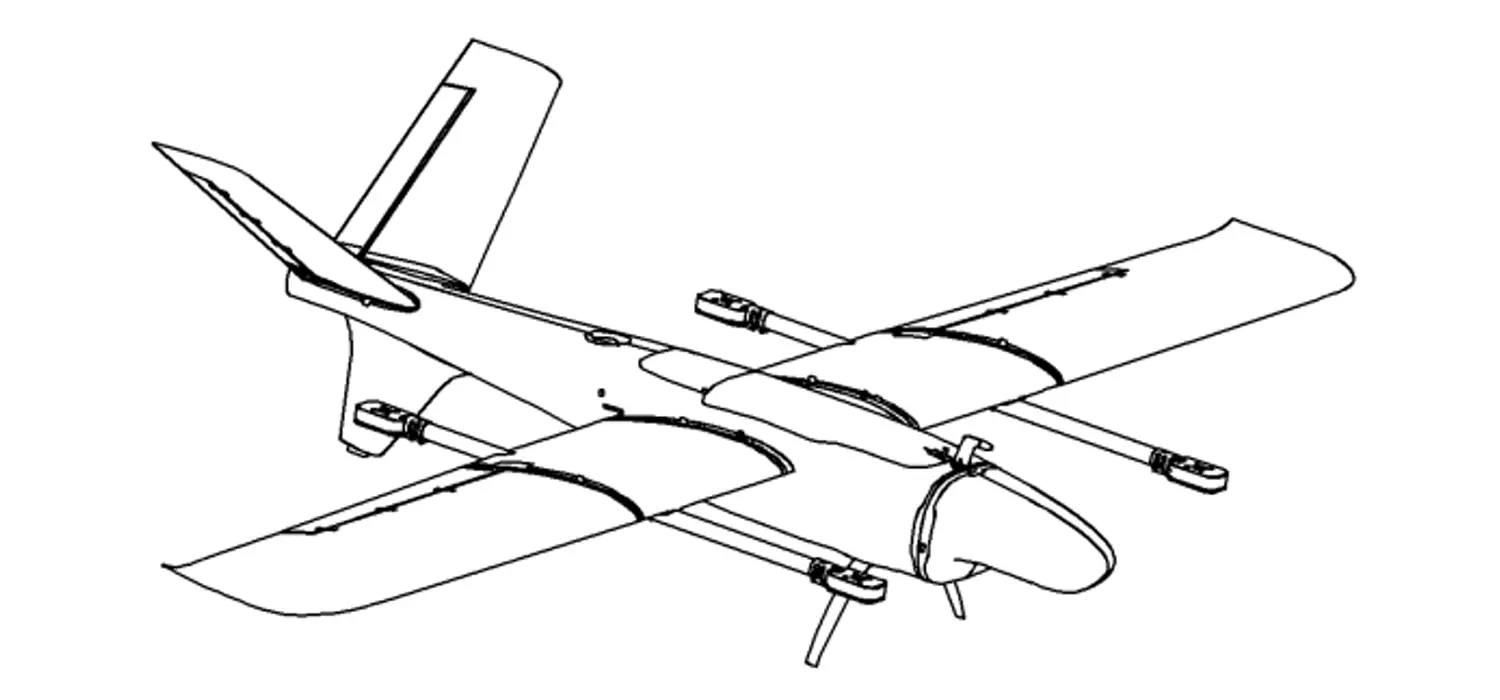

hero-2180mm-vtol-diy

EXAMPLE APPLICATION AREAS

topographic mapping,
Geodesy
civil engineering,
planning and construction,
landscape planning,
Digital city
precision agriculture,
environmental monitoring

Remember this is a do-it-yourself kit!

SPECIFICATION

Material	EPO, carbon composity, ABS, Aerospace-grade aluminum
Wingspan	2180mm
VTOL arm length	755mm
Fuselage height	255mm
Fuselage length	1140mm
Wing area	53dm2
Max payload	1 kg
MTOM	7 kg
Take-off mode	VTOL
Cruising speed	17-22 m/s
Stall speed	12 m/s

Hero 2180mm VTOL (KIT) Package Includes

EPO Parts

1x Left wing panel
1x Right wing panel
1x Wingtip
1x Left fuselage
1x Right fuselage
1x Bonnet
1x Closed-type nose
1x Mounting-type nose
1x V-tail
1x Ventral fin
1x Lower cabin cover

Carbon Tube Parts

1x Fuselage supporting carbon tube (15.3*13*253.5mm)
1x Fuselage supporting carbon tube (13.3*11*253.5mm)
2x Horizontal tails carbon tube (8*6*45mm)
1x Undercarriage
4x VTOL boom

Metal Parts

2x Center of gravity suspension ring
11x Metal latching hook
4x Motor frame (VTOL motor mount)

Plastic Parts

2x Wings connecting part
2x Wing segment connector
2x Tails connecting part
2x Head Connector
1x Battery fixing board
2x Antenna fixing board
1x Airspeed pitot tube
14x Stud
2x Fuselage carbon tube reinforcement
2x Fuselage wire plate
1x ESC cover plate
1x Motor mounting mount (cruise motor)
1x Fuselage tail support

Wooden Parts

1x Head Reinforcement Plate
12x Hinge
2x Fuselage Tail Reinforcement Plate
2x Landing gear mounted support plate
1x Flight control module cover fixing plate
2x Monitor head reinforcement plate
1x Mounting plate
1x Flight controller plate
1x Lower cabin cover mount plate

Other Fittings (Hardware & Accessories)

20x Round head flat tail screw (M2*4)
40x Round head flat tail screw (M2*8)
15x Round head flat tail screw (M2*10)
30x Gasket screw (M2.6*8)
8x Socket head cap screw (M3*6)
2x Metal hanger (for parachute & CG measuring)
11x Latching hook (for parachute & CG measuring)
22x Plastic stud (one-word type)
14x Hexagon nylon stud
2x Horizontal tail drive stud (4.2-M2*8)
5x Button head screw (M2*10) (for tail section)
2x Transmission leg of the horizontal tail10x Heat shrink tubing (5mm*15mm)
40x Heat shrink tubing (2mm*15mm)
6x Ball head1x Ball link rods set
3x Link rod
7x Button head screw (M2*10) (for link rods)
7x Block nut (M2)
1x Plastic latch (for cabin/canopy)
12x Hinge2x High-current connector (7W2)
2x D-SUB connector (DB9P)
2x Magic tie strap (for battery fixing board)
1x Red 14 AWG Silicone wire (1.2M)
1x Black 14 AWG Silicone wire (1.2M)
7x Single head servo wire (male, 30cm) (for tail section)
7x Single head servo wire (female, 33cm) (for fuselage section)

Hero 2180mm VTOL (PNP) Package Includes

Includes everything from the standard VTOL KIT, plus the following power and electronics package:

1x X3520 KV500 motor
1x 6S 100A Brushless ESC
1x Propeller APC1510
4x M4112 - KV460 disc motor
4x 6S 50A Brushless ESC
2x Carbon Fibre Forward and Reverse Propeller Pairs 1555
4x Fixed Wing Servo 3054
1x 3S-14S UBEC 5.3V10A
1x Wing Terminal Blocks
1x PNP special wire kit
